6. Commissioning, operation
For the load cell, the channel D can calculate the result coming from a load cell connected as per the below scheme:
EN
Calculation is possible only when channel A is assigned for mV measurement (bridge signal) and channel B is assigned for V
generation, range 0 ... 20 V (bridge supply). Moreover channel A should not be set in error mode.
In this case, the following will be displayed:
42
TC
mA
V
mV
Hz/P
COM
Ω
RTD

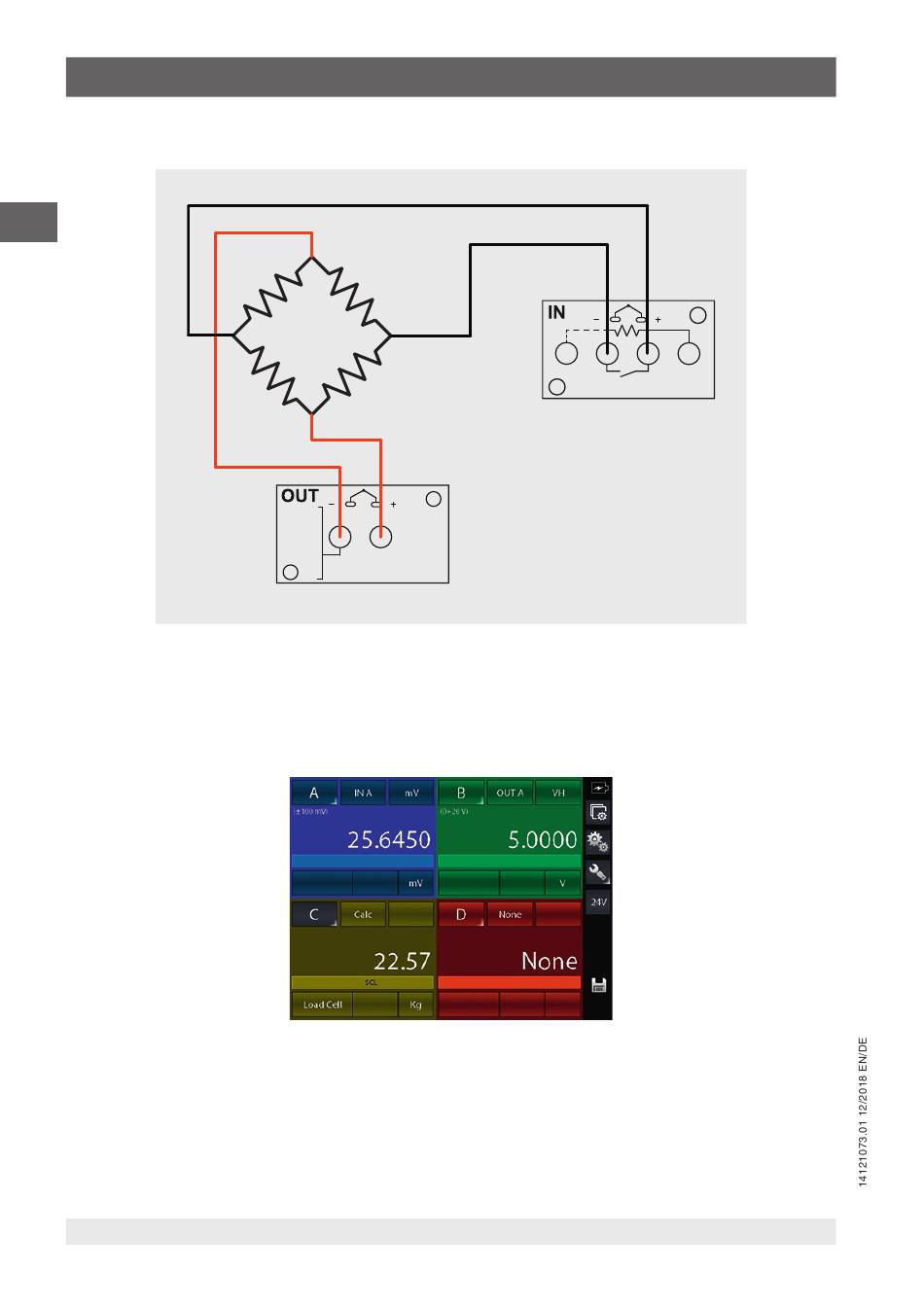

Fig. 46 - Load cell connection
Fig. 47 - calculation
4W
RTD-Ω
COM
V-mV-Hz/P
