6. Commissioning, operation

6.4 Setting channel, function, instrument

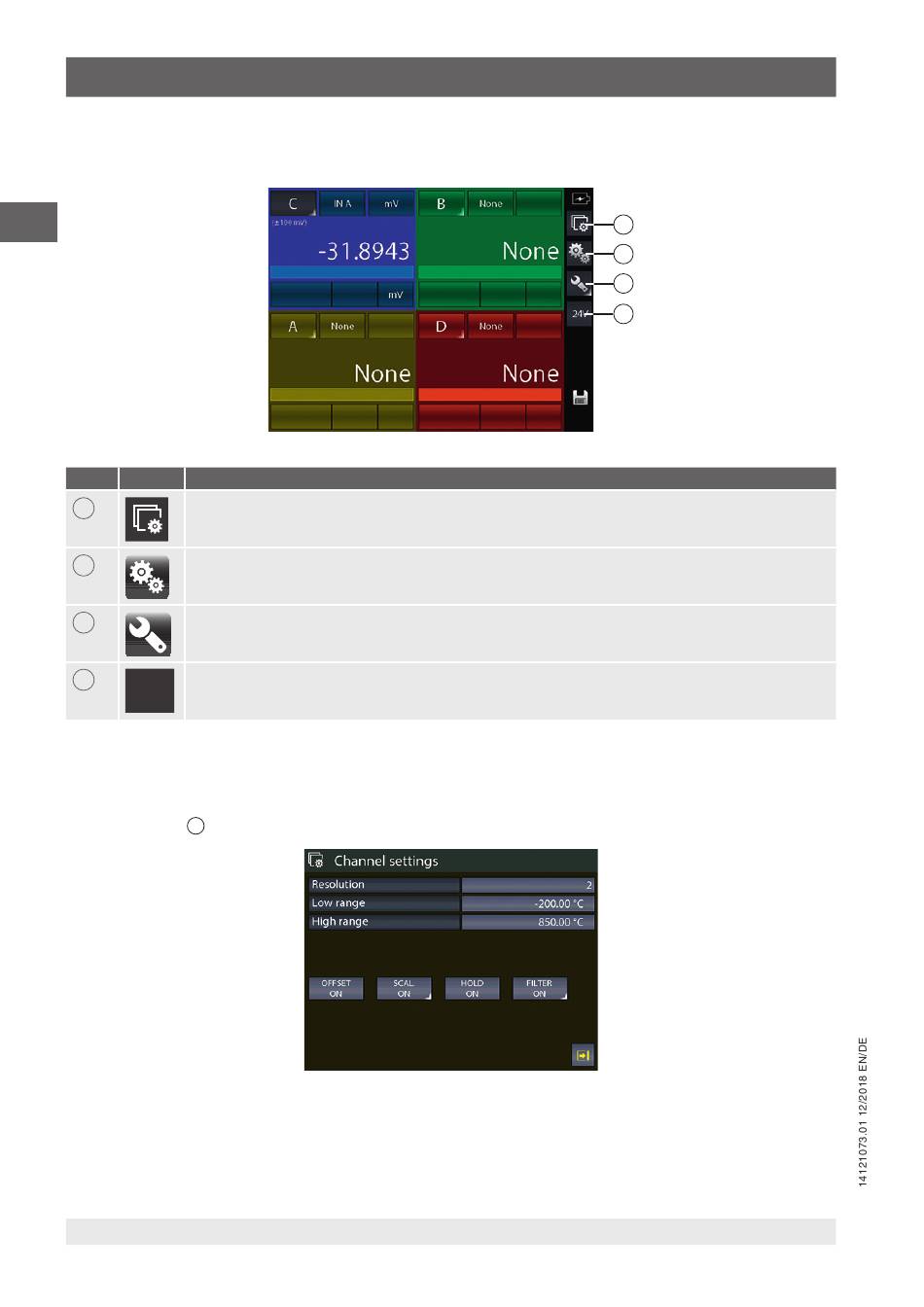

All settings can be performed by using the first three buttons on the right side of the main screen from the top to the bottom:
EN
Pos. Symbol Meaning
4

Channel setting

5
Function setting
6
Instrument setting (press and button pressed for some seconds this button to enter the status page)
7
24V
Switching button: it enable/disable the DC 24 V current supply for external instrumentation
6.4.1 Channel setting
A dedicated screen allows to configure the instrument channel: this screen contains dynamic elements, so they can differ
depending on the module of the channel. If, for example, the channel is configured for thermoresistance measurements, by
pressing the button
4
48
[Chanel setting] the screen could be show the following parameters:
Fig. 56 - "IN" Channel setting
4
5
6
7
