6. Commissioning, operation
The next step is the selection of one of the output modules OUT A or OUT B (if present):
EN

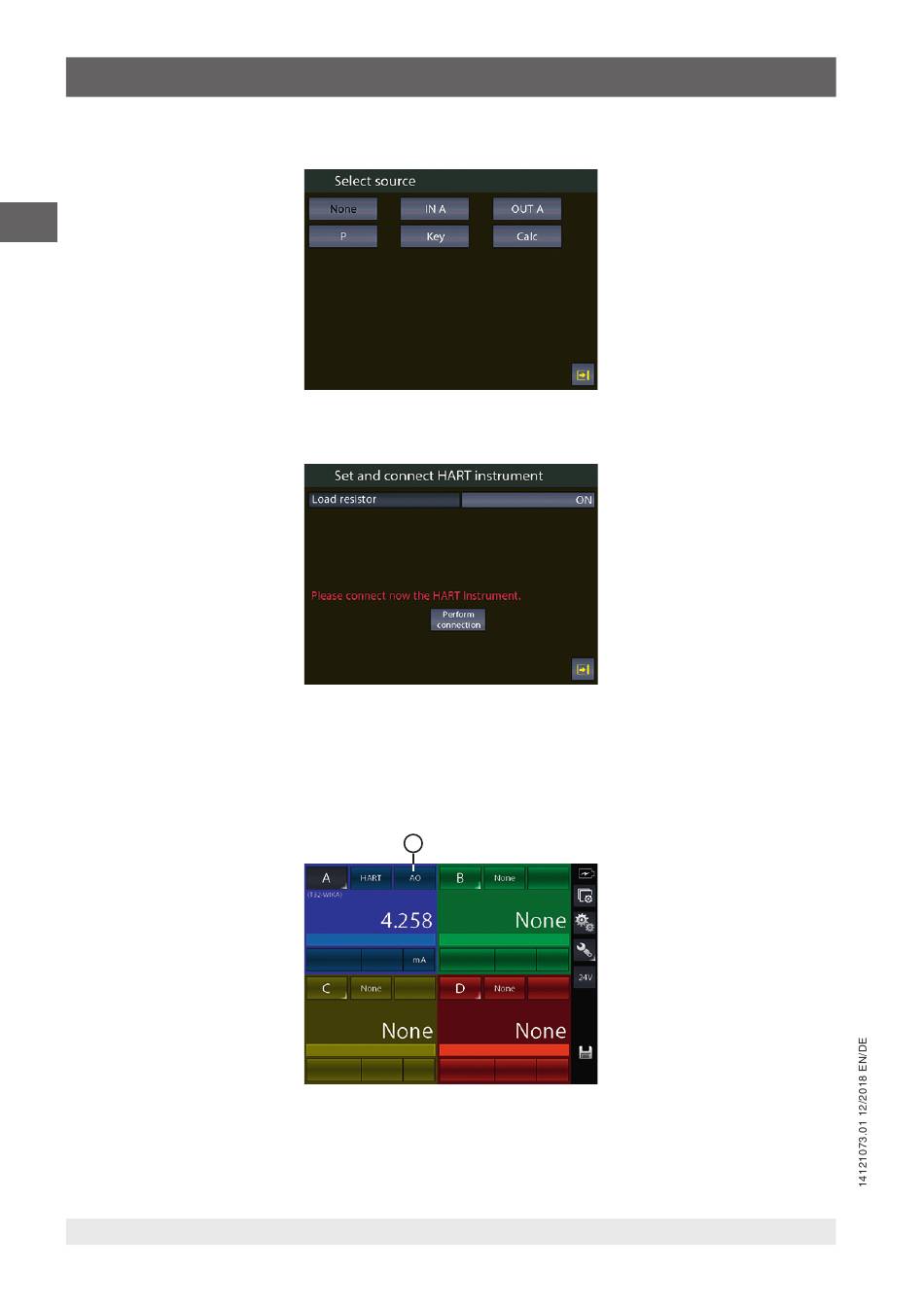

Fig. 50 - Selecting the source "HART"
®
Select HART for HART measurement:
®
Fig. 51 - Connecting a HART instrument
®
Here the user can choose if enable the internal module 250 Ω resistor (ON or OFF), needful for HART communication (it can
be connected externally or can be supplied by the calibrator).
®
Before pressing [Perform connection] be sure to already make the proper connections to the HART instrument
Press [Perform connection] and, after few seconds, if no error is shown the following main screen appears:
3
Fig. 52 - HART channel assigned
The main screen shows the HART AO (Analogic Output) value.
