6. Commissioning, operation
The following screen appears:
EN

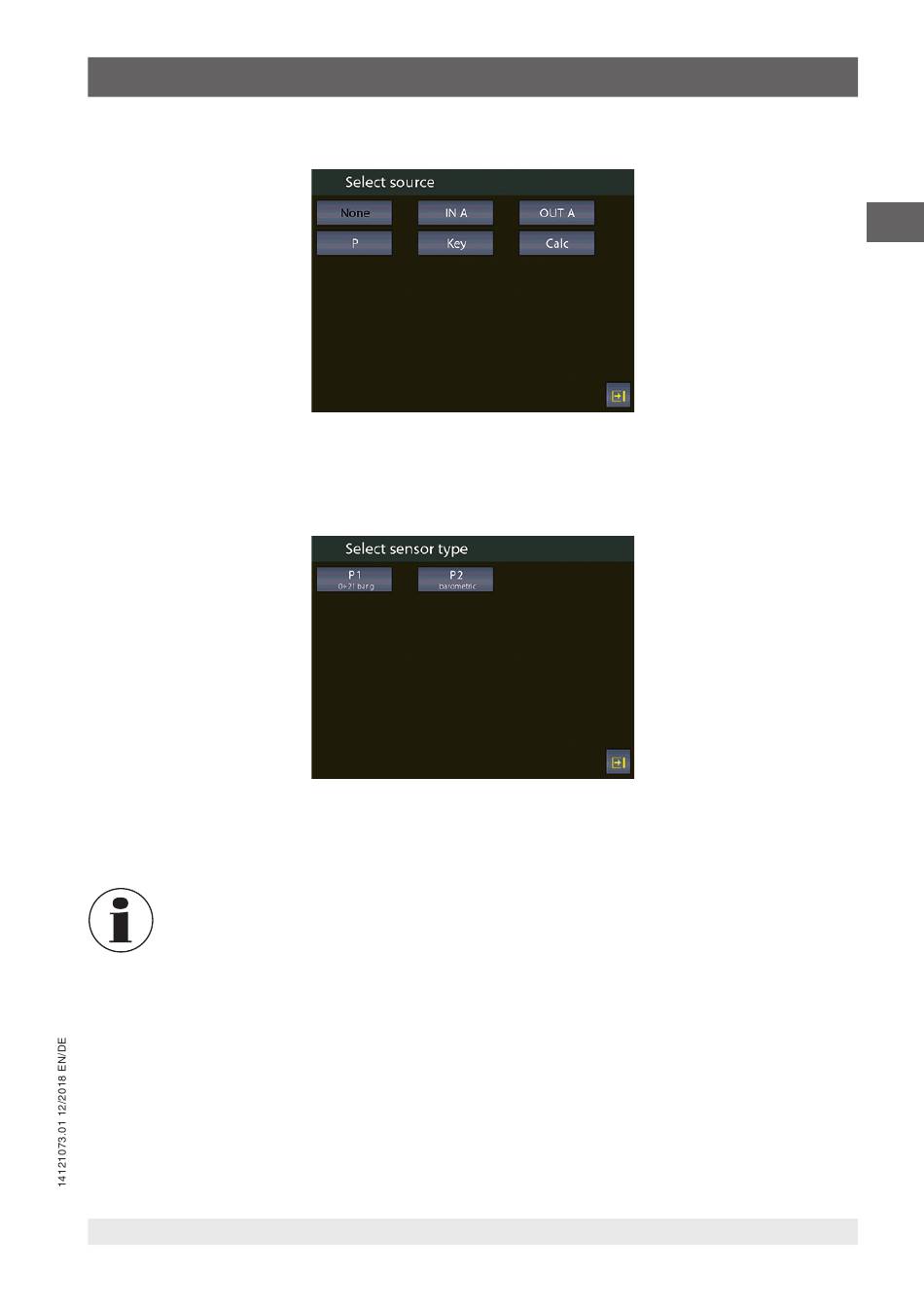

Fig. 24 - Selecting the source [P]
Automatically the program shows the following screen and it remains in this position until the operator points out what type of
parameter he desires to associate to a selected channel, for example to the Channel A. In this case press [P] for pressure.
Fig. 25 - Pressure parameter selection
The Pascal ET can be equipped with up to two pressure modules and each of them can handle up to three pressure sensors,
two internal sensors and one external one with standard accuracy.
The shown list on the screen depends on the installed, mounted and connected number of sensors.
The sensor is identified by the measuring range and the measuring mode (g = gauge pressure or a = absolute pressure). This
information is displayed under the writing PE-1 (first external sensor) or PE-2 (second external sensor). See the figure above
as example.
