6. Commissioning, operation
The following screen appears (depending on the installed modules):
EN

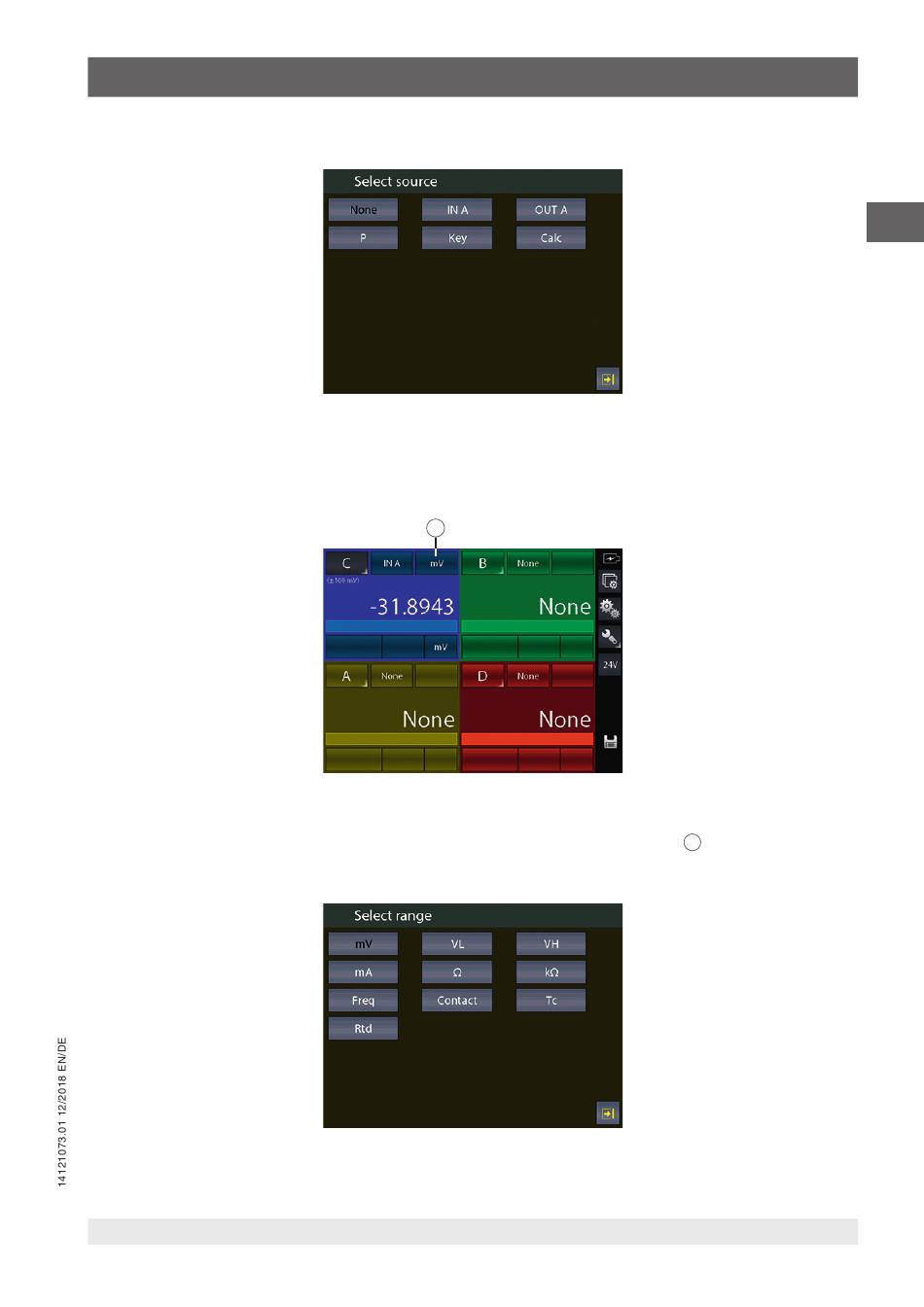

Fig. 15 - Source selection
As we need to measuring from the input, select the option [IN A]:
The screen will change as follows:
3
Fig. 16 - IN A selected
The calibrator sets / loads the selected option and load the last used unit for the module (in this case the last used measuring
unit was the mV measuring). To change the measuring unit in RTD press the button indicated with in the figure above:
3
The following screen appears:
Fig. 17 - Selecting the unit for module IN A
