6. Commissioning, operation
The calibrator is now set for the module CALC and it preset the last used calculation type for this module (in this case the last
used calculation type was ChA+ChB).
Press the button indicated with
Here you can find:
Function Meaning
channel C or D displays the total value of the values displayed on channel A and B
ChA + ChB
channel C or D displays the difference value of the values displayed on channel A and B
ChA - ChB
channel C or D displays the ratio mV/V of the load cell
Load cell
CHA+CHB and CHA-CHB functions can be used only if channel A and B are set with the same values: same engineering unit,
same number of digits, no channel assigned with error indication.
Otherwise the Channel D will be displayed as:
WIKA operating instructions, model Pascal ET
in the picture previous to select another calculation type.
10

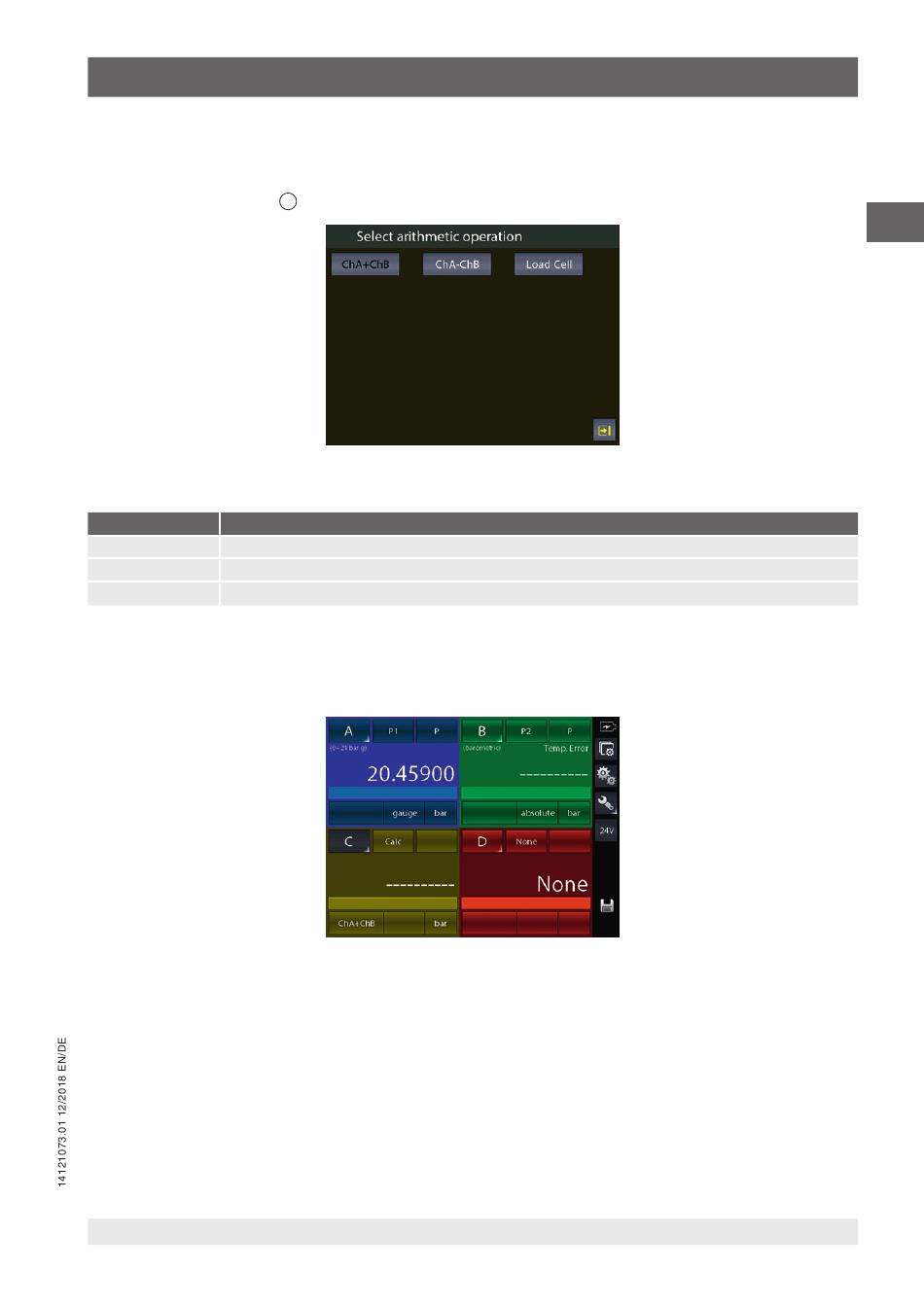

Fig. 44 - Types of calculation
Fig. 45 - Calculation non possible for the channel D
