6. Commissioning, operation
The menu consists of:
Function
SCAL. ON/OFF
FILTER ON/OFF
HOLD ON
OFFSET ON
Resolution
Low range, High range
By entering the settings for an output channel, the same screen shows other functions for that channel:
The RAMP function can be enabled as output channel (generation). It works in the following way:
The [RAMP] button appears for the selected channel if it has been assigned to an output board.
With this function the user can program a ramp by automatically shifting the generation value in configurable steps.
If both the 2 generation board are installed, and they are been assigned to two different channels, a different ramp for each
output can be programmed.
WIKA operating instructions, model Pascal ET
Meaning
to enable/disable the scale function and display it with a different engeneering unit. The parameters of the
proportional value can be shown by keeping pressed this button.
to enable/disable the user noise filter on the signal. The parameters of the filter value can be shown by
keeping pressed this button.
to hold the last display (HOLD function)
to set the zero for the measurement
to set the number of decimal digits to display
to set the reference values of the low and high ranges when channel mode REF and DUT are uses.

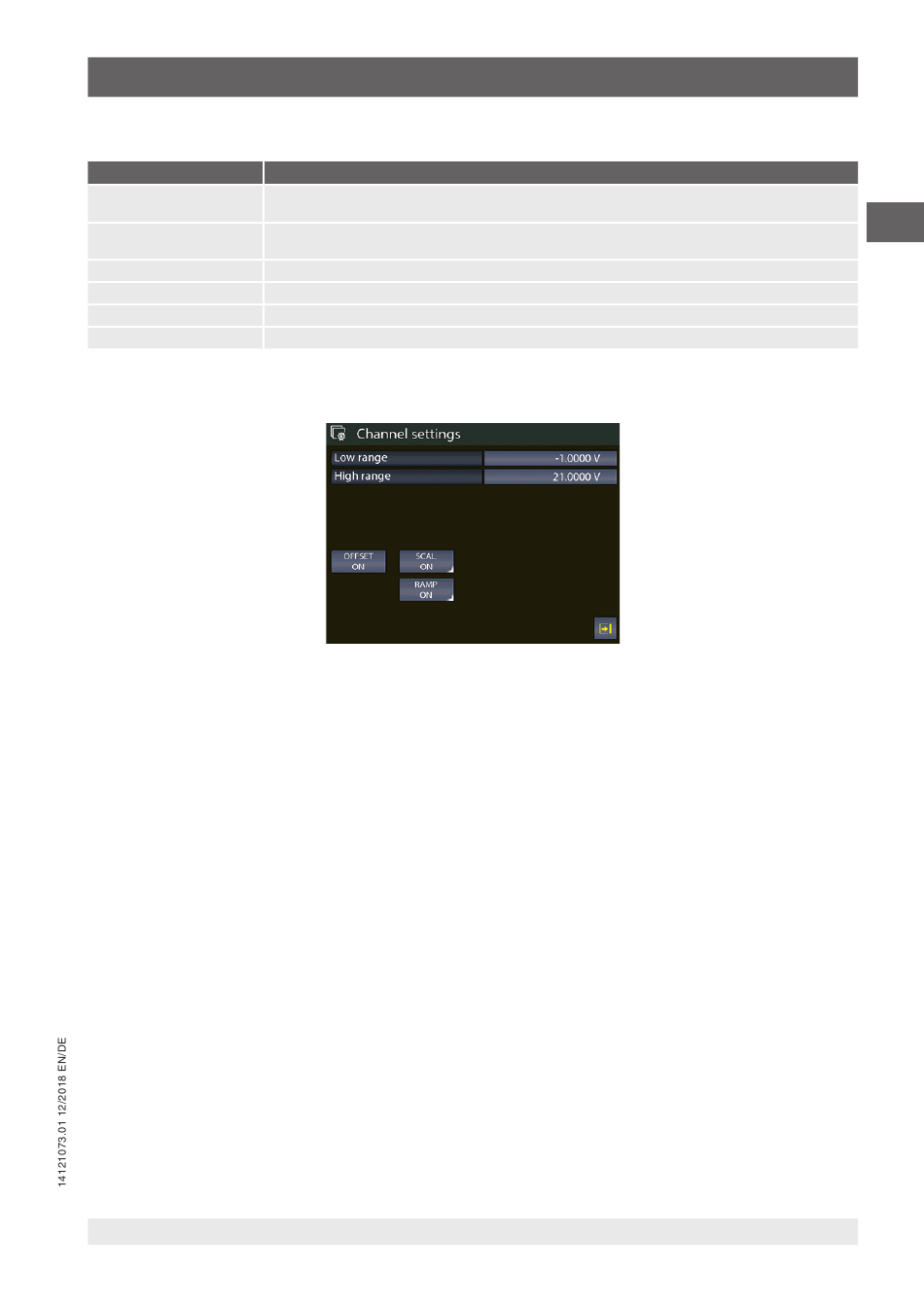

Fig. 57 - Setting output channel parameters
