6. Commissioning, operation

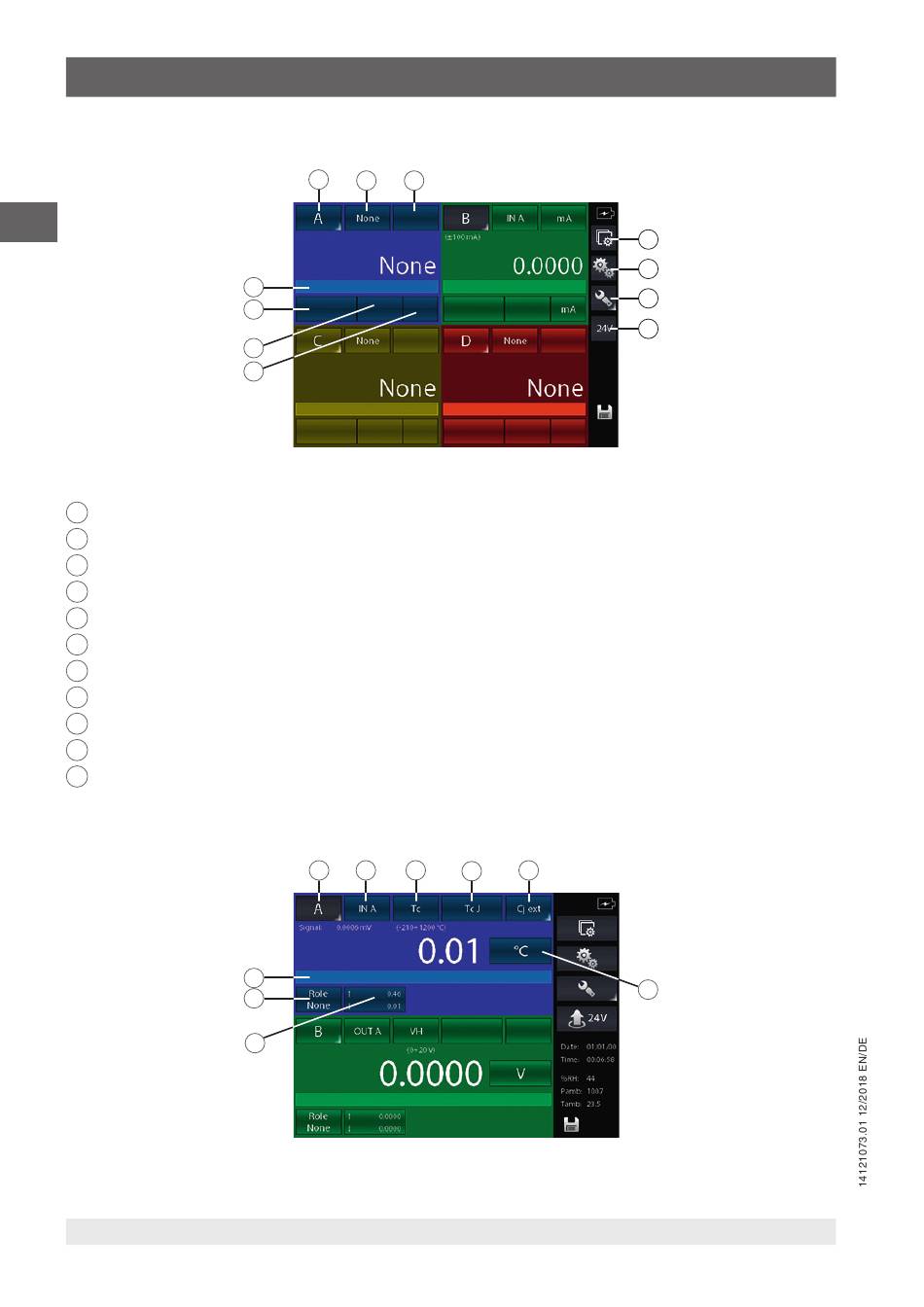

The following figure shows the typical display of the calibrator.
EN
Selection / Assignment of the channel letter to the active window
1
Selecting the source for module IN / OUT / P / button
2
Selecting the field of the selected module (where applicable)
3
Channel settings
4
Instrument functions
5
General settings
6
Enable/Disable P.S. DC 24 V
7
Selecting the unit of the selected field (where changeable)
8
Selecting the field options of the selected module (where applicable), i.e. Tc or Rtd type
9
Selecting the sub-field of the selected module (where applicable)
10
Line for display status messages when active (i.e. filter, ramp, offset, etc...).
11
Compared to the display mode for one single channel, the 1- or 2-window display mode shows additional information as
follows:
26
1
2 3
11
10
9
8
Fig. 9 - Typical display of Pascal ET with 4 windows
1 3
2
9
8
7
Fig. 10 - Typical display of Pascal ET with 2 windows
5
4
