6. Commissioning, operation
The Pascal ET allows to manage the sensitivity of the load cell from 0 mV/V up to 9.99999 mV/V.
Moreover, on channel C or D, the SCALING function can be assigned through the menu CHANNEL SETTINGS
(button ) in order to display an engineering unit more appropriate (for example Kg or a pressure unit).
EN

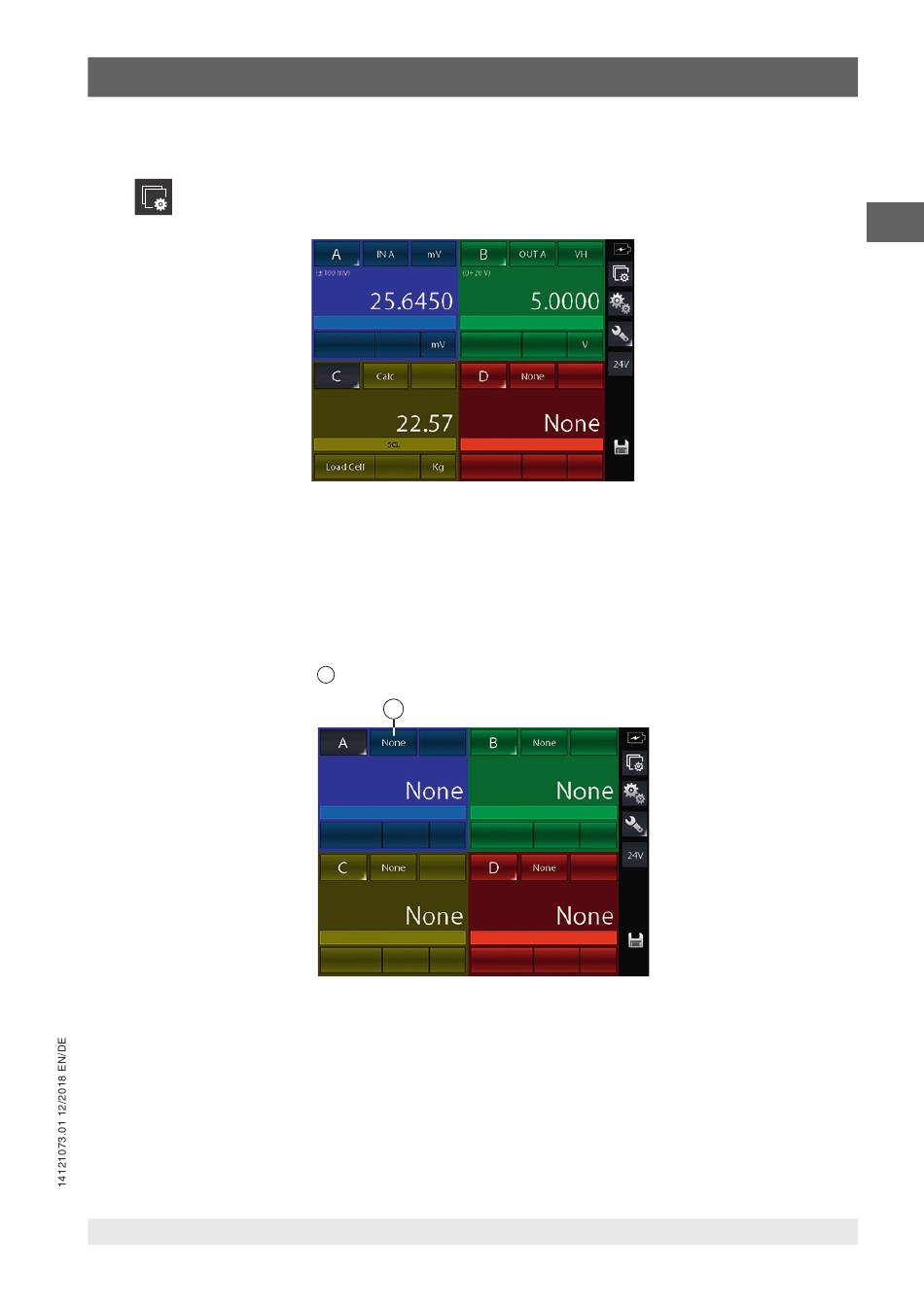

Fig. 48 - Load cell calculation with scaling function active

6.3.2.7 HART channel assignment

To select the channel press on one of the four large displays, then press desired CHANNEL. Once menu is displayed press
ASSIGN. The procedure is shown below:
The particular channel is selected by pressing the channel letter (the background of the button changes in gray).
Then, press the button indicated with to assign the desired functional module:
2
2
®
Fig. 49 - HART channel assign selection
