6. Commissioning, operation

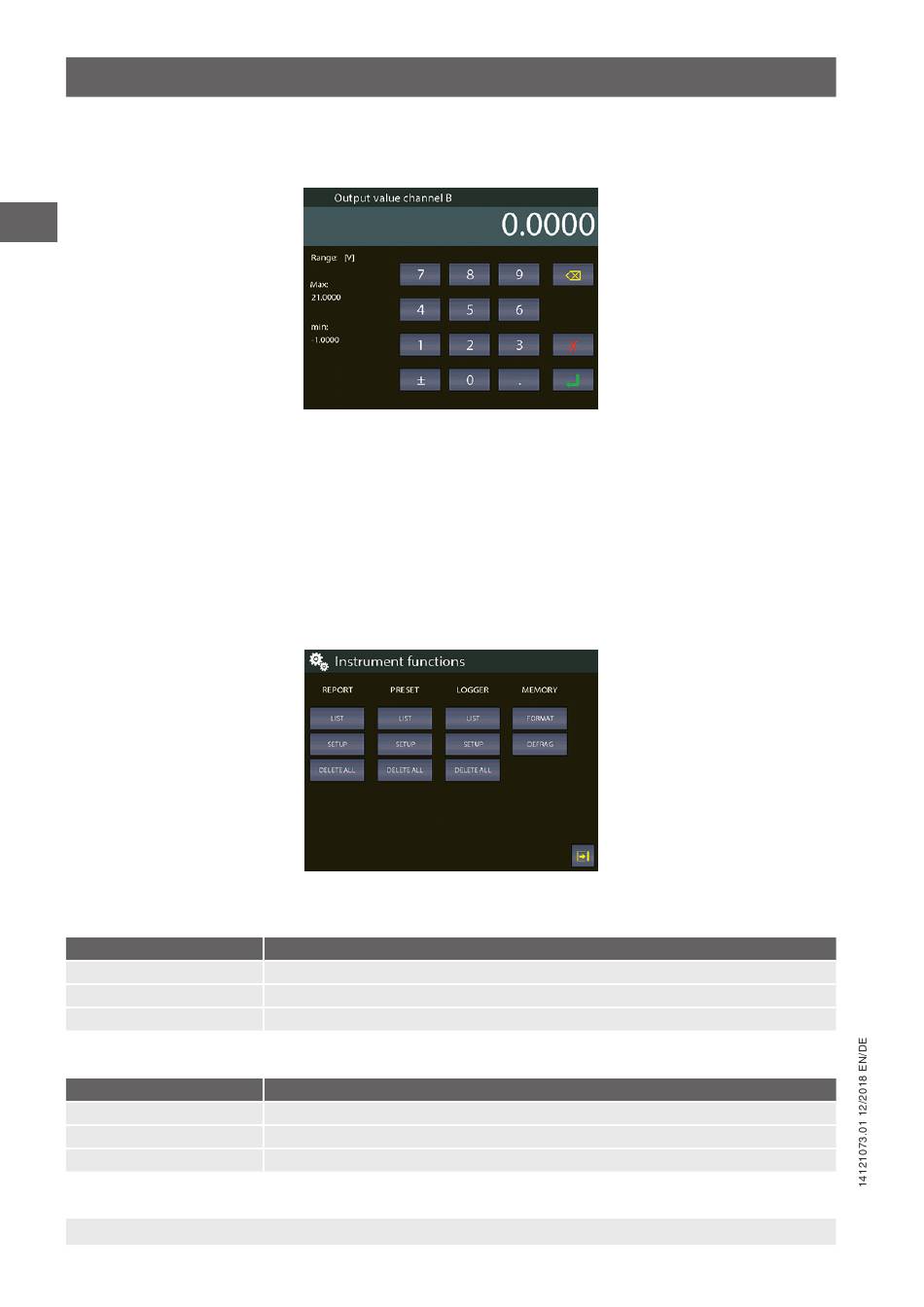

By pressing the value indicated on the picture above you can select the value of the signals within the limits specified during
the assignment (clearly indicated under "Min" and "Max" on the left side) with the help of a keyboard:
EN

6.6 Report

To create a report one channel has to be set as REF (Reference) and another one as DUT (Device Under Test): reference
signal and direct measurement (or manual input by keyboard) are required.
For the REFERENCE: remember to set the range equivalent to the one of the DUT. When the channel is assigned as
reference, the symbol REF will appear.
For the DUT: remember to define the max error and the declaration. A bargraph will be displayed on the DUT channel. When
the channel is test item, the symbol DUT will appear.
Options are available on the screen for the functions setting (see chapter 6.5.2 "Scaling".):
On the REPORT column the available options are:
Option
LIST
SETUP
DELETE ALL
On the PRESET column the available options are:
Option
LIST
SETUP
DELETE ALL
56
Fig. 71 - Modification of generation/simulation value
Fig. 72 - Functions setting
Meaning
View reports
Setup reports
Delete all the reports
Meaning
View preset list
Preset set up
Delete all the presets
