6. Commissioning, operation
The calibrator is now set for measuring "Tc", and in selects the last thermocouple type used (in this case the last
thermocouple type used was Tc, type J with internal cold junction (active) and temperature shown in °C.
Selecting "internal cold junction", a Pt100 is directly connected to the TC input pins, measures the environmental temperature;
EN
whereas by selecting "external cold junction", the temperature value must be inserted by using the keyboard.
Press first in order to change the Cj type into external Cj type (E), then keep pressed the button (a semi triangle symbol
8 8
on the bottom right corner of the button appears":
8

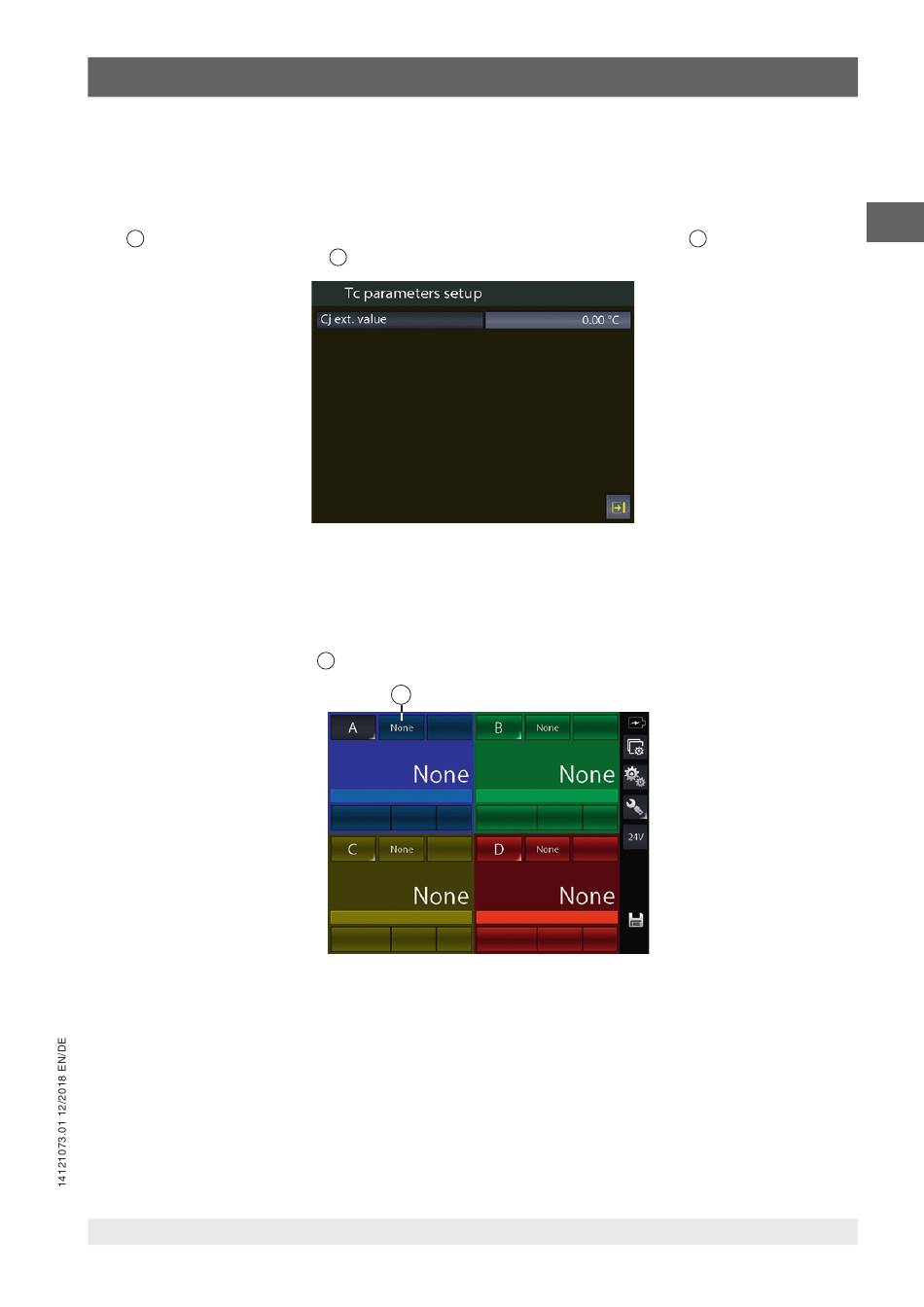

Fig. 33 - Tc parameters selection: External Jc type (manual)

6.3.2.3 Electrical parameter measurement

The following procedure shows the settings of Pascal ET for the electrical parameters measurement through the input module.
The particular channel is selected by pressing the channel letter (the background of the button changes in gray).
Then, press the button indicated with to assign the desired functional module:
2
2
Fig. 34 - Channel assign selection
WIKA operating instructions, model Pascal ET 37
