6. Commissioning, operation
The flashing of the disc icon, on the central part of the upper menu, shows that the LOGGER is active. The data will be stored
on all 4 channels (if assigned) simultaneously
EN
Flashing symbol

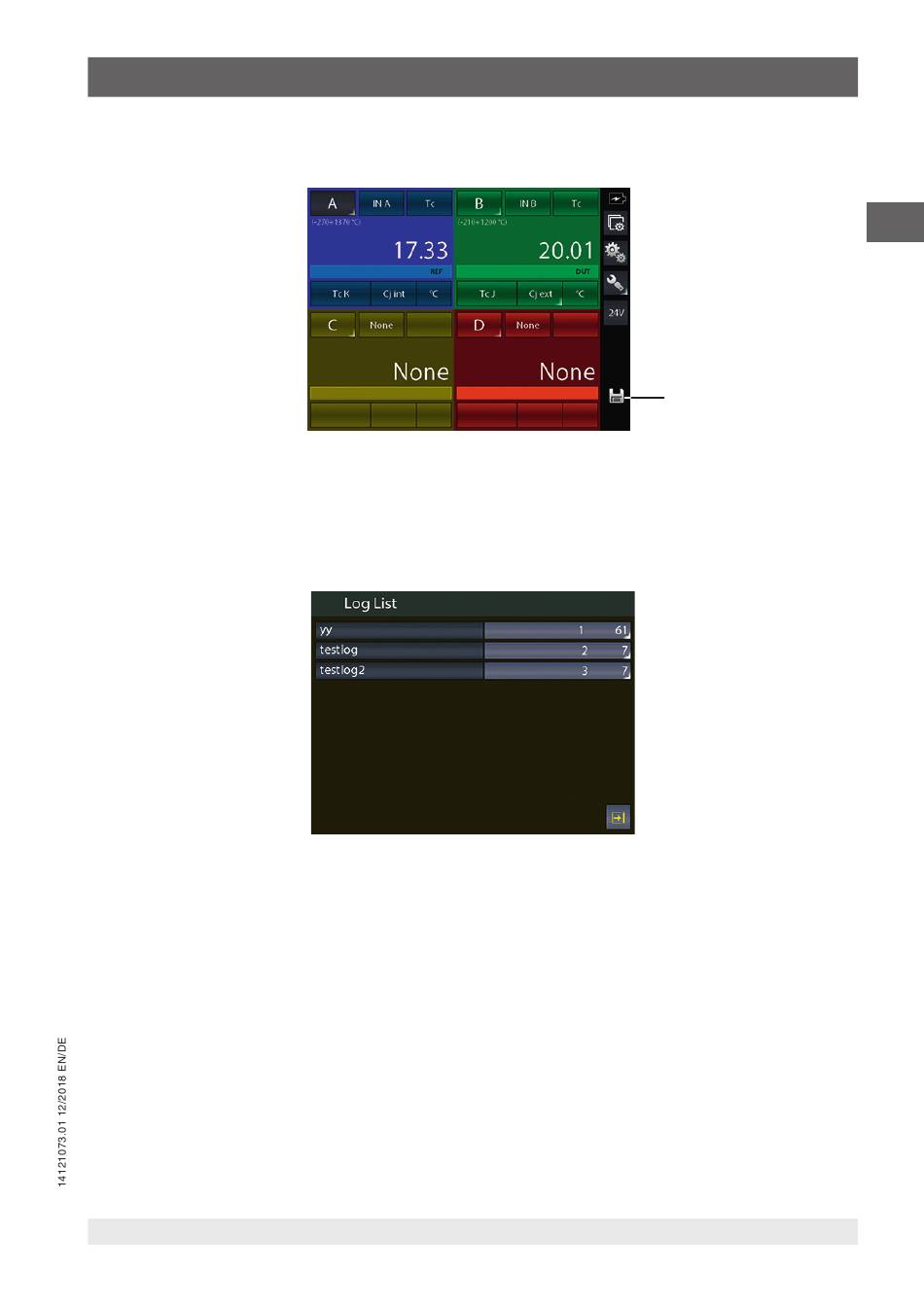

Fig. 84 - Logger running
By pressing [DELETE ALL] on the LOGGER column on the screen of the functions setting, all the logs will be deleted: a
confirmation will be asked to the user before proceeding.
Press the button [LIST] to show all the stored logs.
Fig. 85 - Display log list
Press the button with grey background next to the log name to see the data of each log.
You can delete the selected log by pressing and keeping pressed the button with grey background next to the log name: a
confirmation will be asked to the user before proceeding.
