6. Commissioning, operation
Press the button indicated with
Here the user has the possibility to change some HART parameters:
Select the channel with active HART communication (in this case the Channel A)
■
Push the button channel settings
■
Push the button [HART FUNC] and the following screen appears:
Push the button [DATA] to display the HART data:
Here the user has the possibility to change some parameter by pushing on the value on the right side of the screen (the ones
shown with " : " the arrows at the bottom of the screen display further parameters.
WIKA operating instructions, model Pascal ET
to display the PV (primary variable) parameter.
3
to open the following screen:

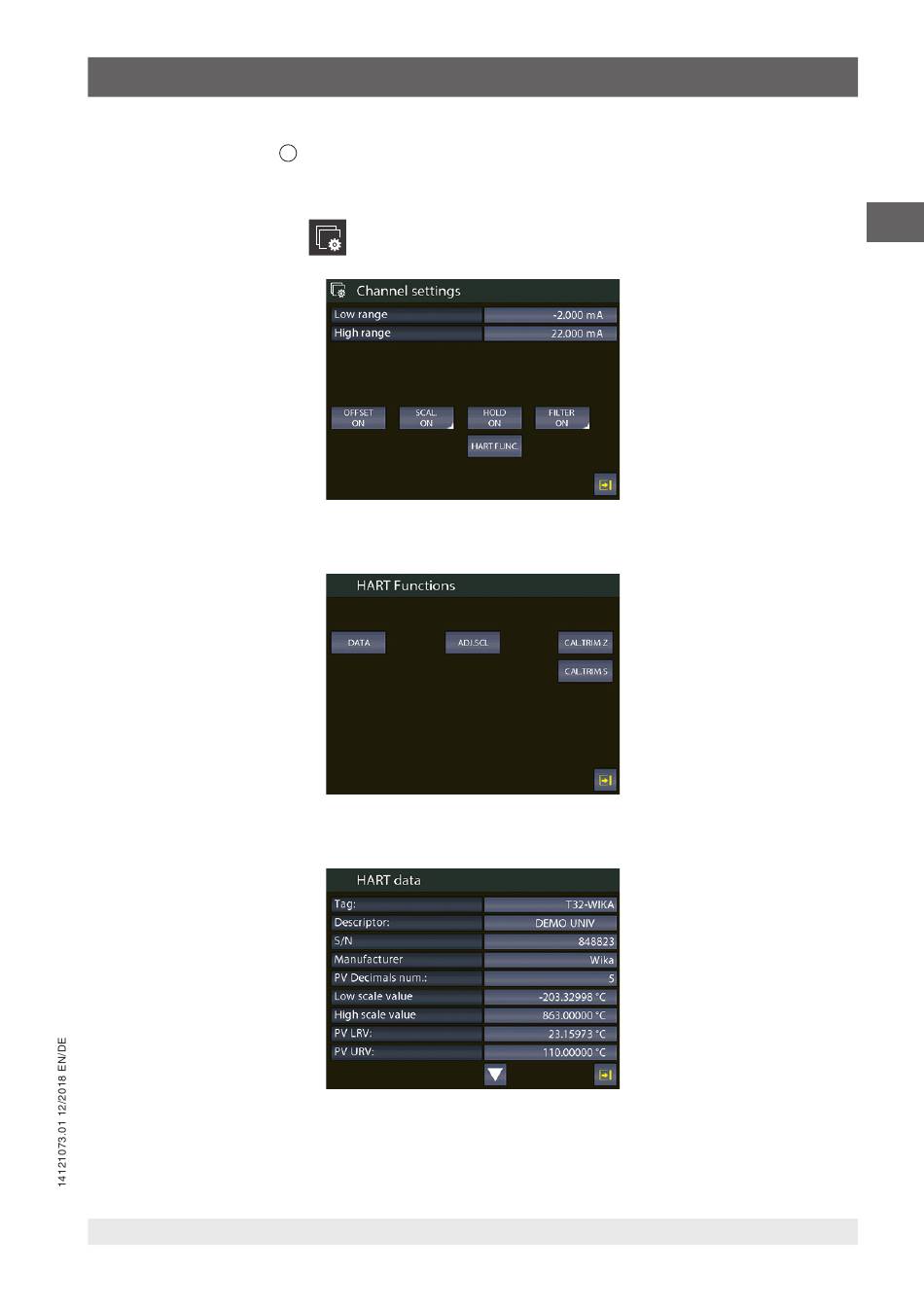

Fig. 53 - Setting the HART channel
Fig. 54 - HART
Fig. 55 - HART data display
®
function screen
