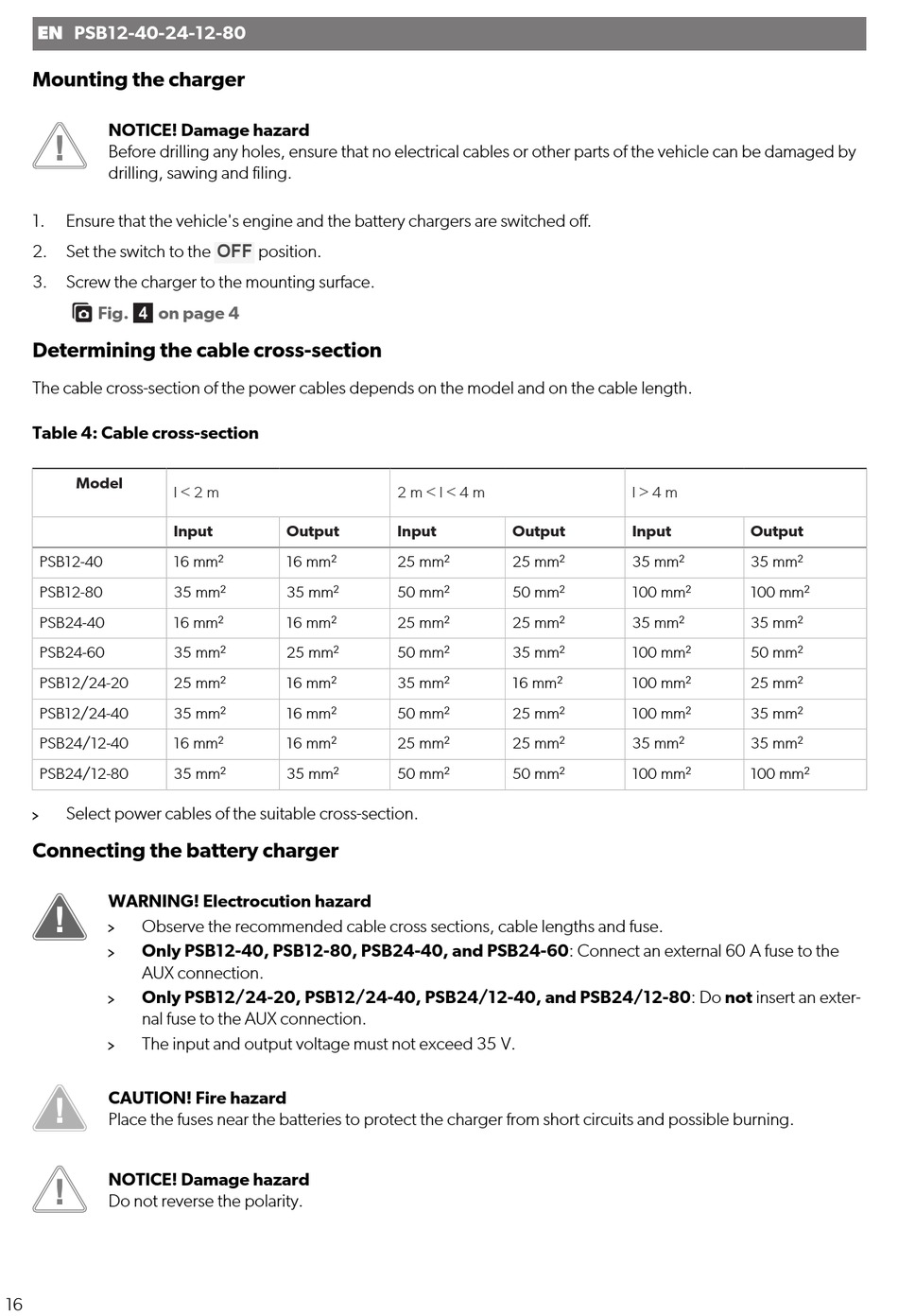

EN PSB12-40-24-12-80
Mounting the charger
NOTICE! Damage hazard
Before drilling any holes, ensure that no electrical cables or other parts of the vehicle can be damaged by
drilling, sawing and filing.
1. Ensure that the vehicle's engine and the battery chargers are switched off.
2. Set the switch to the
3. Screw the charger to the mounting surface.
Fig.  on page 4
Determining the cable cross-section
The cable cross-section of the power cables depends on the model and on the cable length.
Table 4: Cable cross-section
Model
I < 2 m
Input
PSB12-40 16 mm²
PSB12-80 35 mm²
PSB24-40 16 mm²
PSB24-60 35 mm²
PSB12/24-20 25 mm²
PSB12/24-40 35 mm²
PSB24/12-40 16 mm²
PSB24/12-80 35 mm²
Select power cables of the suitable cross-section.
Connecting the battery charger
WARNING! Electrocution hazard
Observe the recommended cable cross sections, cable lengths and fuse.
Only PSB12-40, PSB12-80, PSB24-40, and PSB24-60: Connect an external 60 A fuse to the
AUX connection.
Only PSB12/24-20, PSB12/24-40, PSB24/12-40, and PSB24/12-80: Do not insert an exter-
nal fuse to the AUX connection.
The input and output voltage must not exceed 35 V.
CAUTION! Fire hazard
Place the fuses near the batteries to protect the charger from short circuits and possible burning.
NOTICE! Damage hazard
Do not reverse the polarity.
16
OFF
position.
Output
16 mm²
35 mm²
16 mm²
25 mm²
16 mm²
16 mm²
16 mm²
35 mm²
2 m < l < 4 m
Input Output
25 mm² 25 mm²
50 mm² 50 mm²
25 mm² 25 mm²
50 mm² 35 mm²
35 mm² 16 mm²
50 mm² 25 mm²
25 mm² 25 mm²
50 mm² 50 mm²
l > 4 m
Input Output
35 mm² 35 mm²
100 mm² 100 mm²
35 mm² 35 mm²
100 mm² 50 mm²
100 mm² 25 mm²
100 mm² 35 mm²
35 mm² 35 mm²
100 mm² 100 mm²
