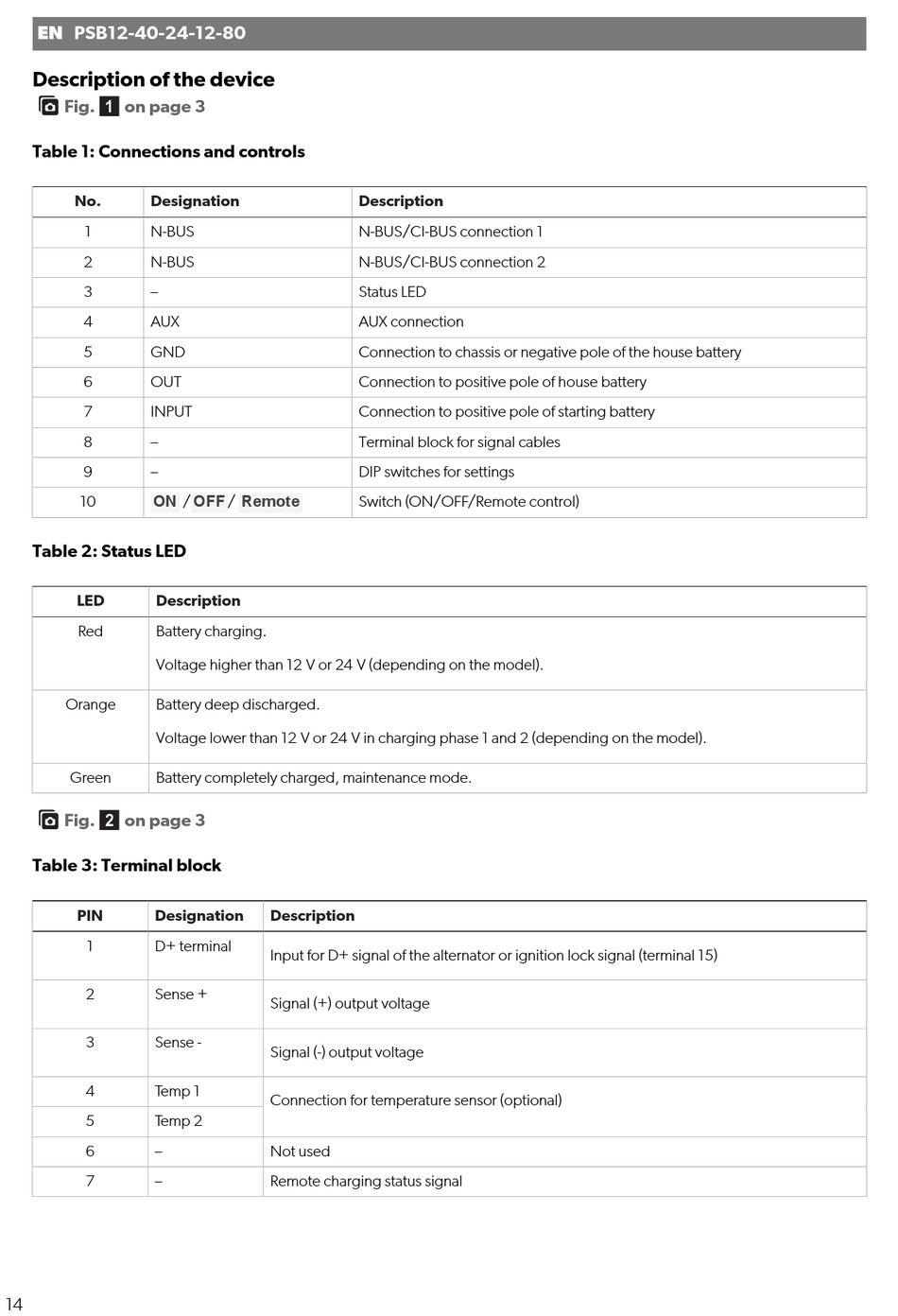

EN PSB12-40-24-12-80
Description of the device
Fig.  on page 3
Table 1: Connections and controls
No. Designation
1 N-BUS
2 N-BUS
3 –
4 AUX
5 GND
6 OUT
7 INPUT
8 –
9 –
ON
10
Table 2: Status LED
LED Description
Red Battery charging.
Voltage higher than 12 V or 24 V (depending on the model).
Orange Battery deep discharged.
Voltage lower than 12 V or 24 V in charging phase 1 and 2 (depending on the model).
Green Battery completely charged, maintenance mode.
Fig.  on page 3
Table 3: Terminal block
PIN Designation
1 D+ terminal
2 Sense +
3 Sense -
4 Temp 1
5 Temp 2
6 –
7 –
14
OFF Remote
/ /
Description
Input for D+ signal of the alternator or ignition lock signal (terminal 15)
Signal (+) output voltage
Signal (-) output voltage
Connection for temperature sensor (optional)
Not used
Remote charging status signal
Description
N-BUS/CI-BUS connection 1
N-BUS/CI-BUS connection 2
Status LED
AUX connection
Connection to chassis or negative pole of the house battery
Connection to positive pole of house battery
Connection to positive pole of starting battery
Terminal block for signal cables
DIP switches for settings
Switch (ON/OFF/Remote control)
