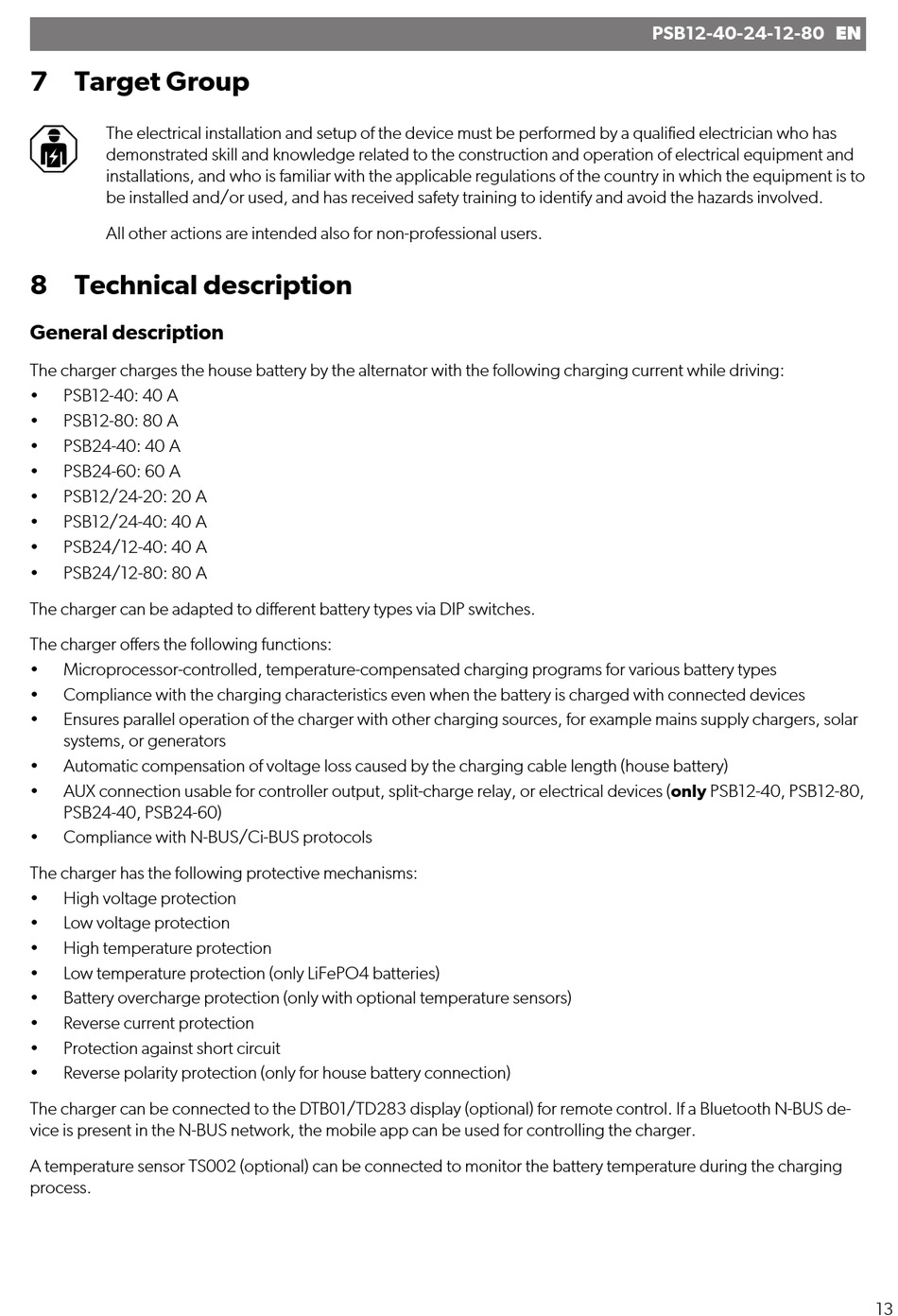

7 Target Group
The electrical installation and setup of the device must be performed by a qualified electrician who has
demonstrated skill and knowledge related to the construction and operation of electrical equipment and
installations, and who is familiar with the applicable regulations of the country in which the equipment is to
be installed and/or used, and has received safety training to identify and avoid the hazards involved.
All other actions are intended also for non-professional users.
8 Technical description
General description
The charger charges the house battery by the alternator with the following charging current while driving:
• PSB12-40: 40 A
• PSB12-80: 80 A
• PSB24-40: 40 A
• PSB24-60: 60 A
• PSB12/24-20: 20 A
• PSB12/24-40: 40 A
• PSB24/12-40: 40 A
• PSB24/12-80: 80 A
The charger can be adapted to different battery types via DIP switches.
The charger offers the following functions:
• Microprocessor-controlled, temperature-compensated charging programs for various battery types
• Compliance with the charging characteristics even when the battery is charged with connected devices
• Ensures parallel operation of the charger with other charging sources, for example mains supply chargers, solar
systems, or generators
• Automatic compensation of voltage loss caused by the charging cable length (house battery)
• AUX connection usable for controller output, split-charge relay, or electrical devices (only PSB12-40, PSB12-80,
PSB24-40, PSB24-60)
• Compliance with N-BUS/Ci-BUS protocols
The charger has the following protective mechanisms:
• High voltage protection
• Low voltage protection
• High temperature protection
• Low temperature protection (only LiFePO4 batteries)
• Battery overcharge protection (only with optional temperature sensors)
• Reverse current protection
• Protection against short circuit
• Reverse polarity protection (only for house battery connection)
The charger can be connected to the DTB01/TD283 display (optional) for remote control. If a Bluetooth N-BUS de-
vice is present in the N-BUS network, the mobile app can be used for controlling the charger.
A temperature sensor TS002 (optional) can be connected to monitor the battery temperature during the charging
process.
