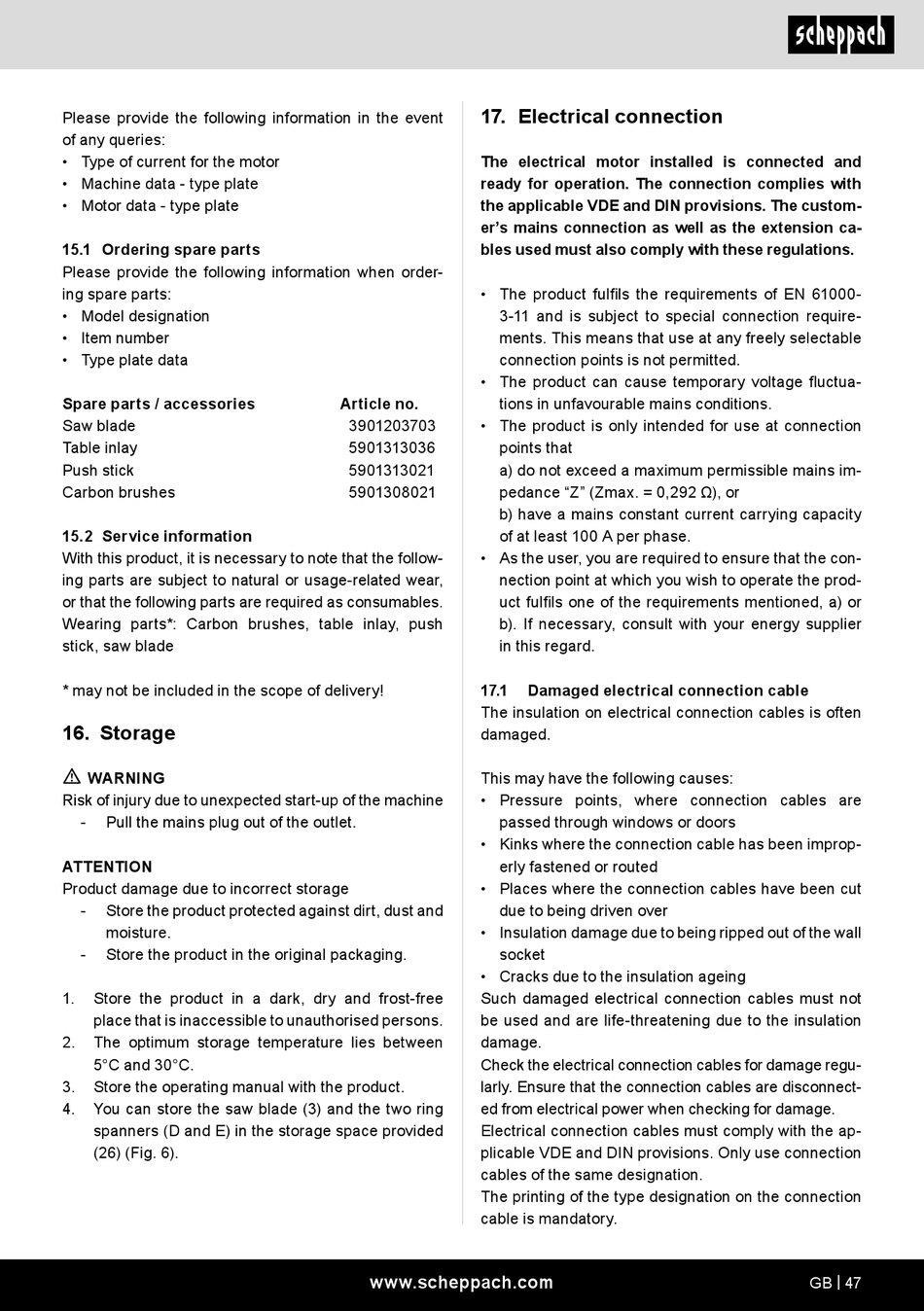

Scheppach HS254 Originalbetriebsanleitung Seite 47

Please provide the following information in the event
of any queries:
• Type of current for the motor
• Machine data - type plate
• Motor data - type plate
15.1 Ordering spare parts
Please provide the following information when order-
ing spare parts:
• Model designation
• Item number
• Type plate data
Spare parts / accessories
Saw blade
Table inlay
Push stick
Carbon brushes
15.2 Service information
With this product, it is necessary to note that the follow-
ing parts are subject to natural or usage-related wear,
or that the following parts are required as consumables.
Wearing parts*: Carbon brushes, table inlay, push
stick, saw blade
* may not be included in the scope of delivery!
16. Storage
m
WARNING
Risk of injury due to unexpected start-up of the machine
- Pull the mains plug out of the outlet.
ATTENTION
Product damage due to incorrect storage
- Store the product protected against dirt, dust and
moisture.
- Store the product in the original packaging.
1. Store the product in a dark, dry and frost-free
place that is inaccessible to unauthorised persons.
2. The optimum storage temperature lies between
5°C and 30°C.
3. Store the operating manual with the product.
4. You can store the saw blade (3) and the two ring
spanners (D and E) in the storage space provided
(26) (Fig. 6).
17. Electrical connection
The electrical motor installed is connected and
ready for operation. The connection complies with
the applicable VDE and DIN provisions. The custom-
er's mains connection as well as the extension ca-
bles used must also comply with these regulations.
• The product fulfils the requirements of EN 61000-
3-11 and is subject to special connection require-
ments. This means that use at any freely selectable
connection points is not permitted.
• The product can cause temporary voltage fluctua-
Article no. tions in unfavourable mains conditions.
3901203703 • The product is only intended for use at connection
5901313036 points that
5901313021 a) do not exceed a maximum permissible mains im-
5901308021 pedance "Z" (Zmax. = 0,292 Ω), or
b) have a mains constant current carrying capacity
of at least 100 A per phase.
• As the user, you are required to ensure that the con-
nection point at which you wish to operate the prod-
uct fulfils one of the requirements mentioned, a) or
b). If necessary, consult with your energy supplier
in this regard.
17.1
The insulation on electrical connection cables is often
damaged.
This may have the following causes:
• Pressure points, where connection cables are
passed through windows or doors
• Kinks where the connection cable has been improp-
erly fastened or routed
• Places where the connection cables have been cut
due to being driven over
• Insulation damage due to being ripped out of the wall
socket
• Cracks due to the insulation ageing
Such damaged electrical connection cables must not
be used and are life-threatening due to the insulation
damage.
Check the electrical connection cables for damage regu-
larly. Ensure that the connection cables are disconnect-
ed from electrical power when checking for damage.
Electrical connection cables must comply with the ap-
plicable VDE and DIN provisions. Only use connection
cables of the same designation.
The printing of the type designation on the connection
cable is mandatory.
www.scheppach.com
Damaged electrical connection cable
