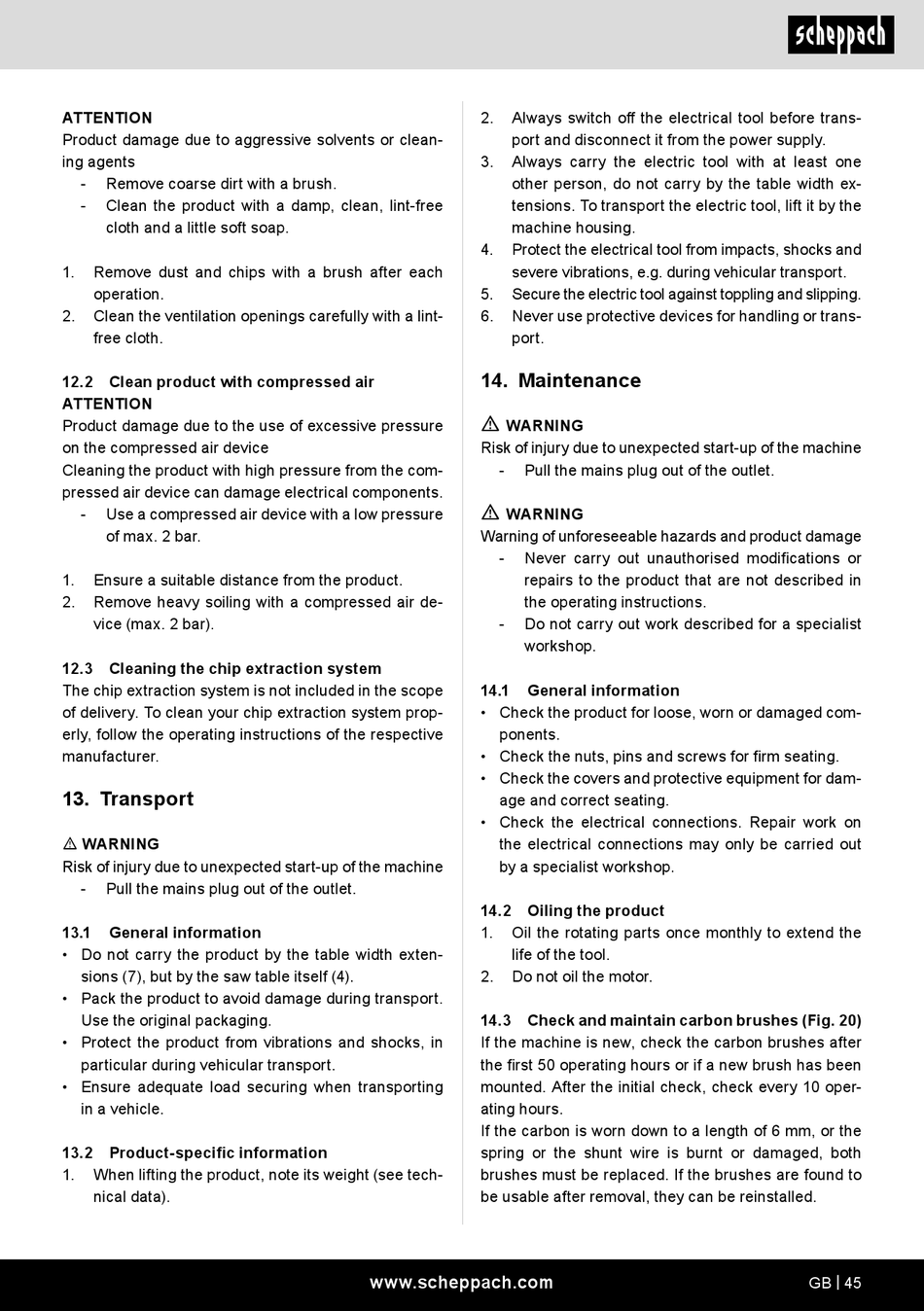

Scheppach HS254 Originalbetriebsanleitung Seite 45

ATTENTION
Product damage due to aggressive solvents or clean-
ing agents
- Remove coarse dirt with a brush.
- Clean the product with a damp, clean, lint-free
cloth and a little soft soap.
1. Remove dust and chips with a brush after each
operation.
2. Clean the ventilation openings carefully with a lint-
free cloth.
12.2 Clean product with compressed air
ATTENTION
Product damage due to the use of excessive pressure
on the compressed air device
Cleaning the product with high pressure from the com-
pressed air device can damage electrical components.
- Use a compressed air device with a low pressure
of max. 2 bar.
1. Ensure a suitable distance from the product.
2. Remove heavy soiling with a compressed air de-
vice (max. 2 bar).
12.3 Cleaning the chip extraction system
The chip extraction system is not included in the scope
of delivery. To clean your chip extraction system prop-
erly, follow the operating instructions of the respective
manufacturer.
13. Transport
m WARNING
Risk of injury due to unexpected start-up of the machine
- Pull the mains plug out of the outlet.
13.1 General information
• Do not carry the product by the table width exten-
sions (7), but by the saw table itself (4).
• Pack the product to avoid damage during transport.
Use the original packaging.
• Protect the product from vibrations and shocks, in
particular during vehicular transport.
• Ensure adequate load securing when transporting
in a vehicle.
13.2 Product-specific information
1. When lifting the product, note its weight (see tech-
nical data).
2. Always switch off the electrical tool before trans-
port and disconnect it from the power supply.
3. Always carry the electric tool with at least one
other person, do not carry by the table width ex-
tensions. To transport the electric tool, lift it by the
machine housing.
4. Protect the electrical tool from impacts, shocks and
severe vibrations, e.g. during vehicular transport.
5. Secure the electric tool against toppling and slipping.
6. Never use protective devices for handling or trans-
port.
14. Maintenance
m
WARNING
Risk of injury due to unexpected start-up of the machine
- Pull the mains plug out of the outlet.
m
WARNING
Warning of unforeseeable hazards and product damage
- Never carry out unauthorised modifications or
repairs to the product that are not described in
the operating instructions.
- Do not carry out work described for a specialist
workshop.
14.1 General information
• Check the product for loose, worn or damaged com-
ponents.
• Check the nuts, pins and screws for firm seating.
• Check the covers and protective equipment for dam-
age and correct seating.
• Check the electrical connections. Repair work on
the electrical connections may only be carried out
by a specialist workshop.
14.2 Oiling the product
1. Oil the rotating parts once monthly to extend the
life of the tool.
2. Do not oil the motor.
14.3 Check and maintain carbon brushes (Fig. 20)
If the machine is new, check the carbon brushes after
the first 50 operating hours or if a new brush has been
mounted. After the initial check, check every 10 oper-
ating hours.
If the carbon is worn down to a length of 6 mm, or the
spring or the shunt wire is burnt or damaged, both
brushes must be replaced. If the brushes are found to
be usable after removal, they can be reinstalled.
