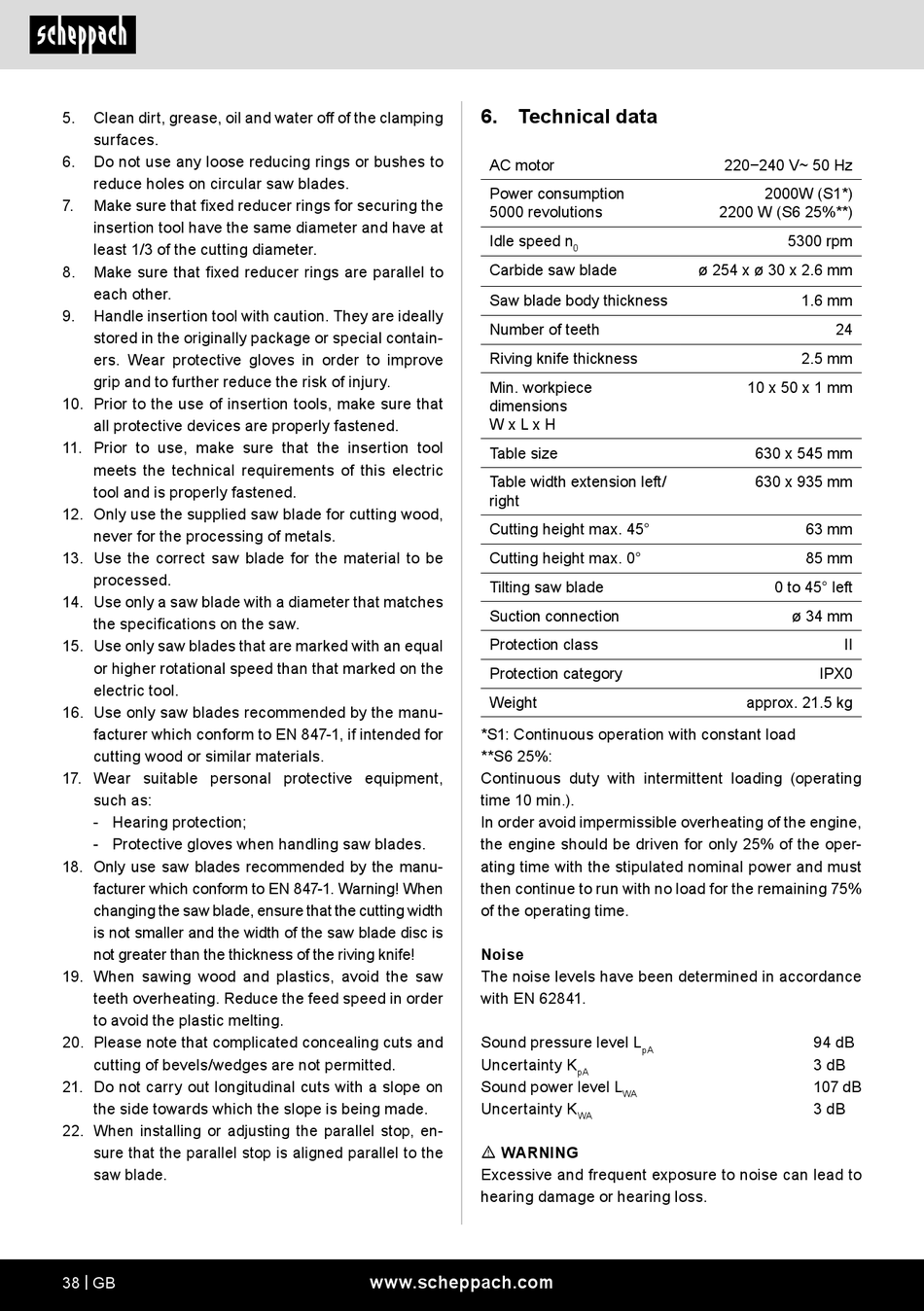

Scheppach HS254 Originalbetriebsanleitung Seite 38

5. Clean dirt, grease, oil and water off of the clamping
surfaces.
6. Do not use any loose reducing rings or bushes to
reduce holes on circular saw blades.
7. Make sure that fixed reducer rings for securing the
insertion tool have the same diameter and have at
least 1/3 of the cutting diameter.
8. Make sure that fixed reducer rings are parallel to
each other.
9. Handle insertion tool with caution. They are ideally
stored in the originally package or special contain-
ers. Wear protective gloves in order to improve
grip and to further reduce the risk of injury.
10. Prior to the use of insertion tools, make sure that
all protective devices are properly fastened.
11. Prior to use, make sure that the insertion tool
meets the technical requirements of this electric
tool and is properly fastened.
12. Only use the supplied saw blade for cutting wood,
never for the processing of metals.
13. Use the correct saw blade for the material to be
processed.
14. Use only a saw blade with a diameter that matches
the specifications on the saw.
15. Use only saw blades that are marked with an equal
or higher rotational speed than that marked on the
electric tool.
16. Use only saw blades recommended by the manu-
facturer which conform to EN 847-1, if intended for
cutting wood or similar materials.
17. Wear suitable personal protective equipment,
such as:
- Hearing protection;
- Protective gloves when handling saw blades.
18. Only use saw blades recommended by the manu-
facturer which conform to EN 847-1. Warning! When
changing the saw blade, ensure that the cutting width
is not smaller and the width of the saw blade disc is
not greater than the thickness of the riving knife!
19. When sawing wood and plastics, avoid the saw
teeth overheating. Reduce the feed speed in order
to avoid the plastic melting.
20. Please note that complicated concealing cuts and
cutting of bevels/wedges are not permitted.
21. Do not carry out longitudinal cuts with a slope on
the side towards which the slope is being made.
22. When installing or adjusting the parallel stop, en-
sure that the parallel stop is aligned parallel to the
saw blade.
38 | GB
6. Technical data
AC motor
Power consumption
5000 revolutions
Idle speed n
Carbide saw blade
Saw blade body thickness
Number of teeth
Riving knife thickness
Min. workpiece
dimensions
W x L x H
Table size
Table width extension left/
right
Cutting height max. 45°
Cutting height max. 0°
Tilting saw blade
Suction connection
Protection class
Protection category
Weight
*S1: Continuous operation with constant load
**S6 25%:
Continuous duty with intermittent loading (operating
time 10 min.).
In order avoid impermissible overheating of the engine,
the engine should be driven for only 25% of the oper-
ating time with the stipulated nominal power and must
then continue to run with no load for the remaining 75%
of the operating time.
Noise
The noise levels have been determined in accordance
with EN 62841.
Sound pressure level L
Uncertainty K
Sound power level L
Uncertainty K
m WARNING
Excessive and frequent exposure to noise can lead to
hearing damage or hearing loss.
www.scheppach.com
220−240 V~ 50 Hz
2200 W (S6 25%**)
0
ø 254 x ø 30 x 2.6 mm
10 x 50 x 1 mm
approx. 21.5 kg
pA
pA
WA
WA
2000W (S1*)
5300 rpm
1.6 mm
24
2.5 mm
630 x 545 mm
630 x 935 mm
63 mm
85 mm
0 to 45° left
ø 34 mm
II
IPX0
94 dB
3 dB
107 dB
3 dB
