P P o o s s i i t t i i o o n n i i n n g g o o f f t t h h e e v v e e h h i i c c l l e e s s a a f f e e t t y y h h o o o o k k , , s s i i d d e e t t o o s s i i d d e e
Before vehicle safety hook installation, check the front to back and side to side positioning when you unload and load the
cot.
W W A A R R N N I I N N G G
• Do not modify the cot or the vehicle safety hook. If the cot safety bar does not connect with the vehicle safety hook in any
of these positions (left, center, or right), modify the vehicle.
• Always make sure that the cot safety bar connects with vehicle safety hook every time before you install the vehicle
safety hook.
To check the side to side positioning:
1. Remove the cot from the cot fastener and unload it from the vehicle.
2. Note the position of the cot load wheels and the cot safety bar when you are remove the cot.
3. Mark the center of the cot safety bar on the vehicle floor.
4. Make sure that the position marked in step 3 is where the cot safety bar connects with the vehicle safety hook every time
when you unload the cot in a variety of positions (such as all the way to the left and all the way to the right).
6086-209-005 Rev I.1
A

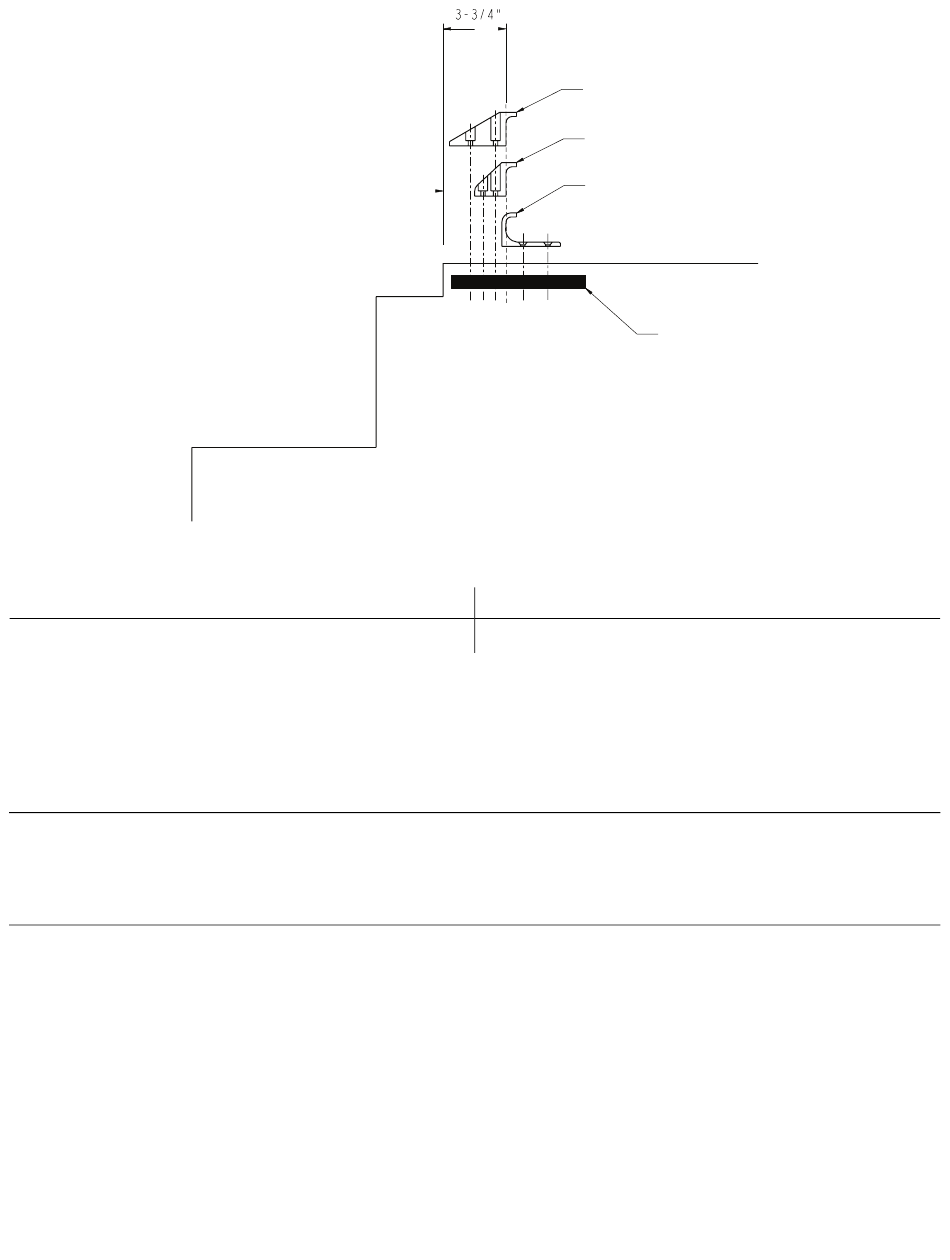

F F i i g g u u r r e e 5 5 – – V V e e h h i i c c l l e e s s a a f f e e t t y y h h o o o o k k p p l l a a c c e e m m e e n n t t
Sill
Floor structure support
6060-036-018
6060-036-017
6092-036-018
B
