6. Handling in operation
86
Diskette/ATA-Flashdisk:
Updates the data carrier with the last stored
values. It is also possible to save the
complete internal memory onto the data
carrier.
- Remove the data carrier only when
requested to do so and the drive LED no
longer illuminates.
Game:
Only available if unlocked during
installation.
- Manoeuvre the submarine through the
tunnel using the arrow push buttons.
- Measured value recording/store has
highest priority and continues in the
background.
- Possible fault messages are immediately
displayed so that immediate action can
be taken.
- Operating the "ESC" push button returns
the unit to normal operation.

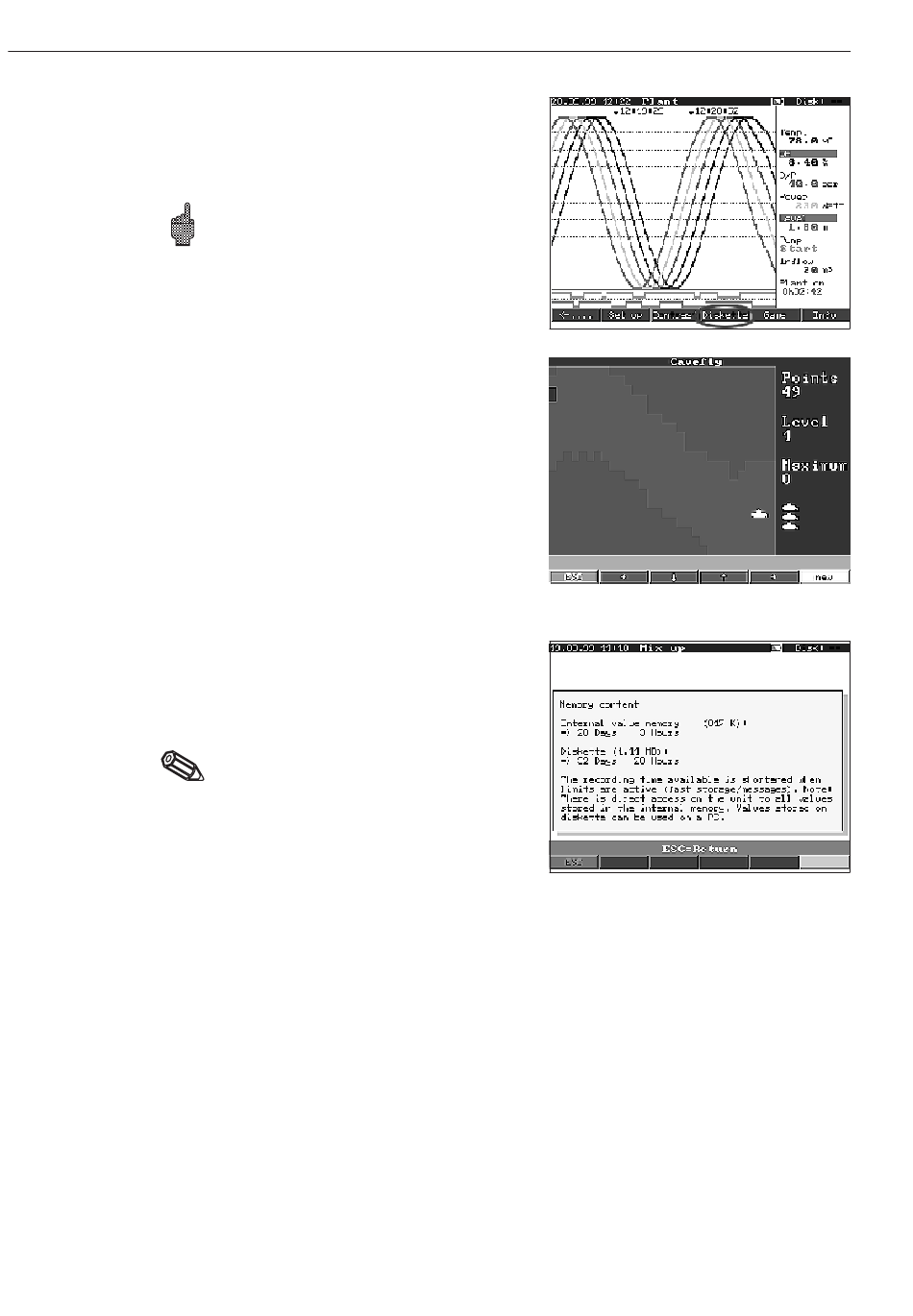

Memory information
Information regarding size and availability of
the internal memory and the changeable
data carrier. Indicates the maximum time the
memory will last at the actual unit settings.
Hint: The memory information takes the
actual unit settings into account (see "Tech-
nical information - memory") If changes have
just been made that have not been stored,
the memory information for these settings
are only available once the unit has returned
to normal operation, (operating "ESC" a
number of times and accepting new parameters with "Yes"). Please also see "Unit
settings - Set up - Setting up principle")
The available memory is shortened under the following circumstances:
- Alarm set points/events are to be stored or monitored
- Siganl analysis is active
- Other groups are to be stored faster

Functions of the LEDs

• Green LED illuminated: Unit operating normally, no fault recognised.
• Green/red LEDs flash in sequence: Message needs acknowledgement/note is
active in display (note that if the screen saver is active the display has been
switched to dark operation).
