5.1 Setting up direct on
the unit:
Basic settings
Analogue inputs
Mathematics channels
(Option)
Digital inputs
(Option)
Digital board(s)
(Option)
Digital channel
Combination
60

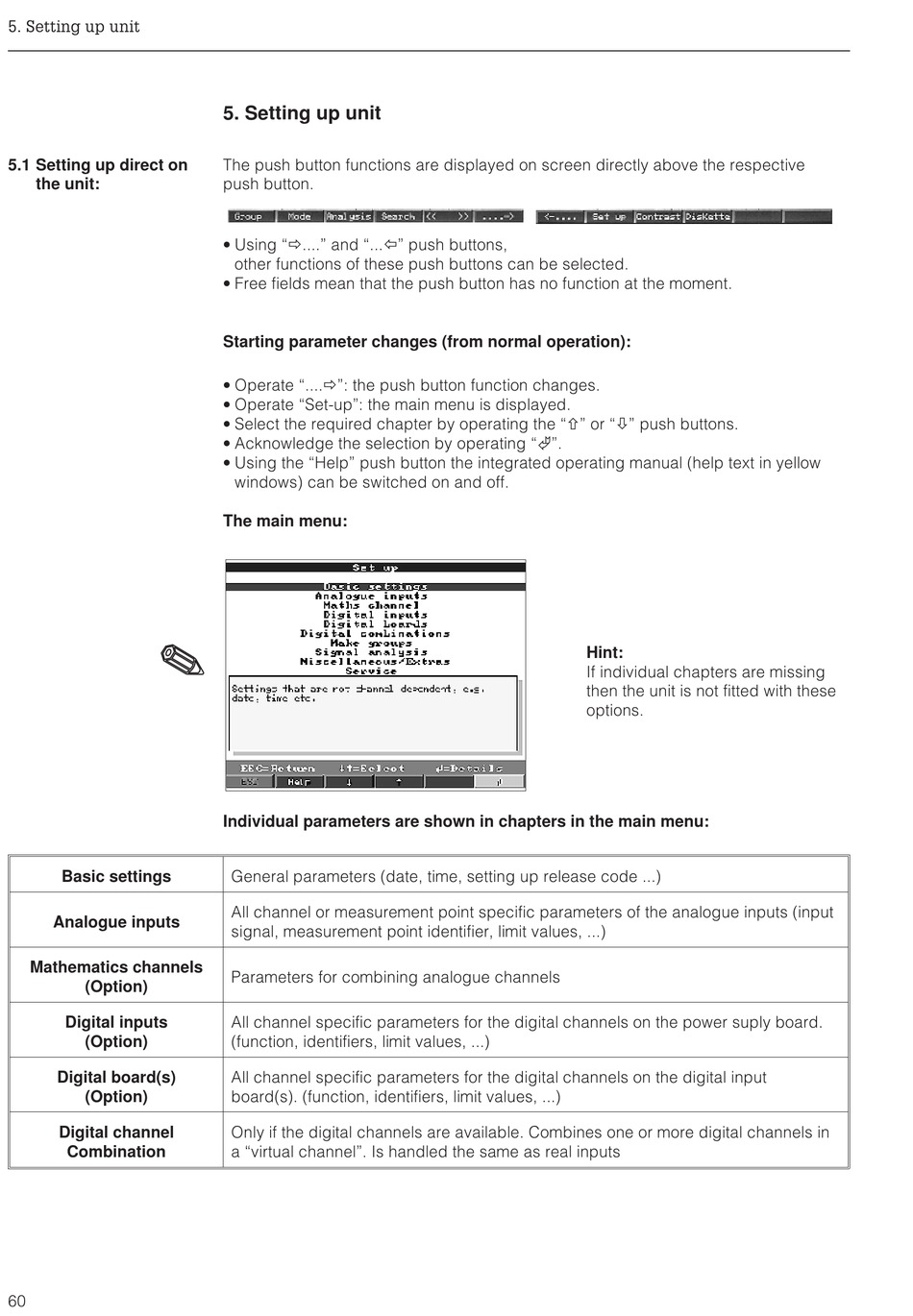

5. Setting up unit

The push button functions are displayed on screen directly above the respective
push button.
• Using "ð...." and "...ï" push buttons,
other functions of these push buttons can be selected.
• Free fields mean that the push button has no function at the moment.
Starting parameter changes (from normal operation):
• Operate "....ð": the push button function changes.
• Operate "Set-up": the main menu is displayed.
• Select the required chapter by operating the "ñ" or "ò" push buttons.
• Acknowledge the selection by operating "Ã".
• Using the "Help" push button the integrated operating manual (help text in yellow
windows) can be switched on and off.

The main menu:

Individual parameters are shown in chapters in the main menu:
General parameters (date, time, setting up release code ...)
All channel or measurement point specific parameters of the analogue inputs (input
signal, measurement point identifier, limit values, ...)
Parameters for combining analogue channels
All channel specific parameters for the digital channels on the power suply board.
(function, identifiers, limit values, ...)
All channel specific parameters for the digital channels on the digital input
board(s). (function, identifiers, limit values, ...)
Only if the digital channels are available. Combines one or more digital channels in
a "virtual channel". Is handled the same as real inputs
Hint:
If individual chapters are missing
then the unit is not fitted with these
options.
