4. Installation/connection/setting up

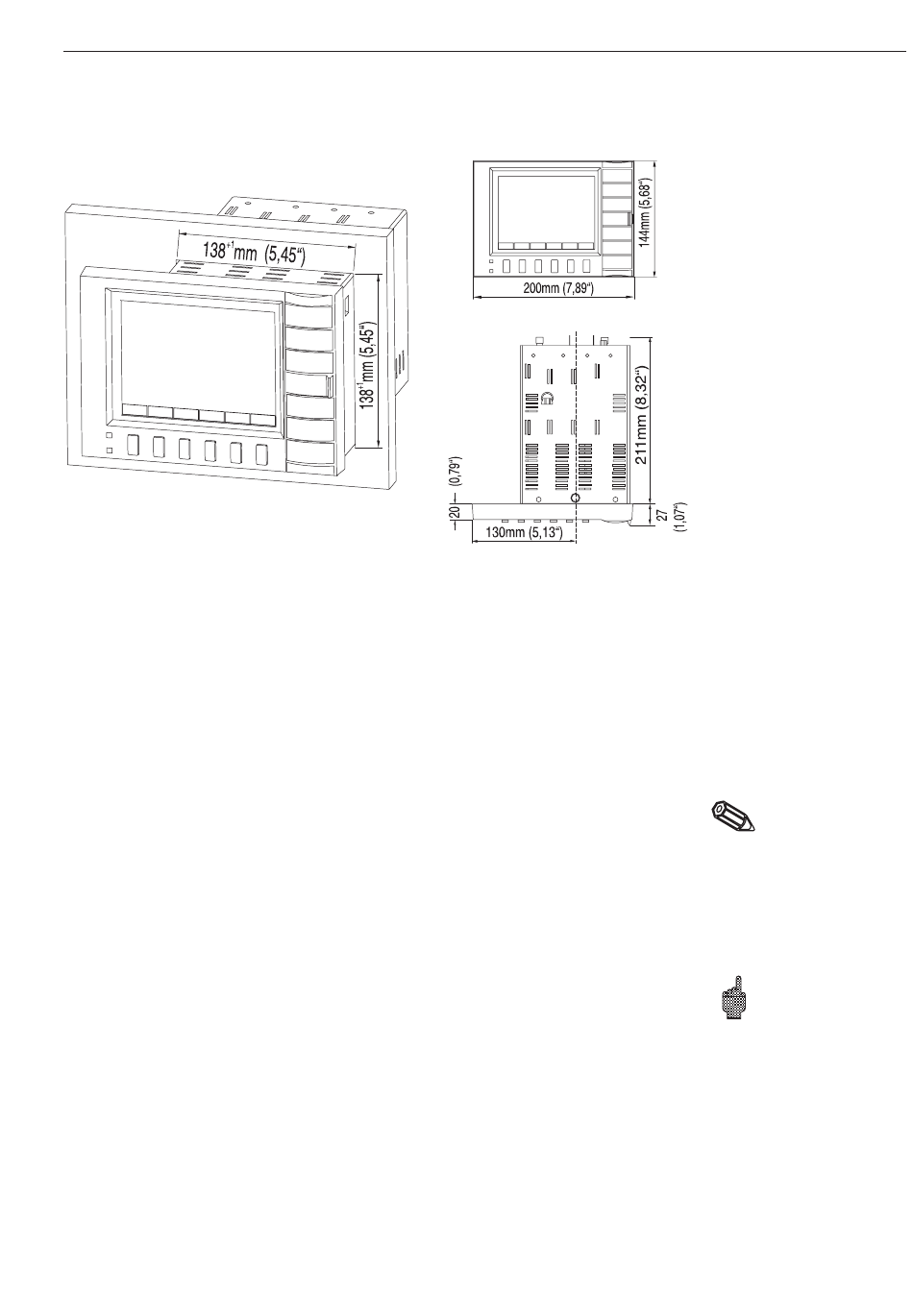

Prepare the required panel cut-out to 138+1 x 138+1 mm (to DIN 43700). Please take
note of the asymmetrical form of the unit front bezel to the casing. The unit installation
depth is approx. 211 mm.
1. Push the unit through the front of the panel cut-out. In order to avoid overheating
we recommend a spacing of > 10 mm to the rear and other units.
2. Hold the unit horizontally and fix the jackscrews into their respective slots.
(top/bottom or left/right).
3. Tighten the jackscrews evenly using a screwdriver.
Hint:
Further support is only required if the panel material is very thin.
Attention:
Distance the units from strong magnetic fields (check technical data: interference
protection). Surrounding ingress protection to classification IP 54.
Ambient temperature range: 0..50 °C, max. 57 % relative humidity without
condensation.
4. Installation/connection/setting up

4.1 Installation

4.2 Ambient conditions
