6. Handling in operation

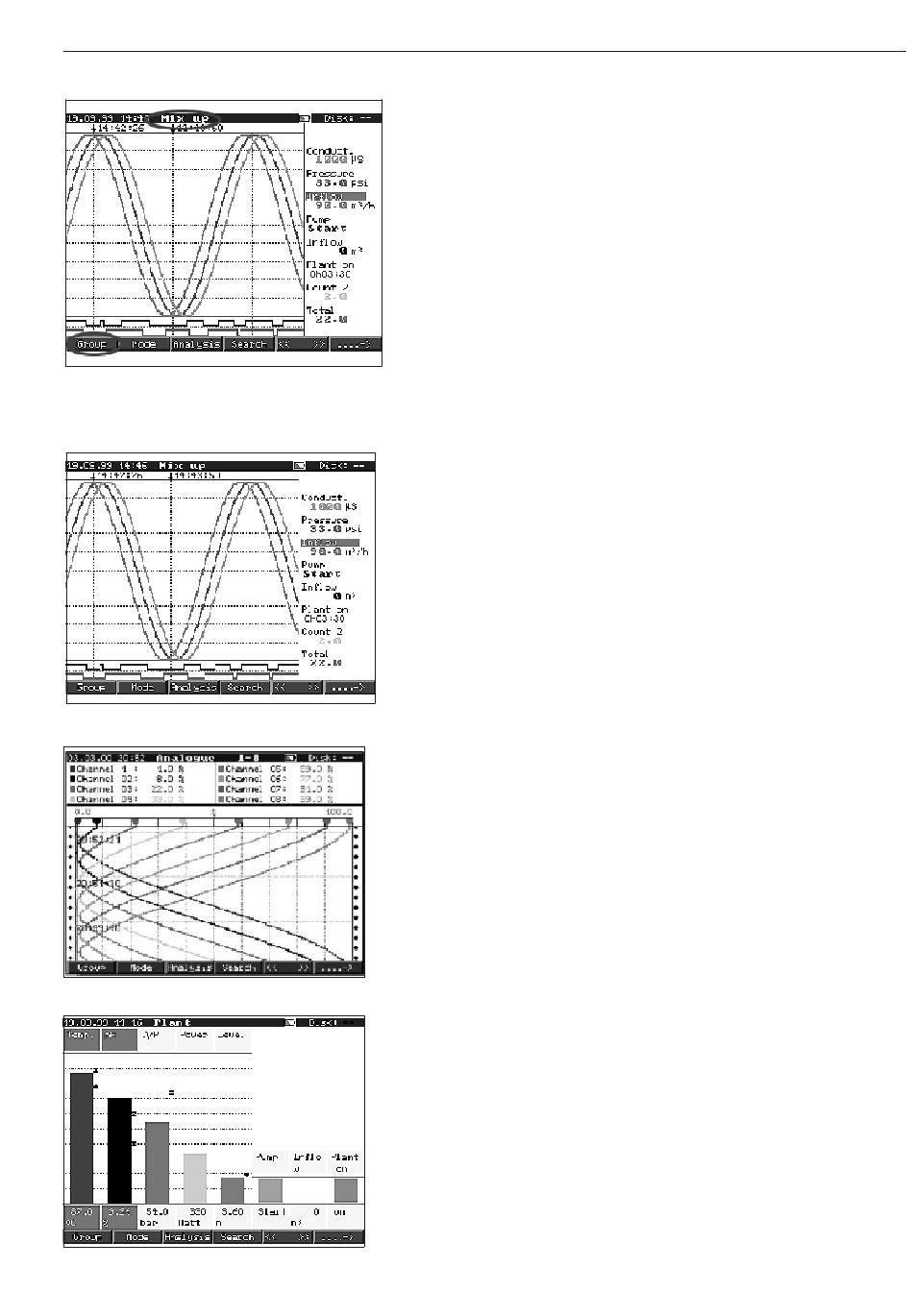

Group:
Selection of measurement point group
to be displayed.
- Measurement point (analogue and
digital) can be combined into groups
(see "Set up - make groups"). This
makes fast access to plant areas/
signals that need to be displayed
together possible.
- All relevant measurement points are
seen together (e.g. all temperatures,
plant 1 measurement points, ...).
- If the group has been renamed a
relevant name such as "Analogue
channels", "Temperatures" etc. is
displayed instead of "Group x". (e.g.
"Calculated values")
Mode:
Selection of how the chosen signal
group is to be displayed. This means
the best possible display mode for the
active signal group can be chosen.
Individual channel groups are always
displayed in the last selected mode. So
only the group of interest needs to be
selected and the required display mode
is active.
Plot:
The channels are displayed horizontal
using the complete screen width as the
display range.
Plot in zones:
Each channel is allocated its own part
of the screen (horizontal). This means
that channel plots do not cross one
another.
Waterfall:
Same as "Plot" but vertical display
Waterfall in zones:
Same as "Plot in zones" but vertical
display
Bargraph:
The instantaneous value is displayed in
the form of a column (with alarm set
point markers).
83
