The same as in "Zoom start". Here the upper value of the "Zoomed" section is set up.
Example: Transmitter 0-14 pH, required display section 5-9 pH. Set up "9".
Factory default "0". The preset value is added to the real measured value for further
use (display, storage, alarm set point monitor).
The more unwanted interference on the input signal, the higher the value should be
set. Result: fast changes are suppressed (for experts: "low pass 1").
Only used on direct connection of thermocouples. "Internal": Compensation of the
error voltage occurring on the connection terminals by measuring the rear panel
temperature. "External x °C/ °F": Compensation of the error voltage by using
thermostat controlled external comparison points. Recommendation when using
thermocouple type B (Pt30Rh-Pt6Rh): Even without an external comparitor always
set "External (0 °C / 32 °F)" when connecting directly.
Reason: non-linear trace of this thermocouple in the ranges < 50 °C / < 122 °F.
Copies the settings of the actual channel to the selected channel (including alarm set
points). The last two characters of the channel identifier of the target channel are
substituted by the channel number.
• Integration: Setting only required if this analogue measurement point is to be
integrated, e.g. for quantity measurement. For analysis cycles see "Signal analysis".
By using the integration feature quantities (in m3) can be calculated from analogue
signals (e.g. flow in m3/h). Here the required time base must be selected.
Example: ml/s -> time base seconds (s); m3/h -> time base hours (h).
Set up the engineering unit of the value calculated by the integration feature (e.g. m3).

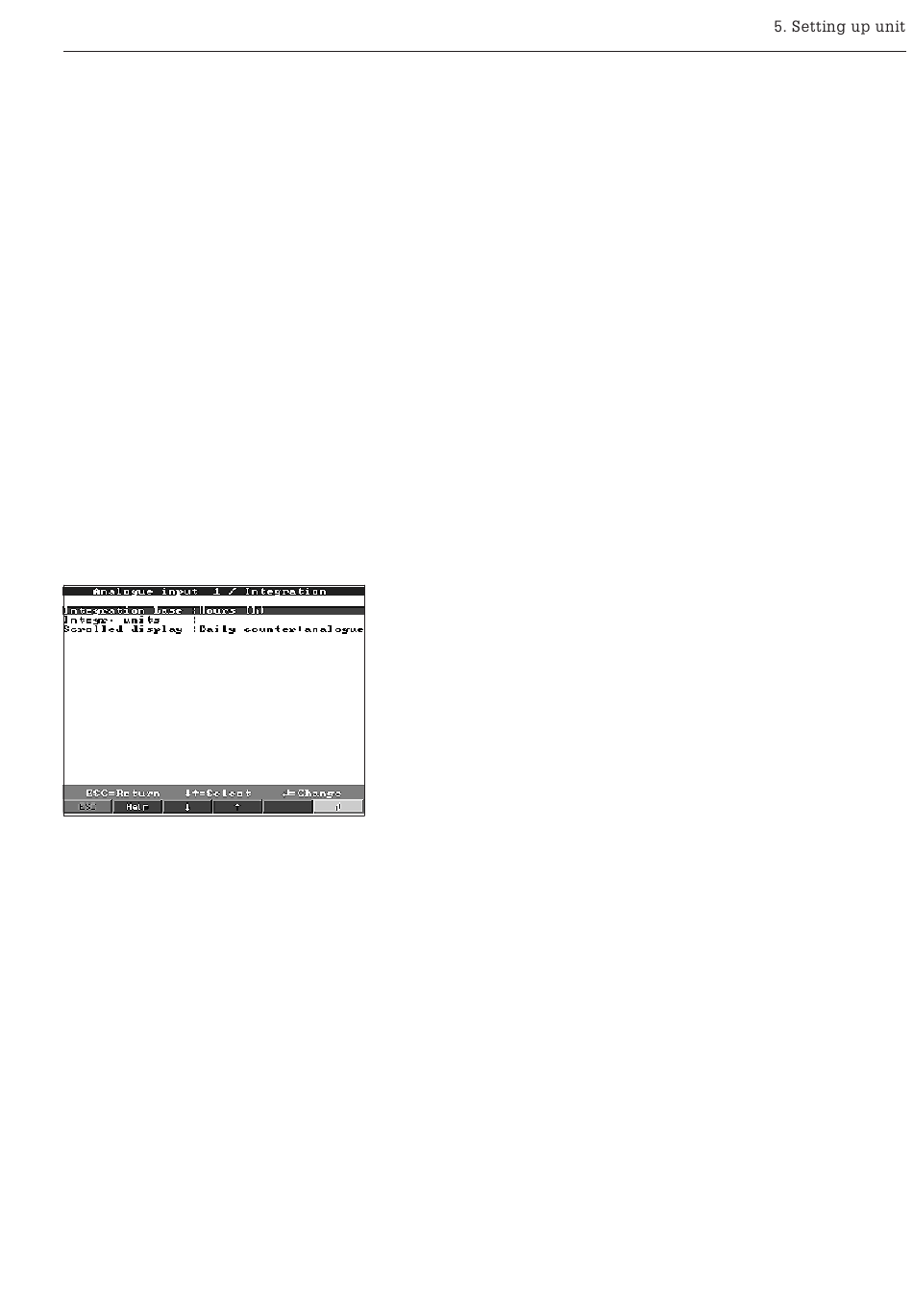

Selection if and with which counter value the instantaneous value is to be alternately
displayed. The analogue value is then displayed for approx. 6 s alternating with the
counter value for approx. 4 s.
Zoom end
Offset
Damping/filter
Cold junction
compensation
Copy set up
Integration base
Integration engineering
units
Scrolled display
