Slave address
Index Input _Data
Data type
66

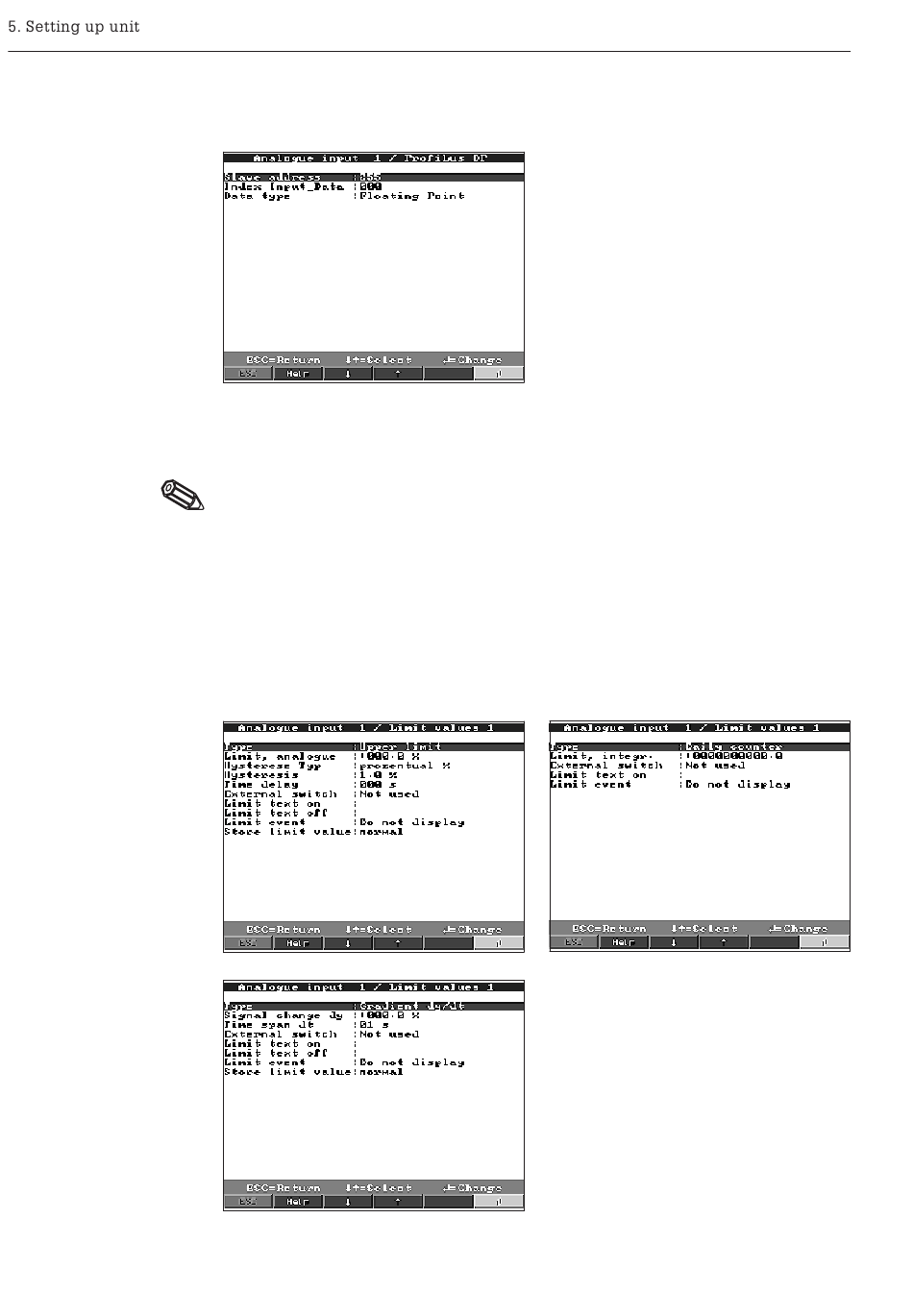

• Profibus DP (option): Setting up only required if a PROFIBUS measurement point is
to be used by this channel.
Select the address of the respective sensor. Every sensor "slave" must have an
individual address. The measured value (the digital bus signal) is handled the same
as any conventional analogue measurement point.
Hint: If the slave supplies more than one set of measurements ("Input Index Data" on
multiparameter sensors), each measurement requires an individual channel.
Position, where the measured value information starts in the PROFIBUS transmitter
data set. On single channel units: "000". Please also note details in the sensor
operating manual.
Mostly "Floating Point". Please note the details in the sensor operating manual.
• Limits: Setting up only required if limits are to be monitored on this channel.
