Siemens SIMATIC NET RUGGEDCOM RX5000 Konfigurationshandbuch Seite 491

Layer 2
8.1.6 RMON-Portstatistik anzeigen
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

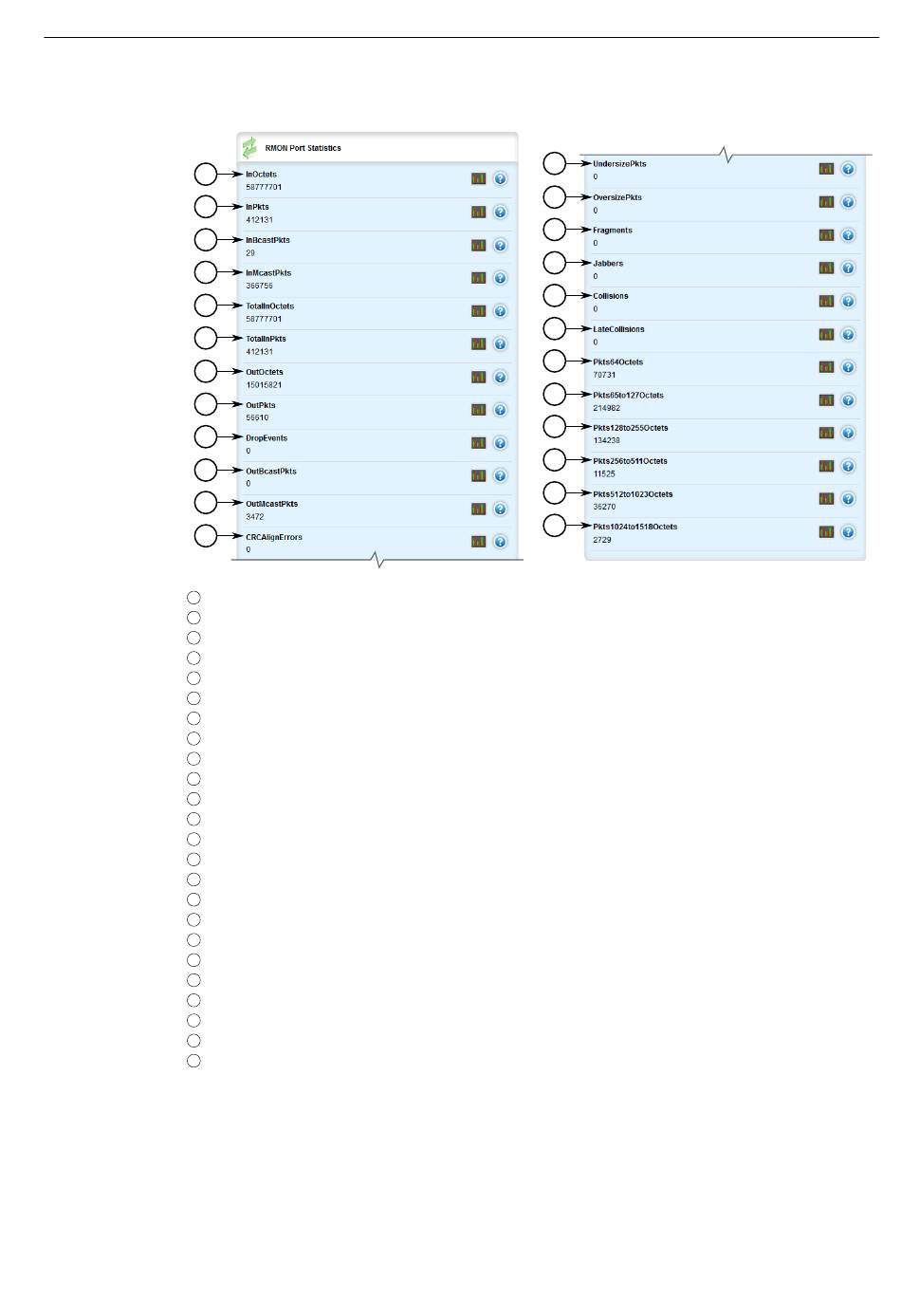

Abbildung 8.10
Dieses Formular liefert die folgenden Informationen:
446
"InOctets"
"InPkts"
InBcastPkts
InMcastPkts
TotalInOctets
TotalInPkts
"OutOctets"
"OutPkts"
DropEvents
OutBcastPkts
OutMcastPkts
CRCAlignErrors
UndersizePkts
OversizePkts
Fragments
Jabbers
Collisions
LateCollisions
Pkts64Octets
Pkts65to127Octets
Pkts128to255Octets
Pkts256to511Octets
Pkts512to1023Octets
Pkts1024to1518Octets
Formular "RMON Port Statistics"
13
14
15
16
17
18
19
20
21
22
23
24
RUGGEDCOM ROX II v2.15 Weboberfläche
Konfigurationshandbuch, 05/2022, C79000-G8900-1534-02
