7.2 LIFT PNEUMaTIC DIaGraM

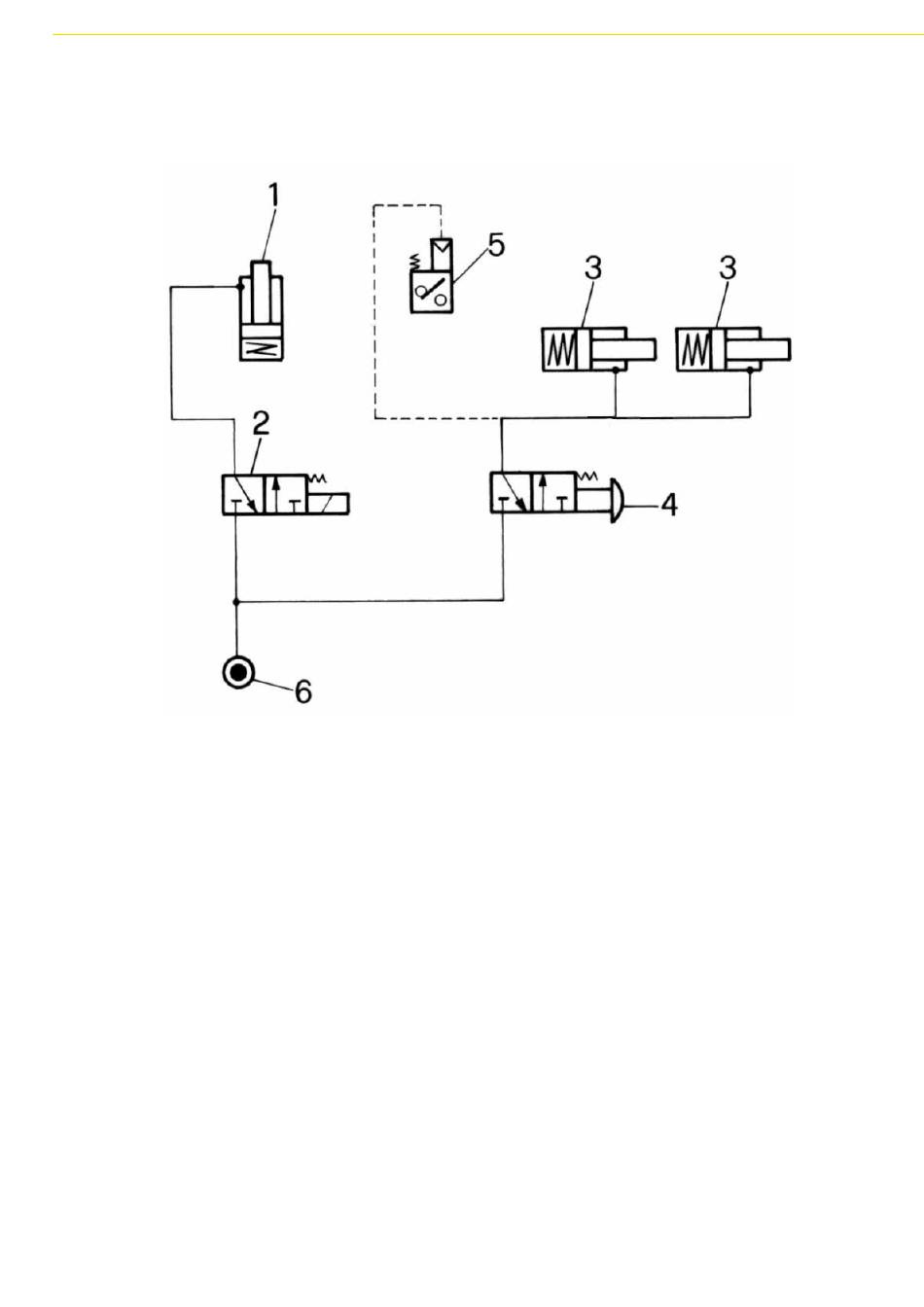

The operating diagram of the MULTIBENCH pneumatic system consists of a circuit with the following main components:
1)
Fall-proof safety hook release cylinder.
2)
Automatic control three-way valve for fall-proof safety
I
FIGURA 14 SCHEMA PNEUMATICO MINIBENCH-MAXI
hook release cylinder.
3)
Pull arm block release cylinders.
GB
FIGURE 14 MINIBENCH-MAXI PNEUMATIC DIAGRAM
4)
Manual control three-way valve for pull arm block
release cylinder.
F
FIGURE 14 SCHEMA PNEUMATIQUE DU MINIBENCH-MAXI
5)
Pneumo-electric transducer for controlling pull arm
block cylinder.
D
ABBILDUNG 14 PNEUMATIK MINIBENCH-MAXI
6)
Supply air intake.
E
FIGURA 14 ESQUEMA NEUMÁTICO DEL MINIBENCH-MAXI
OPERATION
When the descent button is pressed on the control
console, the compressed air from the regulator-lubricator
(not supplied) positioned at the inlet of the supply line (6)
is sent through the three-way valve (2) to the cylinder (1)
which releases the fall-proof safety hook. When the control
is released, the valve connects the air duct to the outlet,
permitting automatic insertion of the safety hook by means
of the return spring.
The regulator-lubricator unit is not supplied by the
manufacturer as it is an integral part of the bodyshop
compressed air supply system.
