The main parts of the lifter are (figure 2):
1)
Lowered platform
2)
Platform
3)
Rocker arm
4)
External lever
5)
Internal lever
6)
Base
7)
Safety retainer
8)
Left rocker arm rod
9)
Right rocker arm rod
11) Hydraulic controlled jack
16) Rocker arm roll bearing
51) Tubes R7 TA ¼ L=5000 FD+FD
53) Pneumatic cylinder for safety hook control
The base frame structure (6- Figure 2) to which all the
stress is transferred consists of a welded steel structure to
which the supports and runners for the sliding wheels of
the pantograph arms and the stops for the safety hook are
fitted.
The upper mobile platform (2) is made up of a welded
steel structure specifically designed to receive the fitting
supports of either four lowered platforms (1) aimed at
supporting the padding boards if included in the package
or the jaws for the vehicle body blocking when the pull arm
is used and to receive the fitting supports of four wheel
support platforms (1) to lift the vehicle.
The lifting system consists of a pair of single-acting
hydraulic jacks (11) which are driven by the electrohydraulic
control unit gear pump.
The pair of jacks operates a mechanism consisting of a
rocker (3) and a pair of connecting rods (8-9) which control
the movement of the pantograph arms (4-5).
The lift is moved up and down by means of the oil under
pressure supplied by the gear pump driven by an electric
motor, both of which mounted in the electrohydraulic control
unit installed inside a control console positioned at a safe
distance from the lift.
The hydraulic circuit, which controls the in and out
1
movements of the rods of the pair of lifting jacks (11), is
provided with a pressure relief valve and a safety lock valve
to protect against the breakage of the flexible pipes (51).
1
The electrical cables that connect the lift to the control
console and the flexible pipes that supply the lift with oil and
1
compressed air are housed in a protective sheath.
The position of the upper part of the lift is maintained by a
safety system consisting of a moving hook (7) automatically
controlled by a pneumatic cylinder that engages a series of
steel blocks welded onto the base sheet as the lift descends.
1
1
1
570
770
570
2
1
1
9
8
5
4
3
16
11
53
6
600
1
1
1
2
1
1
1
570
770
570
1910
11

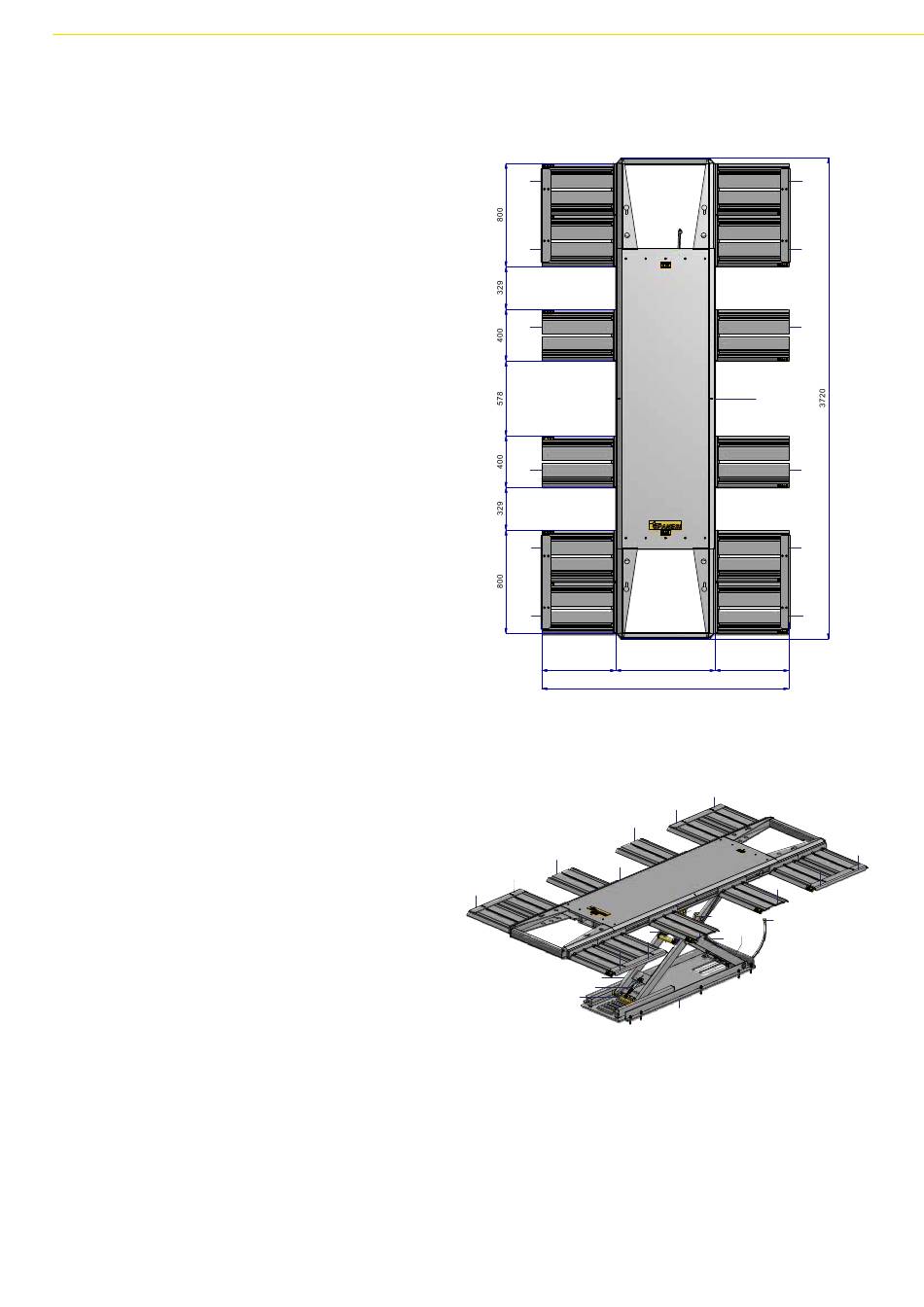

FIGURE 1C: Lifter view from above
