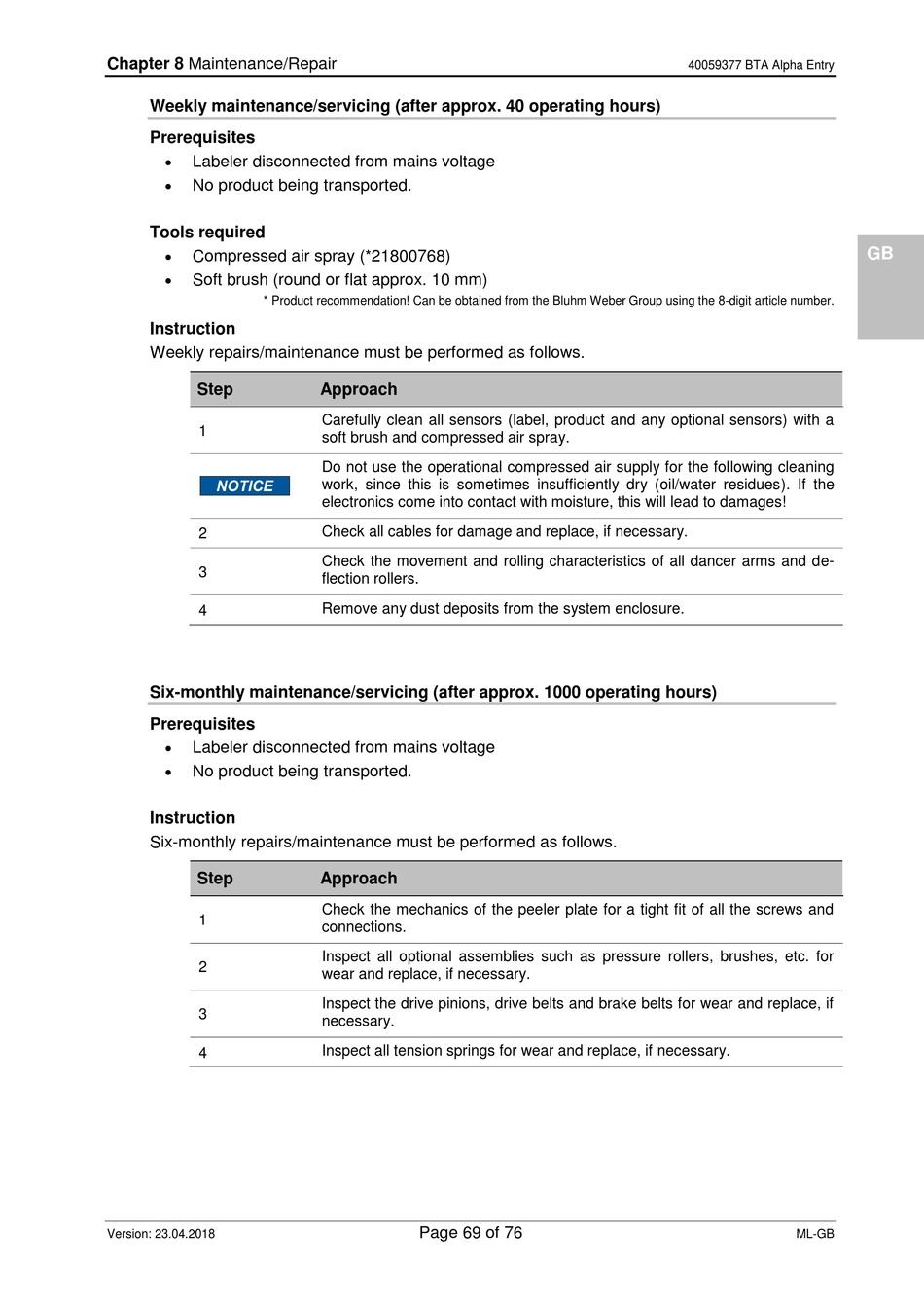

Weekly Maintenance/Servicing (After Approx. 40 Operating Hours); Six-Monthly Maintenance/Servicing (After Approx. 1000 Operating Hours) - Weber Alpha Entry Originalbetriebsanleitung

Chapter 8 Maintenance/Repair

Weekly maintenance/servicing (after approx. 40 operating hours)

Prerequisites

Labeler disconnected from mains voltage

No product being transported.
Tools required

Compressed air spray (*21800768)

Soft brush (round or flat approx. 10 mm)
* Product recommendation! Can be obtained from the Bluhm Weber Group using the 8-digit article number.
Instruction
Weekly repairs/maintenance must be performed as follows.
Step
1
2
3
4

Six-monthly maintenance/servicing (after approx. 1000 operating hours)

Prerequisites

Labeler disconnected from mains voltage

No product being transported.
Instruction
Six-monthly repairs/maintenance must be performed as follows.
Step
1
2
3
4
Version: 23.04.2018
Approach
Carefully clean all sensors (label, product and any optional sensors) with a
soft brush and compressed air spray.
Do not use the operational compressed air supply for the following cleaning
work, since this is sometimes insufficiently dry (oil/water residues). If the
electronics come into contact with moisture, this will lead to damages!
Check all cables for damage and replace, if necessary.
Check the movement and rolling characteristics of all dancer arms and de-
flection rollers.
Remove any dust deposits from the system enclosure.
Approach
Check the mechanics of the peeler plate for a tight fit of all the screws and
connections.
Inspect all optional assemblies such as pressure rollers, brushes, etc. for
wear and replace, if necessary.
Inspect the drive pinions, drive belts and brake belts for wear and replace, if
necessary.
Inspect all tension springs for wear and replace, if necessary.
Page 69 of 76
40059377 BTA Alpha Entry
