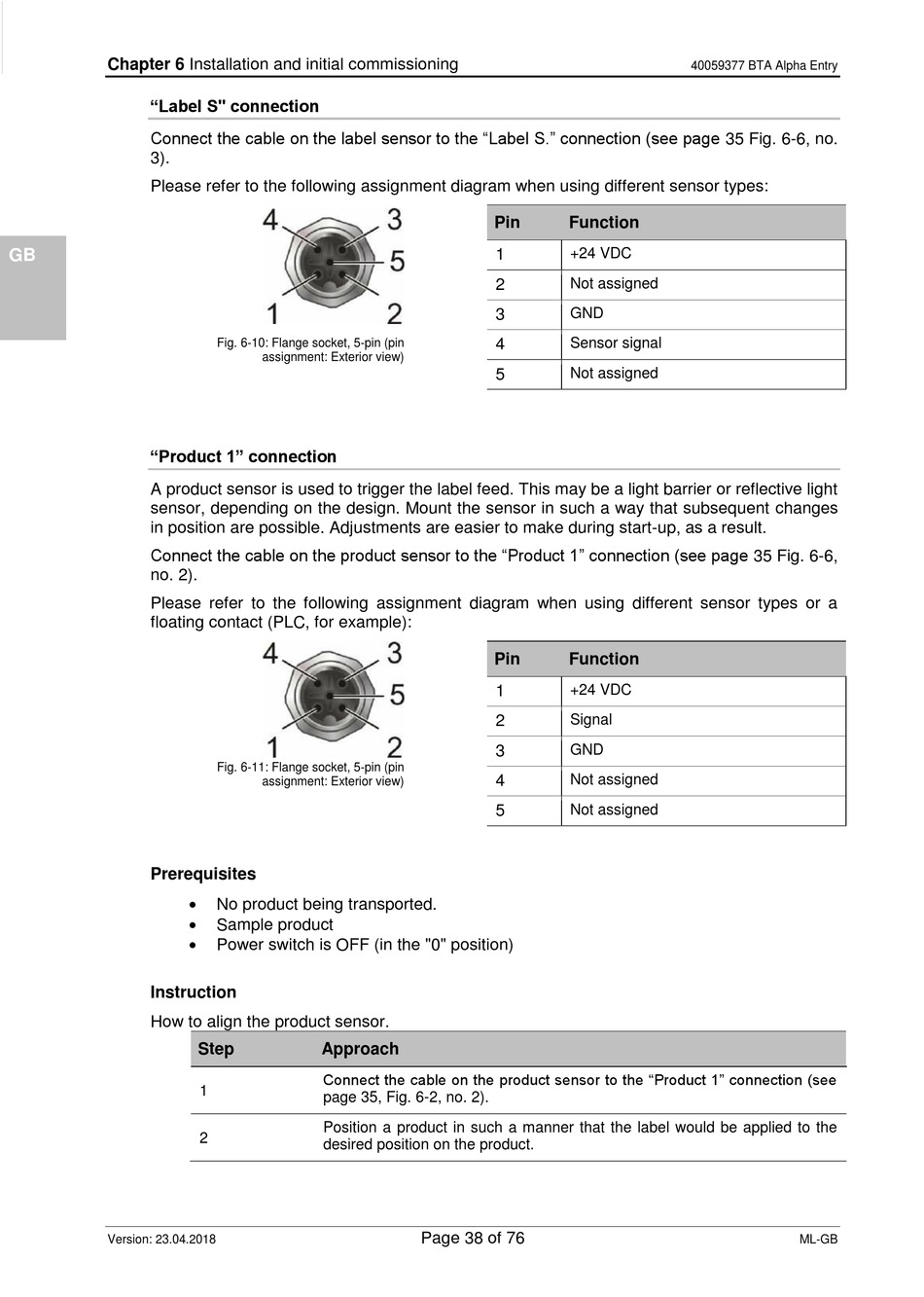

Chapter 6 Installation and initial commissioning

"Label S" connection

DE DE
Connect the cable on the label sensor to the "Label S." connection (see page 35 Fig. 6-6, no.
3).
Please refer to the following assignment diagram when using different sensor types:
GB
FR FR

"Product 1" connection

A product sensor is used to trigger the label feed. This may be a light barrier or reflective light
sensor, depending on the design. Mount the sensor in such a way that subsequent changes
in position are possible. Adjustments are easier to make during start-up, as a result.
NL
Connect the cable on the product sensor to the "Product 1" connection (see page 35 Fig. 6-6,
no. 2).
Please refer to the following assignment diagram when using different sensor types or a
floating contact (PLC, for example):
IT
ES
Prerequisites
RU
Instruction
How to align the product sensor.
Spare
parts
Version: 23.04.2018
Fig. 6-10: Flange socket, 5-pin (pin
assignment: Exterior view)
Fig. 6-11: Flange socket, 5-pin (pin
assignment: Exterior view)

No product being transported.

Sample product

Power switch is OFF (in the "0" position)
Step Approach
Connect the cable on the product sensor to the "Product 1" connection (see
1
page 35, Fig. 6-2, no. 2).
Position a product in such a manner that the label would be applied to the
2
desired position on the product.
Pin Function
1 +24 VDC
2 Not assigned
GND
3
4 Sensor signal
5 Not assigned
Pin Function
1 +24 VDC
Signal
2
3 GND
Not assigned
4
5 Not assigned
Page 38 of 76
40059377 BTA Alpha Entry
