Chapter 7 Operation

SYNC PULSE DELAY (SYNC PULSE DELAY)

DE DE
The SYNC PULSE DELAY parameter is used to delay the synchronisation signal (see SYNC
PULSE TIME above for information). The duration of the delay is equal to the input value x
10 ms (i.e. max. "255" = 2.55 s).
The delay begins at the start or end of the labeling cycle, depending on the SYNC PULSE
TIME setting.

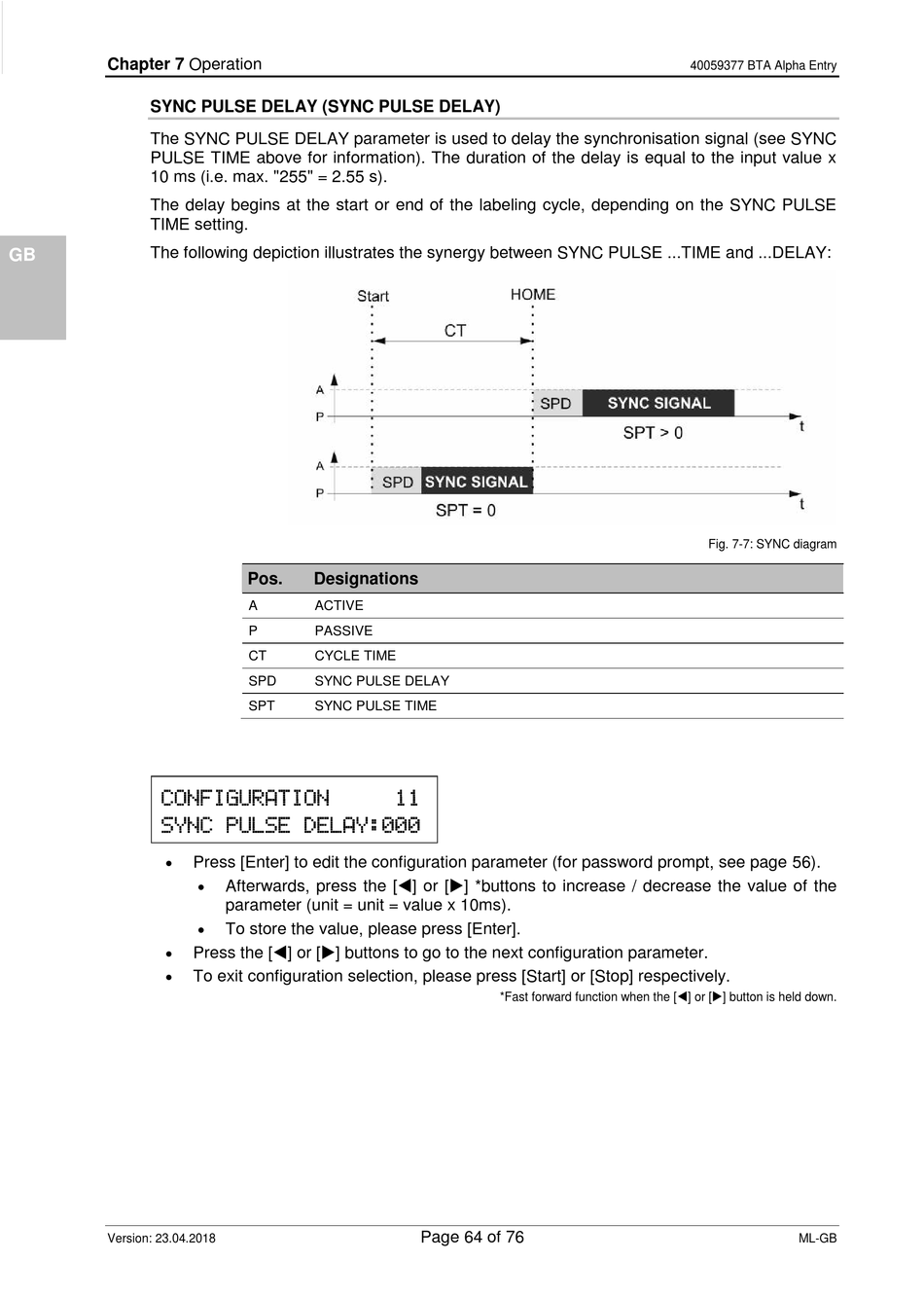

The following depiction illustrates the synergy between SYNC PULSE ...TIME and ...DELAY:
GB
FR FR
NL
IT
ES


RU

Spare
parts
Version: 23.04.2018
Pos. Designations
A ACTIVE
P PASSIVE
CT CYCLE TIME
SPD SYNC PULSE DELAY
SPT SYNC PULSE TIME
Press [Enter] to edit the configuration parameter (for password prompt, see page 56).

Afterwards, press the [] or [] *buttons to increase / decrease the value of the
parameter (unit = unit = value x 10ms).

To store the value, please press [Enter].
Press the [] or [] buttons to go to the next configuration parameter.
To exit configuration selection, please press [Start] or [Stop] respectively.
*Fast forward function when the [] or [] button is held down.
