Chapter 7 Operation

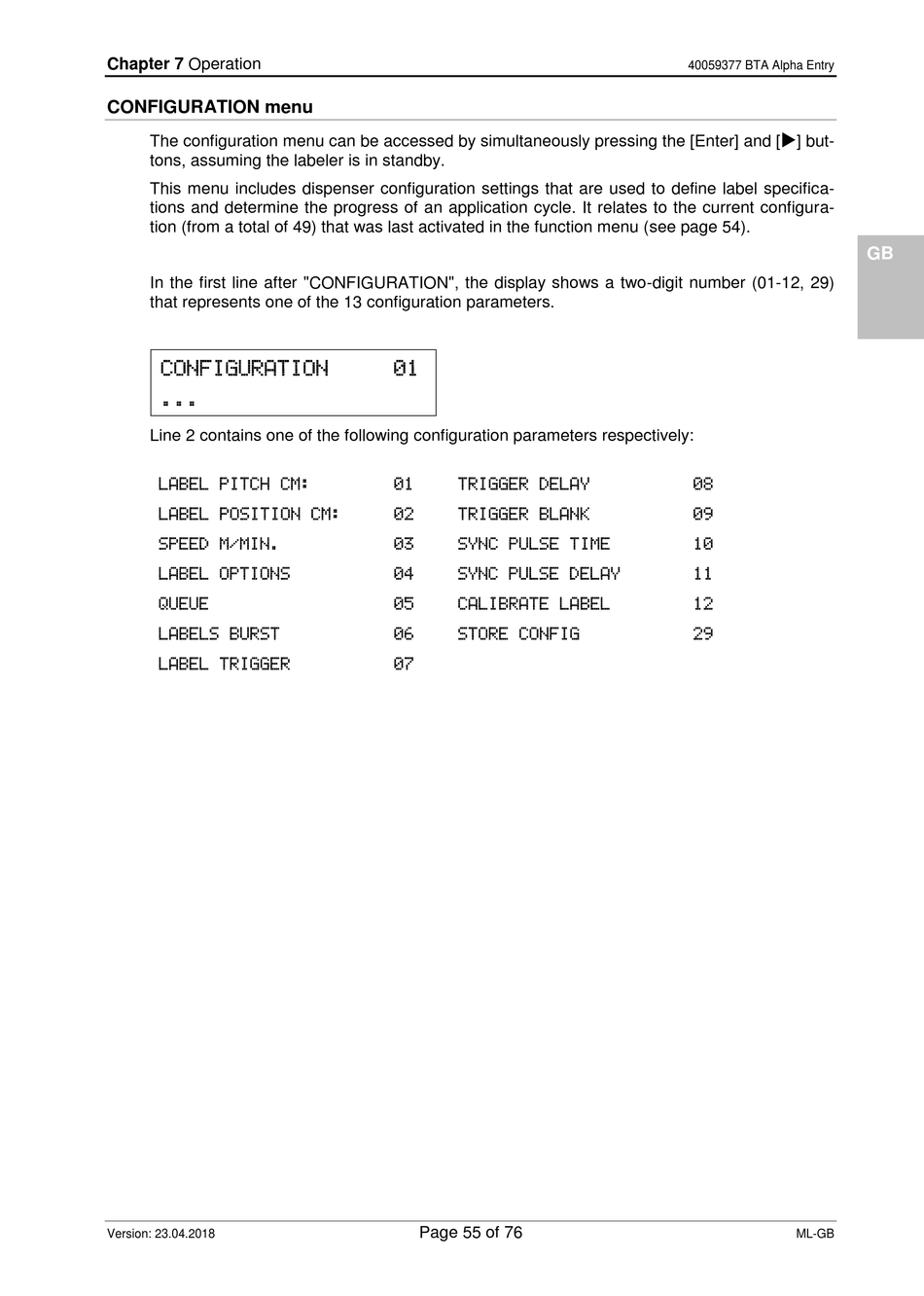

CONFIGURATION menu

The configuration menu can be accessed by simultaneously pressing the [Enter] and [
tons, assuming the labeler is in standby.
This menu includes dispenser configuration settings that are used to define label specifica-
tions and determine the progress of an application cycle. It relates to the current configura-
tion (from a total of 49) that was last activated in the function menu (see page 54).
In the first line after "CONFIGURATION", the display shows a two-digit number (01-12, 29)
that represents one of the 13 configuration parameters.
Line 2 contains one of the following configuration parameters respectively:
Version: 23.04.2018
Page 55 of 76
40059377 BTA Alpha Entry

] but-
