Chapter 6 Installation and initial commissioning

Mounting and positioning the label sensor

The label sensor detects the transition between labels. It is responsible for repeatedly stop-
ping a label on the peel bar in exactly the same place.
No.
1
2
Positioning information
In order to prevent potential detection problems during calibration (see page 41), the sensor
must be positioned over an unprinted area of the label, if possible (if the label is printed). Two
arrows on the sensor housing indicate the detection point on the sensor. Incorrect detection
caused by alternation between bright and dark elements in a printed area can be avoided as
a result. With a die-cut label, the photocells should be moved to the "straightest" label edge
(crosswise).
Prerequisites
 The peeler plate is mounted (see "Mounting the peeler plate", page 29).

Mounting parts and sensor (see supplied mounting accessories).
Tools required

Tools
Instruction
How to fit the label sensor.
Step
1
2
Version: 23.04.2018
Designations
SENSOR HOLDER SCREW
SCREW FOR SECURING THE SENSOR
Approach
Use screw no. 2 (see Fig. 6-4) to secure the label sensor to the sensor hold-
er.
Mount the sensor holder using the screws and nuts provided (see Fig. 6-4,
no. 1).
The label sensor can be adjusted via the slots on the holder.
Page 33 of 76
40059377 BTA Alpha Entry

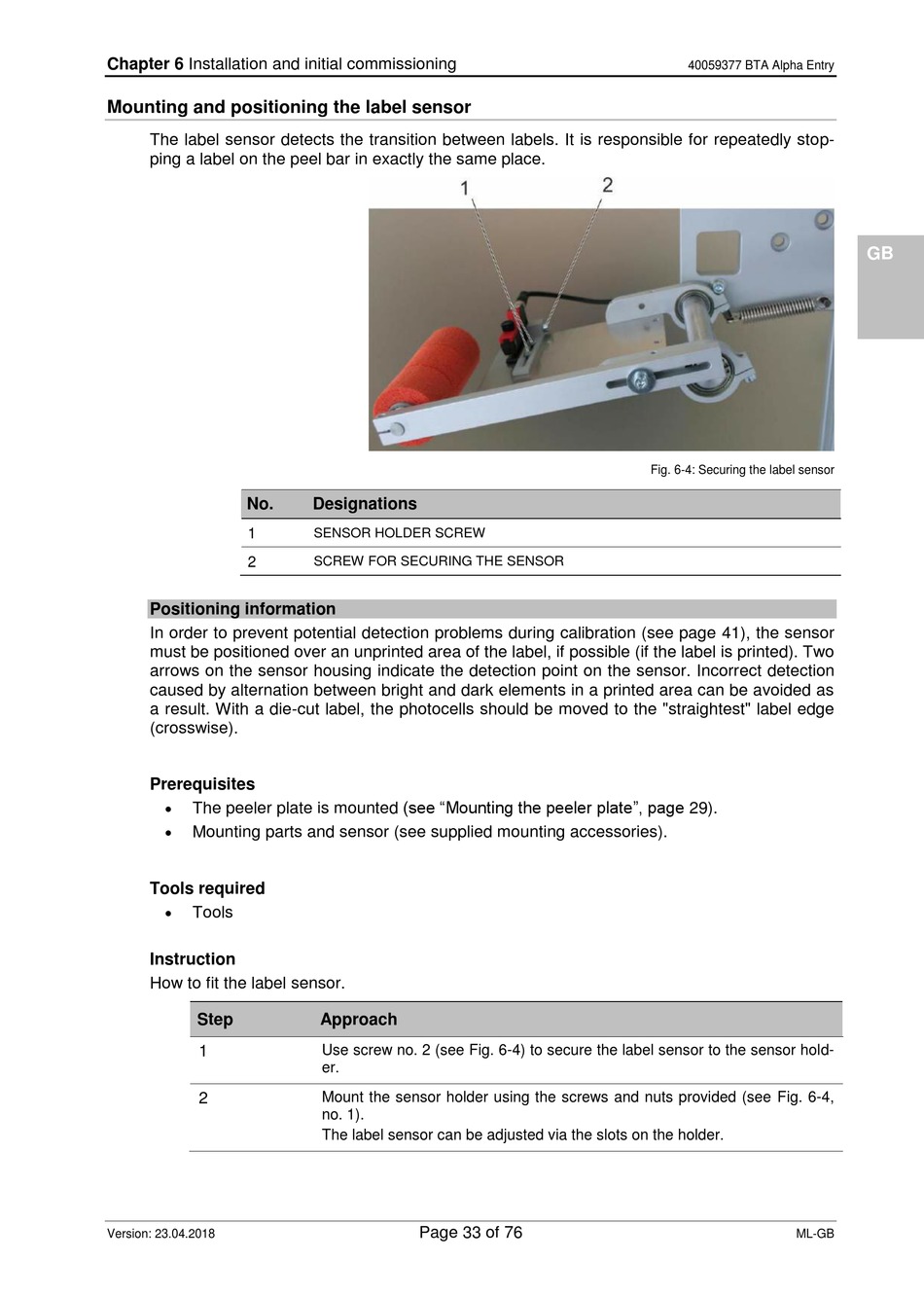

Fig. 6-4: Securing the label sensor
