Chapter 7 Operation

Program menus

DE DE
GB
[]
FR FR
[Enter] + [] = CONFIGURATION MENU *
[] + [] = PROGRAMMING MODE *
Here is a display example for further information:
NL
IT
ES
ERROR ACKNOWLEDGEMENT, see [Start] and [Stop] under "Operation using HMI-..." on
page 46
Display of the firmware version
The current firmware version (firmware = operating system) of the controller is displayed
here.
RU
Label counter
The 5-digit number shows the number of completed application cycles of an operational
phase. The counter is automatically set to "00000" when the labeler is switched on. If a nega-
tive number is shown, the counter will be operating in "Countdown" mode.
Spare
parts
Version: 23.04.2018
PROGRAMMING MODE may only be operated by trained per-
sons!
̶ Incorrect programming may cause malfunctions!
Fig. 7-4: Buttons below the display
+ [Enter] = FUNCTION MENU
Firmware version of the
controller
Label length
in [cm]

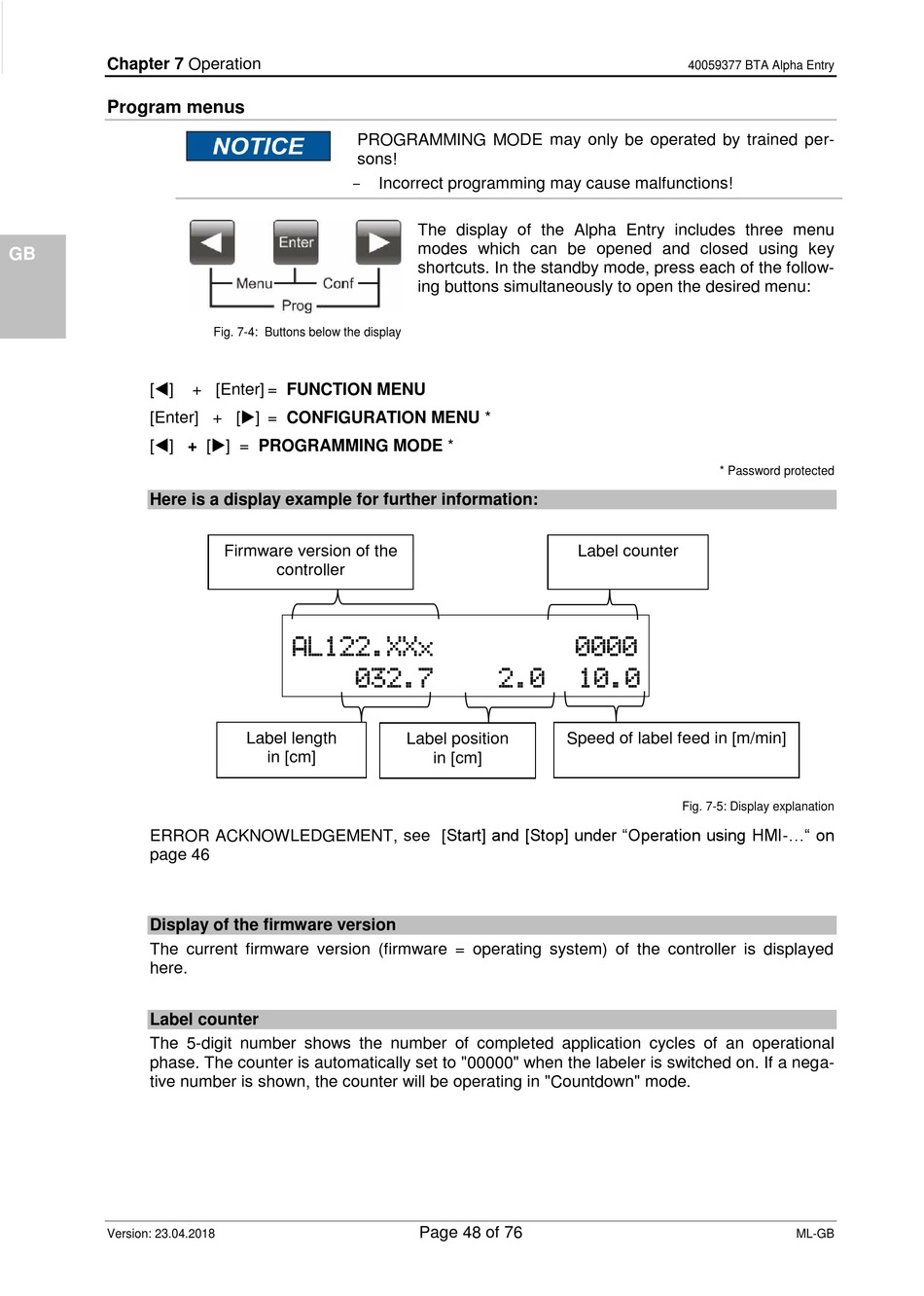

The display of the Alpha Entry includes three menu
modes which can be opened and closed using key
shortcuts. In the standby mode, press each of the follow-
ing buttons simultaneously to open the desired menu:
Label counter
Speed of label feed in [m/min]
Label position
in [cm]
