Chapter 6 Installation and initial commissioning

Connecting the labeler

The labeler only needs electrical power to function. See the details in the Chapter "Technical
specifications".

Overview of the connections on the labeler

The Alpha Entry includes 4 connections (see Fig. 6-6) as standard, which are described on
the following pages. They are located behind the base plate on top of the housing.
No.
1
2
3
4
5
6
Version: 23.04.2018
Do not connect or disconnect electrical connections while
they are under voltage.
̶ Switch off the labeling system before establishing or separat-
ing electrical connections, in order to prevent damage to the
electronics.
Designations
HMI DISPLAY
I/O INTERFACE
PRODUCT SENSOR
LABEL SENSOR
MAIN SWITCH
POWER SUPPLY IEC 320 C14
Page 35 of 76
40059377 BTA Alpha Entry

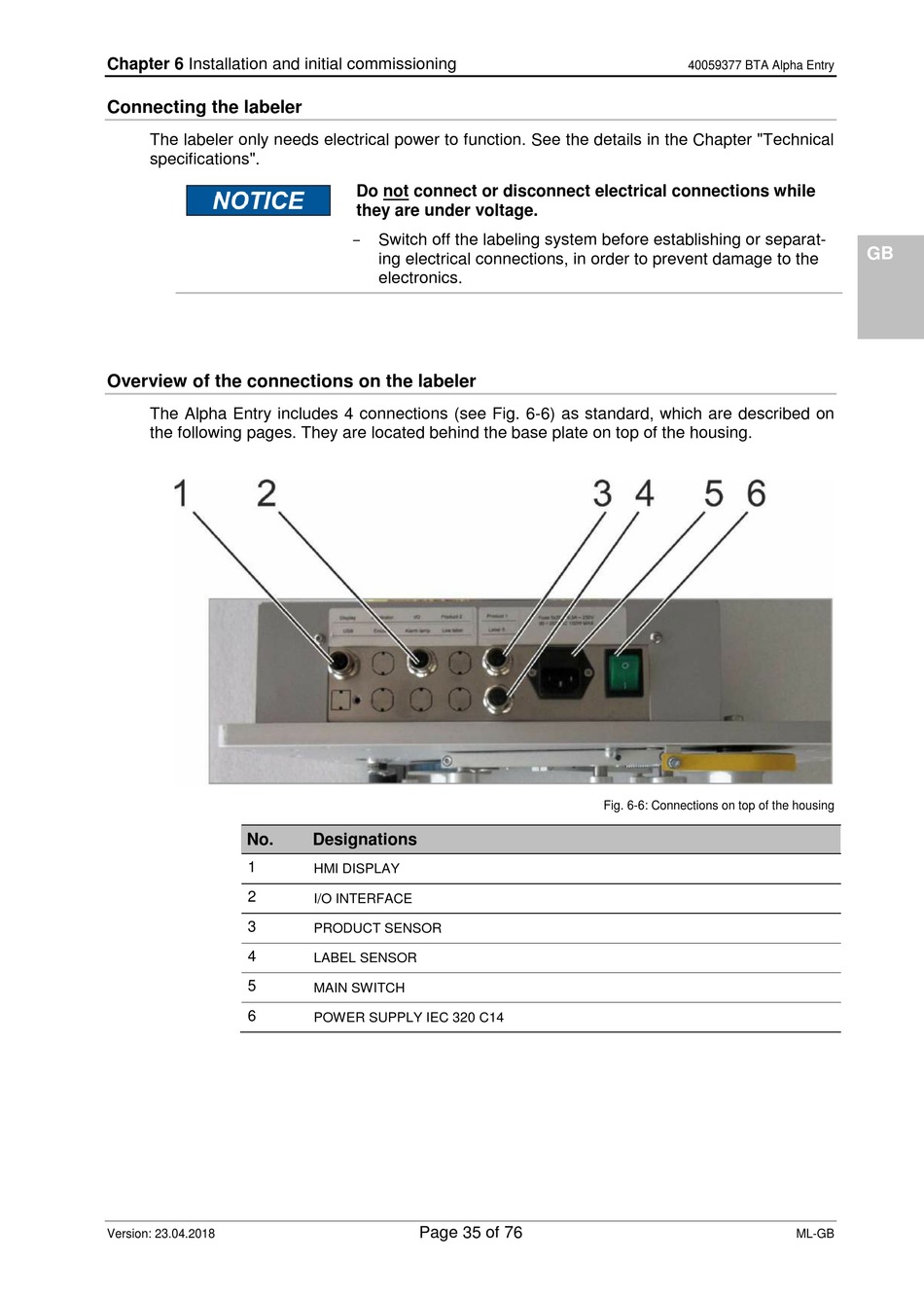

Fig. 6-6: Connections on top of the housing
