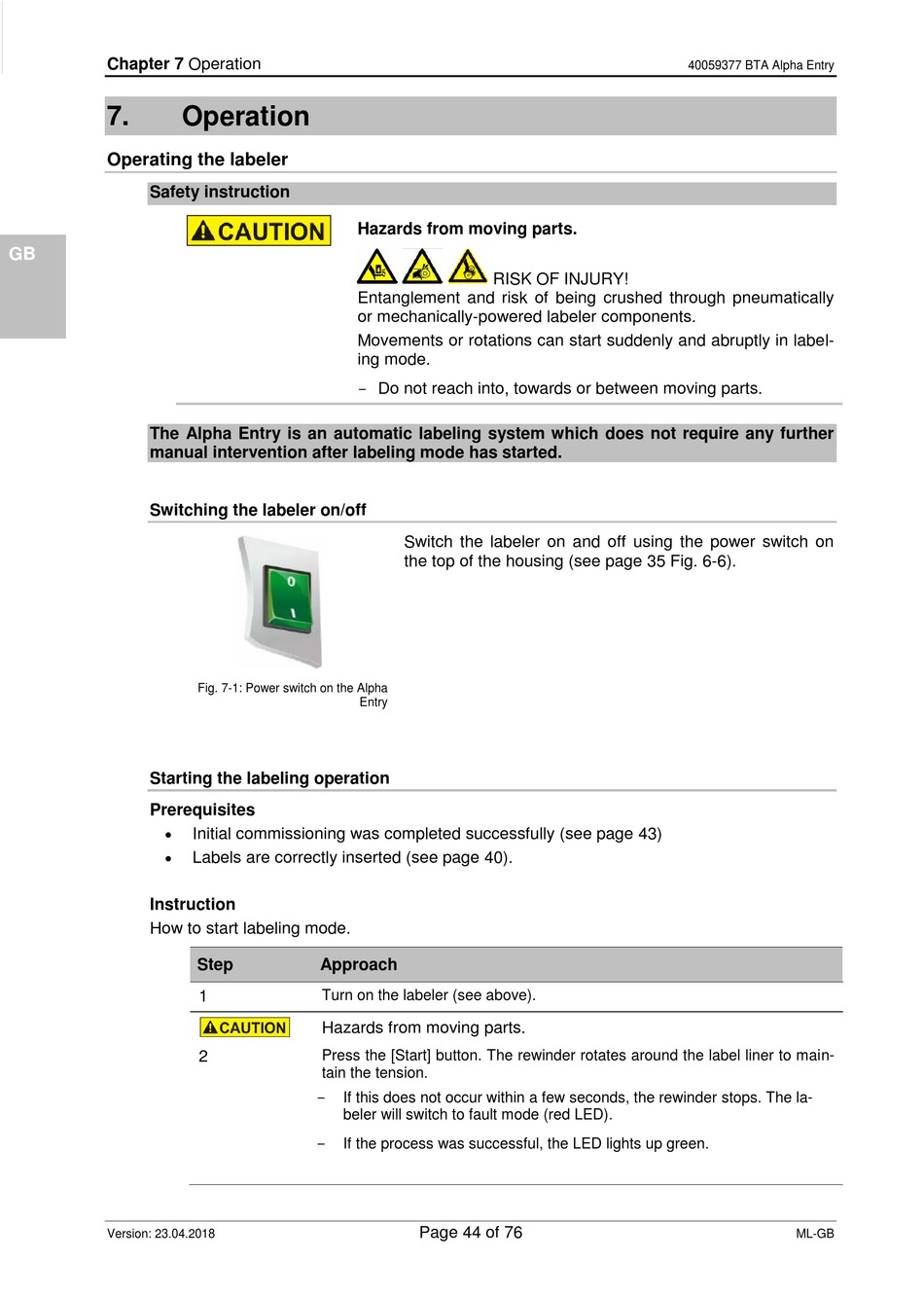

Operation; Operating The Labeler; Safety Instruction; Switching The Labeler On/Off - Weber Alpha Entry Originalbetriebsanleitung

Chapter 7 Operation
DE DE
7.

Operation

Operating the labeler

Safety instruction

GB
FR FR
The Alpha Entry is an automatic labeling system which does not require any further
manual intervention after labeling mode has started.

Switching the labeler on/off

NL
IT

Starting the labeling operation

Prerequisites
ES


Instruction
How to start labeling mode.
RU
Spare
parts
Version: 23.04.2018
Hazards from moving parts.
Entanglement and risk of being crushed through pneumatically
or mechanically-powered labeler components.
Movements or rotations can start suddenly and abruptly in label-
ing mode.
Fig. 7-1: Power switch on the Alpha
Entry
Initial commissioning was completed successfully (see page 43)
Labels are correctly inserted (see page 40).
Step Approach
1 Turn on the labeler (see above).
Hazards from moving parts.
2 Press the [Start] button. The rewinder rotates around the label liner to main-
tain the tension.
̶
If this does not occur within a few seconds, the rewinder stops. The la-
beler will switch to fault mode (red LED).
̶
If the process was successful, the LED lights up green.
RISK OF INJURY!
̶ Do not reach into, towards or between moving parts.
Switch the labeler on and off using the power switch on
the top of the housing (see page 35 Fig. 6-6).
Page 44 of 76
40059377 BTA Alpha Entry
