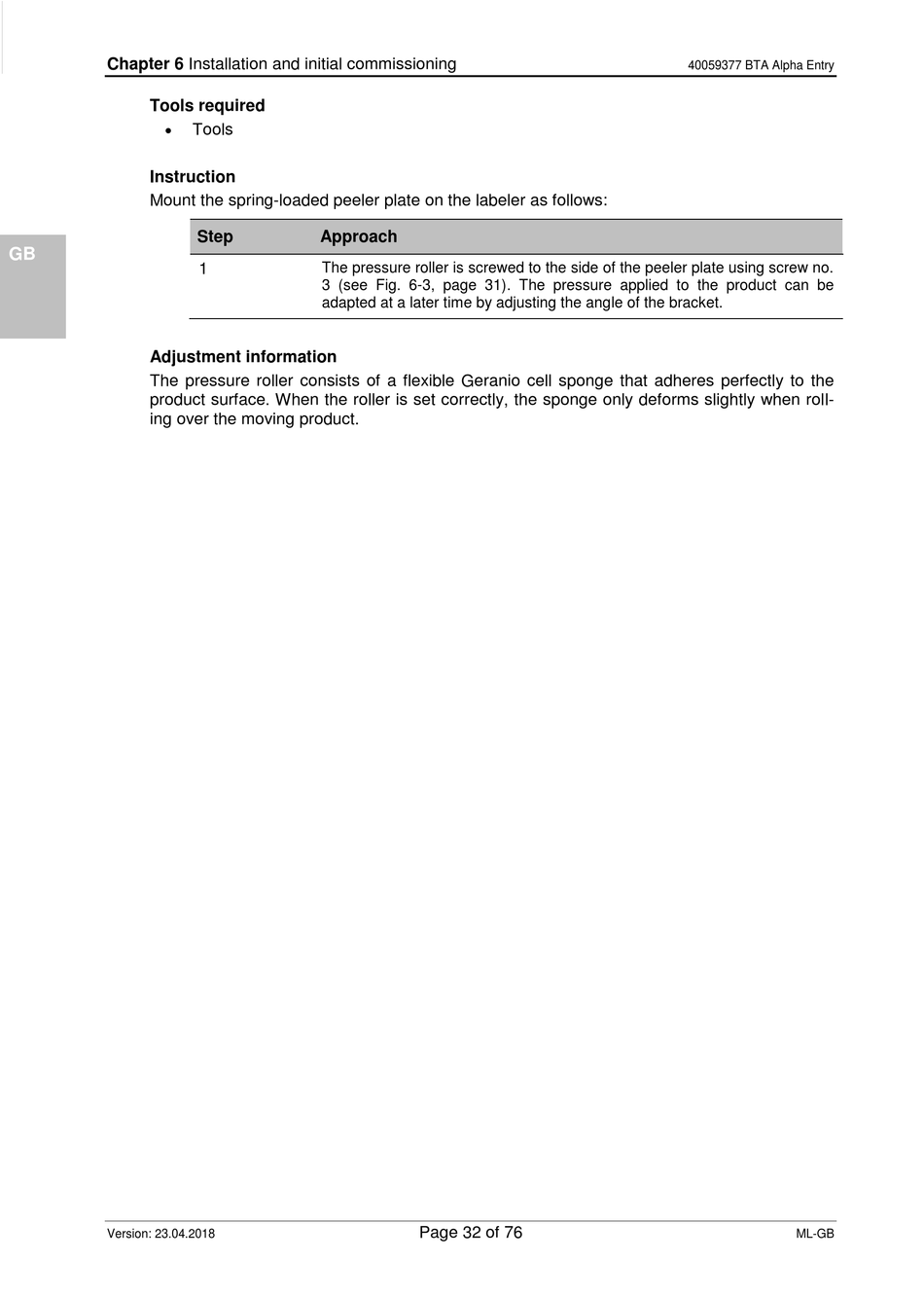

Chapter 6 Installation and initial commissioning
Tools required
DE
DE
Instruction
Mount the spring-loaded peeler plate on the labeler as follows:
GB
Adjustment information
The pressure roller consists of a flexible Geranio cell sponge that adheres perfectly to the
FR
FR
product surface. When the roller is set correctly, the sponge only deforms slightly when roll-
ing over the moving product.
NL
IT
ES
RU
Spare
parts
Version: 23.04.2018
Tools
Step
Approach
1
The pressure roller is screwed to the side of the peeler plate using screw no.
3 (see Fig. 6-3, page 31). The pressure applied to the product can be
adapted at a later time by adjusting the angle of the bracket.
Page 32 of 76
40059377 BTA Alpha Entry
ML-GB
