Chapter 6 Installation and initial commissioning
DE DE

Positioning of the labeler

System mounting on customer own devices
If the system is mounted on a customer own device, both the weight and kinetic forces (from
label feed, etc.) must be taken into consideration. The base plate with fixing points for stand-
GB
ard brackets is illustrated in the diagram below.
During mounting, observe all points regarding the "Positioning of the labeler" on page 27.
FR FR
NL
IT
ES






RU
Spare
parts
Version: 23.04.2018
4x 8 mm holes, 45x45 mm (standard aluminium profile, 90 mm);
3x M8 threaded holes, 96x96 mm (Proget Sistem type flange, 55mm);
4x M8 threaded holes, 80x80 mm (Proget Sistem type flange, 55mm);
4x M10 threaded holes, 118x74 mm (Rose+Krieger flange, type "FK", 60mm);
4x M10 threaded holes, 60x110 mm (Rose+Krieger flange, type "FSB", 60mm);
4x 9 mm holes, 100x475 mm (Bluhm Weber Group hinge adaptations for "U-arm").

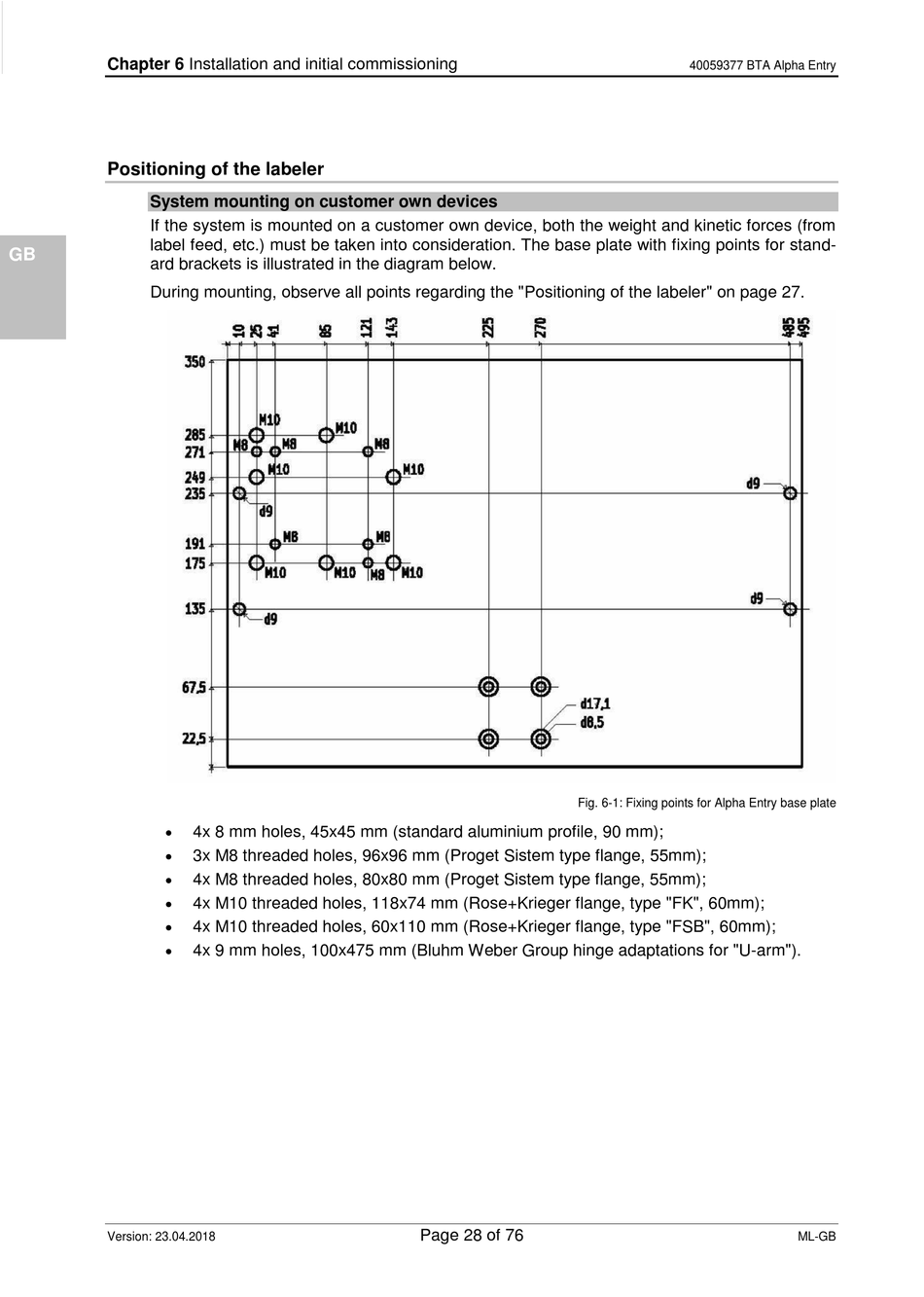

Fig. 6-1: Fixing points for Alpha Entry base plate
Page 28 of 76
40059377 BTA Alpha Entry
