• Always lock the caster Steer-Lock knob and casters when you change the cot height to avoid the risk of the product
tipping.
C C A A U U T T I I O O N N - - Do not apply the steer lock and attempt to push the product sideways.
N N o o t t e e
• You can apply or release the caster Steer-Lock from either side of the base frame.
• Always release the caster Steer-Lock when you load the product into the cot fastener. This allows the head end casters
to swivel freely so that the head end of the cot aligns with the fastener.
To apply the Steer-Lock, rotate the red locking knob into the locked position. Push the cot forward so the head end casters
swivel and lock into position.
To release the Steer-Lock, rotate the red locking knob into the unlocked position. Push the cot in any direction. Make sure
that the casters swivel freely.
C C o o n n n n e e c c t t i i n n g g t t h h e e l l i i t t t t e e r r t t o o t t h h e e b b a a s s e e
You can attach the Model 6100-031-000 knee Gatch litter and the Model 6100-033-000 flat foot section litter in either
direction.
To connect the removable litter to the base (Figure 15):
1. Lower the litter onto the base.
2. Align the roller guides on the litter with the center base tube.
3. Push the litter forward toward the head end to attach to the litter retention brackets.
4. Make sure that you lock the litter onto the base before you release your grip on the litter.
EN 22
A

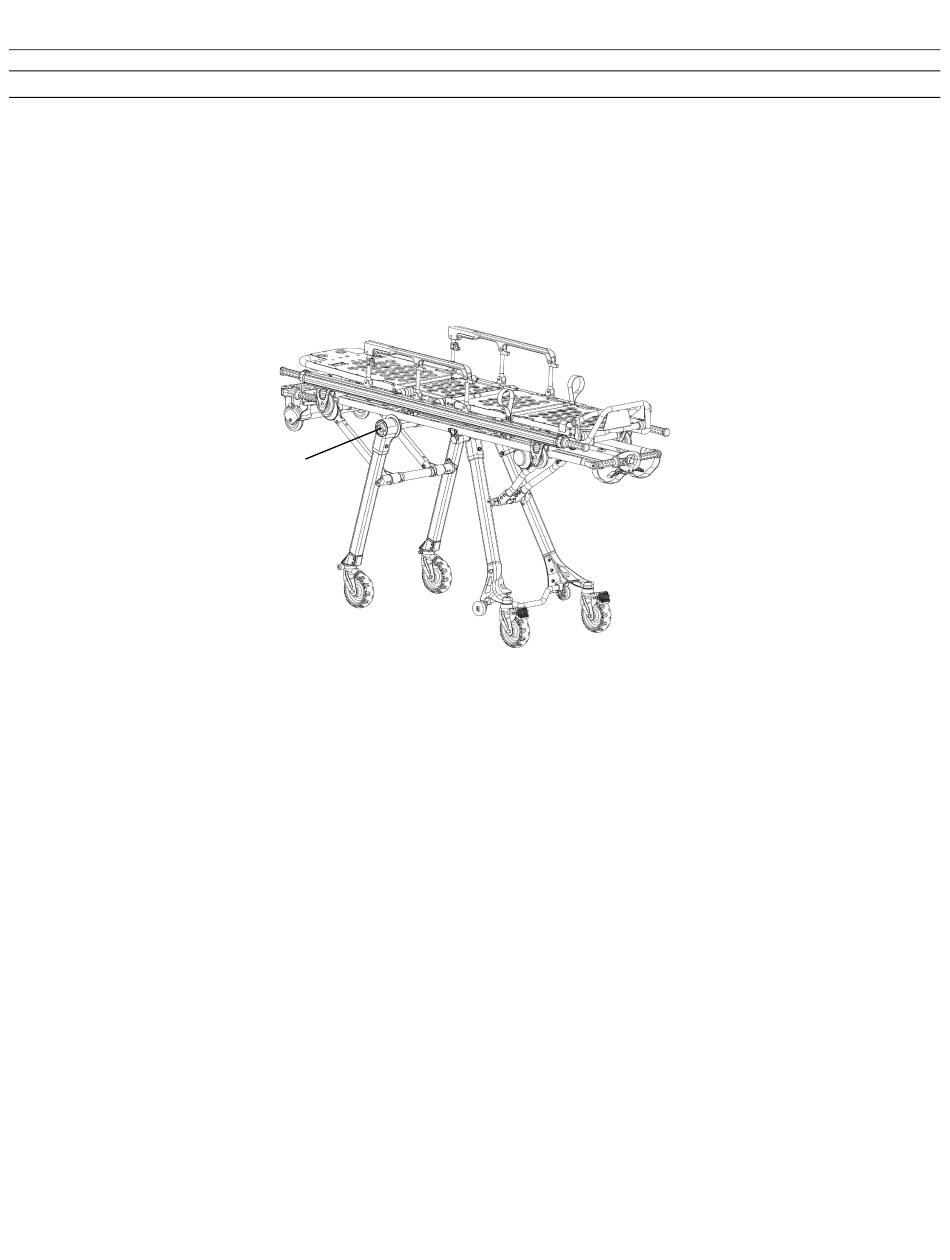

F F i i g g u u r r e e 1 1 4 4 – – S S t t e e e e r r - - L L o o c c k k k k n n o o b b l l o o c c a a t t i i o o n n
