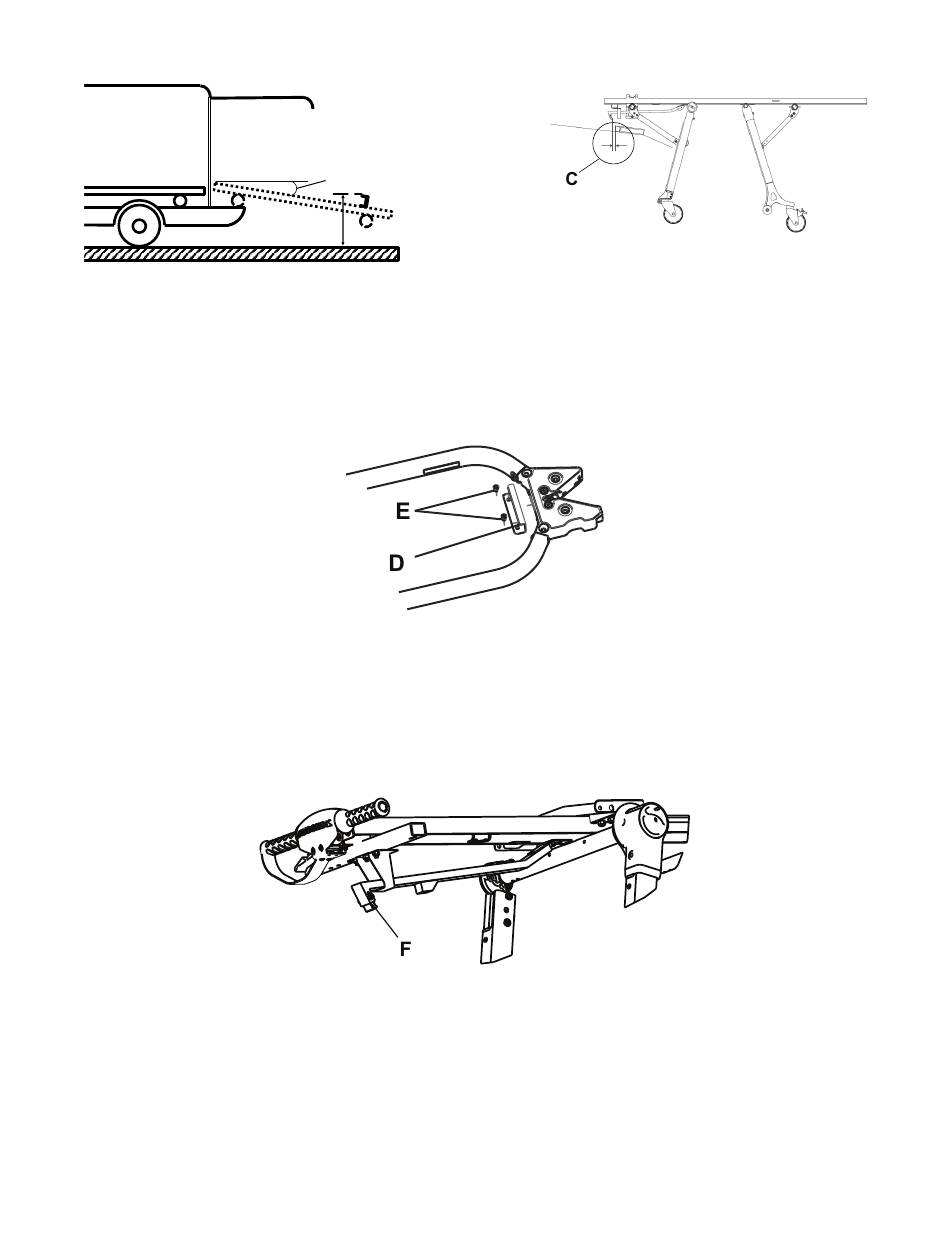

F F i i g g u u r r e e 9 9 – – C C a a t t c c h h p p l l a a t t e e a a n n d d l l o o a a d d i i n n g g t t r r a a y y s s p p e e c c i i f f i i c c a a t t i i o o n n s s

P P r r o o c c e e d d u u r r e e : :

1. Using an M6 Allen key, install the supplied catch plate (610000010015) (D) and two M6 Allen bolts (E) (not included)

directly behind the cot fastener latch (Figure 11).

N N o o t t e e - - Before you drill the two holes for the M6 Allen bolts, make sure that there is free space under the table to avoid

product or vehicle damage.

2. Test unloading the cot from a vehicle to confirm that the safety hook connects with the catch plate. Using an M5 Allen

key, adjust the hook tip (F), as needed, to make sure that the safety hook and catch plate connect while unloading

(Figure 12).

N N o o t t e e - - Push the cot legs against the loading tray when you test unloading.

6100-109-005 Rev AA.0

F F i i g g u u r r e e 1 1 0 0 – – S S a a f f e e t t y y h h o o o o k k a a n n d d c c a a t t c c h h p p l l a a t t e e c c l l e e a a r r a a n n c c e e

F F i i g g u u r r e e 1 1 1 1 – – C C a a t t c c h h p p l l a a t t e e

F F i i g g u u r r e e 1 1 2 2 – – H H o o o o k k t t i i p p a a d d j j u u s s t t m m e e n n t t
