I I n n s s t t a a l l l l i i n n g g t t h h e e s s a a f f e e t t y y h h o o o o k k o o p p t t i i o o n n
S S a a f f e e t t y y h h o o o o k k k k i i t t ( ( 6 6 1 1 0 0 0 0 0 0 0 0 0 0 1 1 0 0 0 0 0 0 1 1 ) ) : :
(1) Hook arm assembly (610000010016)
(1) Guide bracket (610000010008)
T T o o o o l l s s r r e e q q u u i i r r e e d d ( ( m m e e t t r r i i c c o o r r i i m m p p e e r r i i a a l l ) ) : :
Blue L L o o c c t t i i t t e e ® 242
T27H star key
M4 Allen key or 5/32" hex wrench
M6 Allen key or 1/4" hex wrench
P P r r o o c c e e d d u u r r e e : :
1. Apply the brakes (see Applying or releasing a wheel lock (page 21)).
2. Lower the base frame to any mid height position (see Changing the cot height (page 17)).
3. Remove the litter from the cot.
4. Lay the cot base frame on its side for easy access to components.
N N o o t t e e - - Place a towel or sheet under the cot to protect from scratches or damage.
EN
12

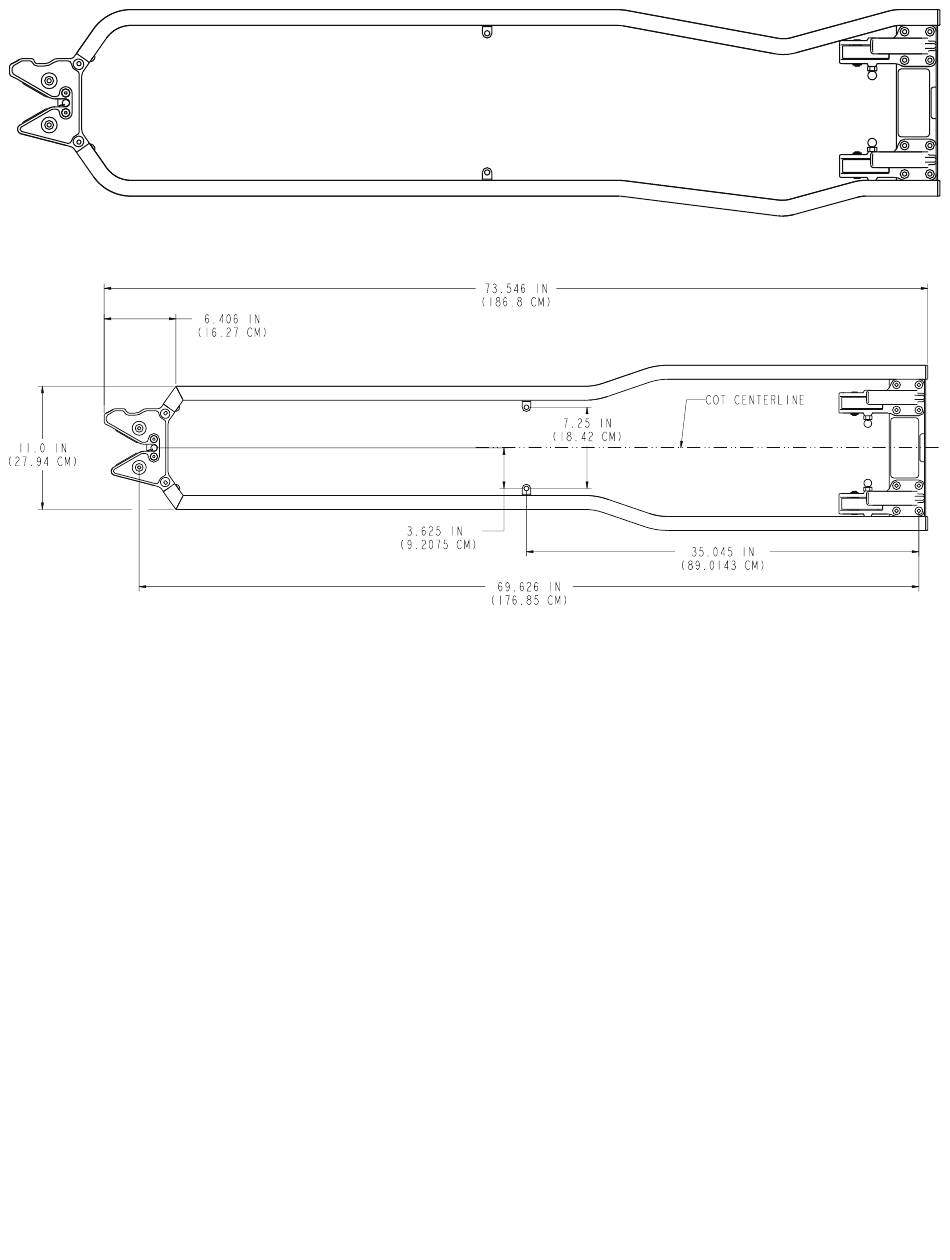

F F i i g g u u r r e e 4 4 – – M M o o d d e e l l 6 6 3 3 7 7 3 3 : : V V i i e e w w 2 2 C C
F F i i g g u u r r e e 5 5 – – M M o o d d e e l l 6 6 3 3 7 7 3 3 : : V V i i e e w w 2 2 D D
(1) Roller assembly (610000010011)
M11 spanner or 7/16" wrench
M13 spanner or 1/2" wrench
M16 spanner or 5/8" wrench
Torque wrench
6100-109-005 Rev AA.0
