I I n n s s t t a a l l l l a a t t i i o o n n
I I n n s s t t a a l l l l i i n n g g t t h h e e c c o o t t f f a a s s t t e e n n e e r r
The Stryker Model 6373, 6376, and 6381 cot fastener systems are compatible only with cots that conform to the installation
specifications. Cots that meet these specifications include:
• Stryker Model 6100 M M - - 1 1 Roll-In System
• Ferno-Washington Model X-2
W W A A R R N N I I N N G G
• Always replace the cot fastener if it has been involved in an accident to avoid the risk of injury due to product damage.
• Always make sure that all cots meet the installation specifications for the Stryker cot fastener system.
C C A A U U T T I I O O N N - - Always install the cot fastener by qualified personnel only to be in conformance to this standard. 1/4" steel
backing plates (or equivalent) are required beneath the mounting surface (ambulance floor or tray system) at all mounting
points.
For more information about the Stryker cot fastener systems, see the M M - - 1 1 Cot Fastener Operations and Maintenance
Manuals.
1 2000 model year or earlier. Stryker is not responsible for changes in specifications to other manufacturer's cots.
6100-109-005 Rev AA.0
1

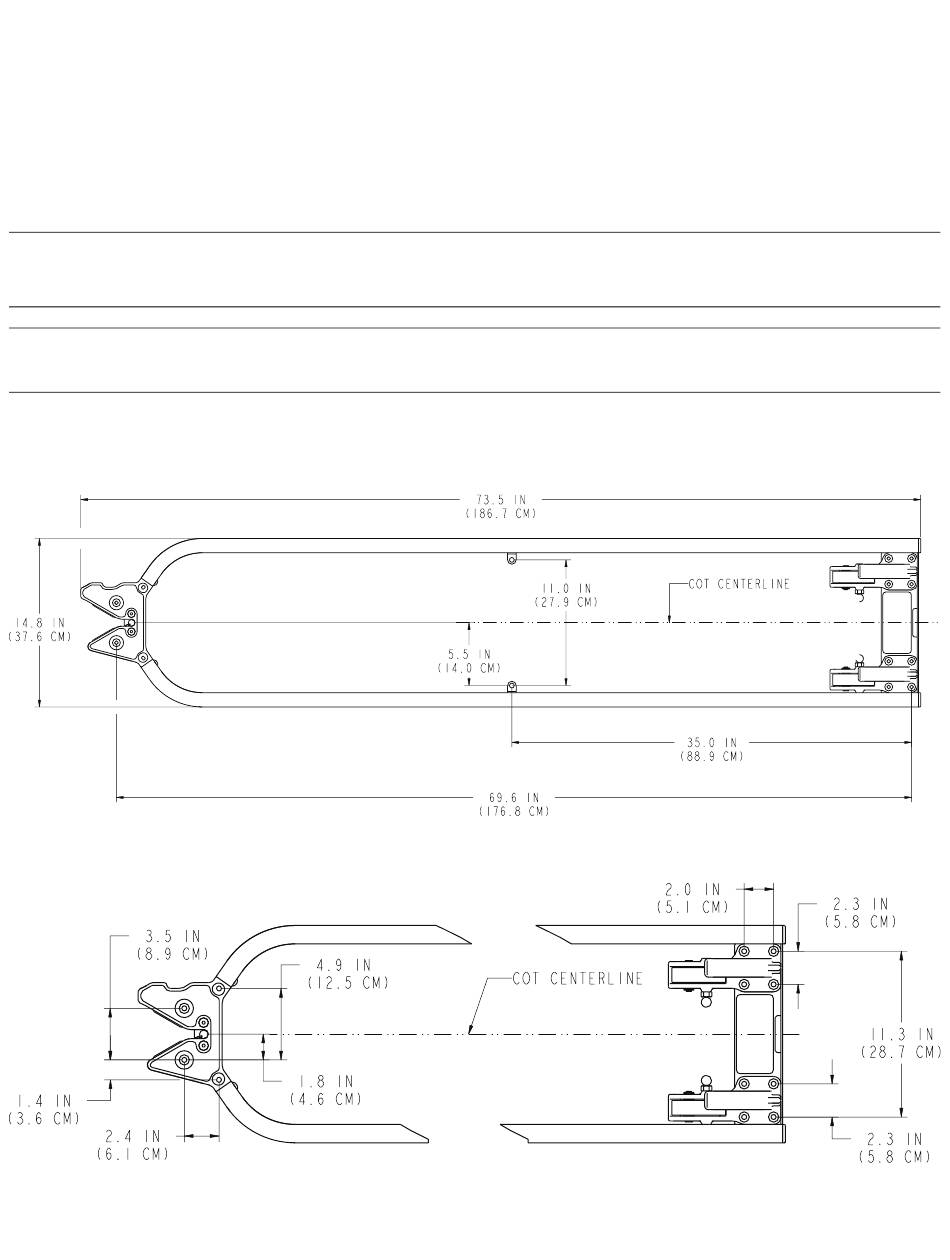

F F i i g g u u r r e e 2 2 – – M M o o d d e e l l 6 6 3 3 7 7 6 6 : : V V i i e e w w 2 2 A A
F F i i g g u u r r e e 3 3 – – M M o o d d e e l l 6 6 3 3 7 7 6 6 : : V V i i e e w w 2 2 B B
11 EN
