The slave address is the one used by the Modbus master to address the RVT through Modbus.
Baud rate, Parity, Stop bit shall match exactly the communication settings of the Modbus master which controls the
RS485 / Modbus network.
The RVT needs an IP address to be connected directly to a PC or to an Ethernet network.
This IP address may be fixed and entered manually if DHCP is disabled. The default address is 192.168.1.40.
In case the IP address is given automatically by a gateway or Ethernet LAN, set DHCP to enabled.
Some examples are given below:
Example 1: The below screen shows the default settings to connect directly to a PC (note that the PC need to be con-
figured accordingly with a fixed IP address of 192.168.1.1, Subnet mask of 255.255.255.0, DHCP disabled)
STATUS
Approved

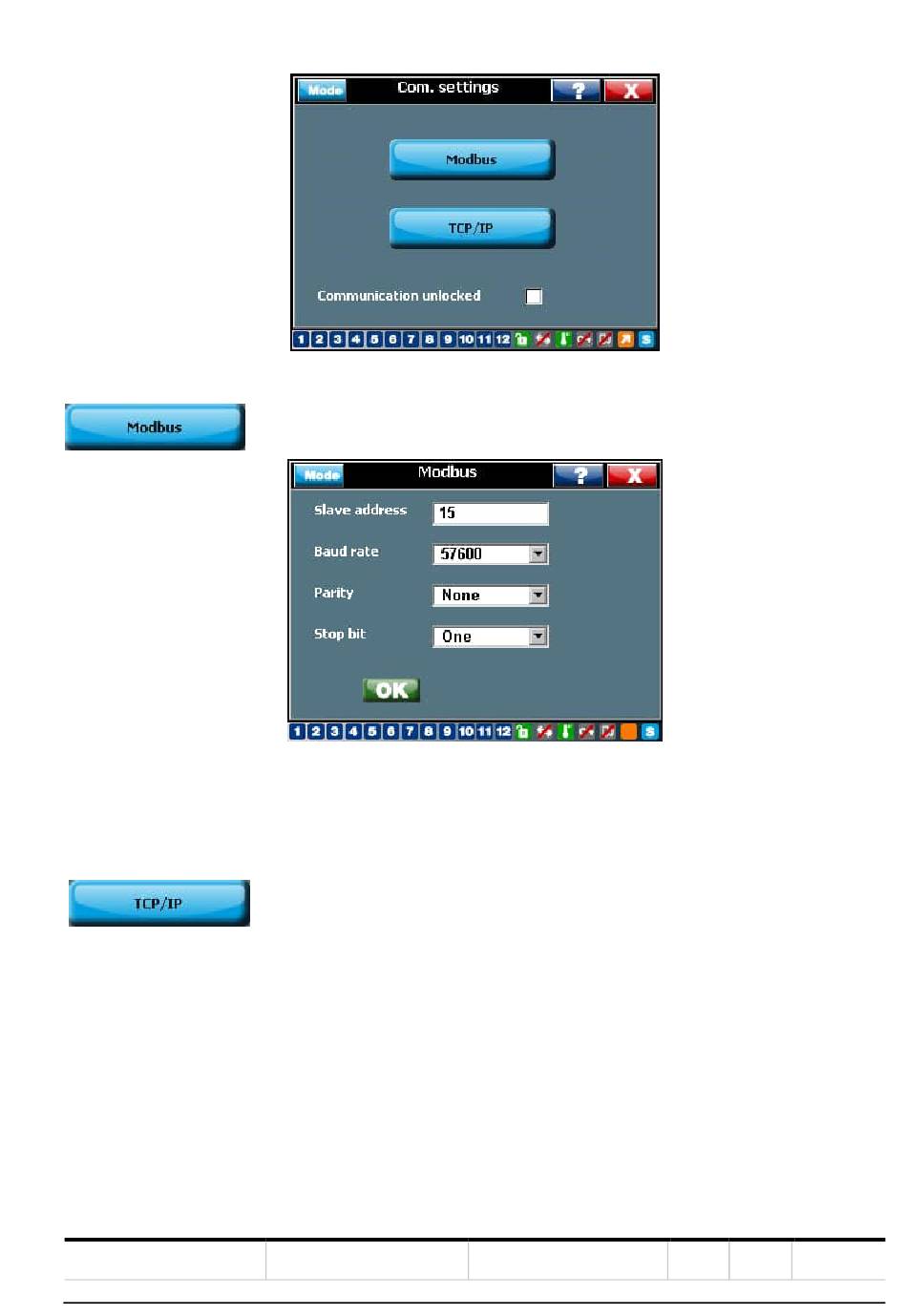

Figure 54 RVT communications protocol setting
Figure 55 RVT Modbus protocol setting
