Meter

This function offers the user a better view of three most interested measurements.
Click on the wanted item, and then click the "Select" button to insert values in the meter screen.
An example is shown below for three important measurements.
STATUS
Approved

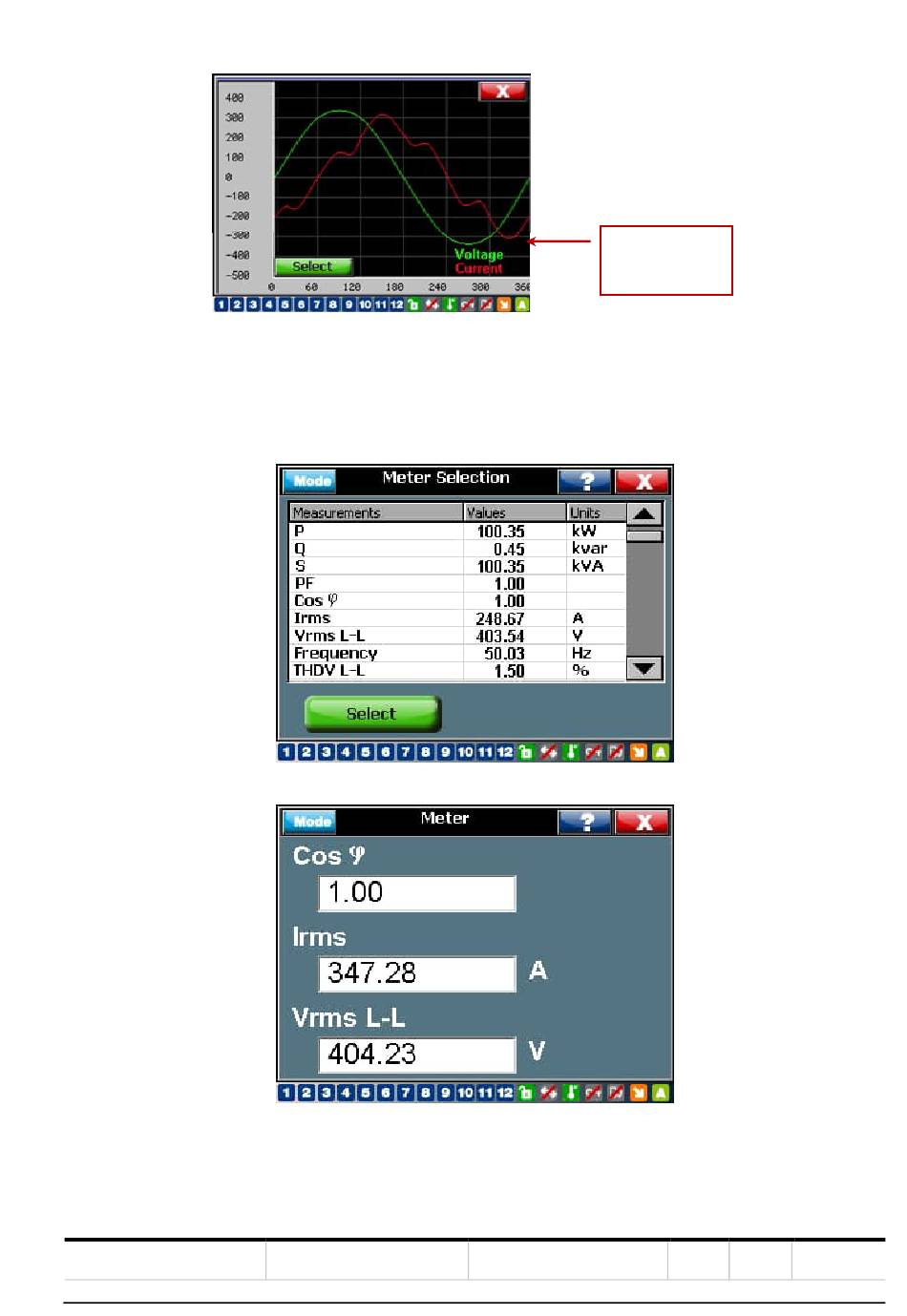

Figure 21 Voltage and current waveforms
Figure 22 Three measurements displayed in meter
