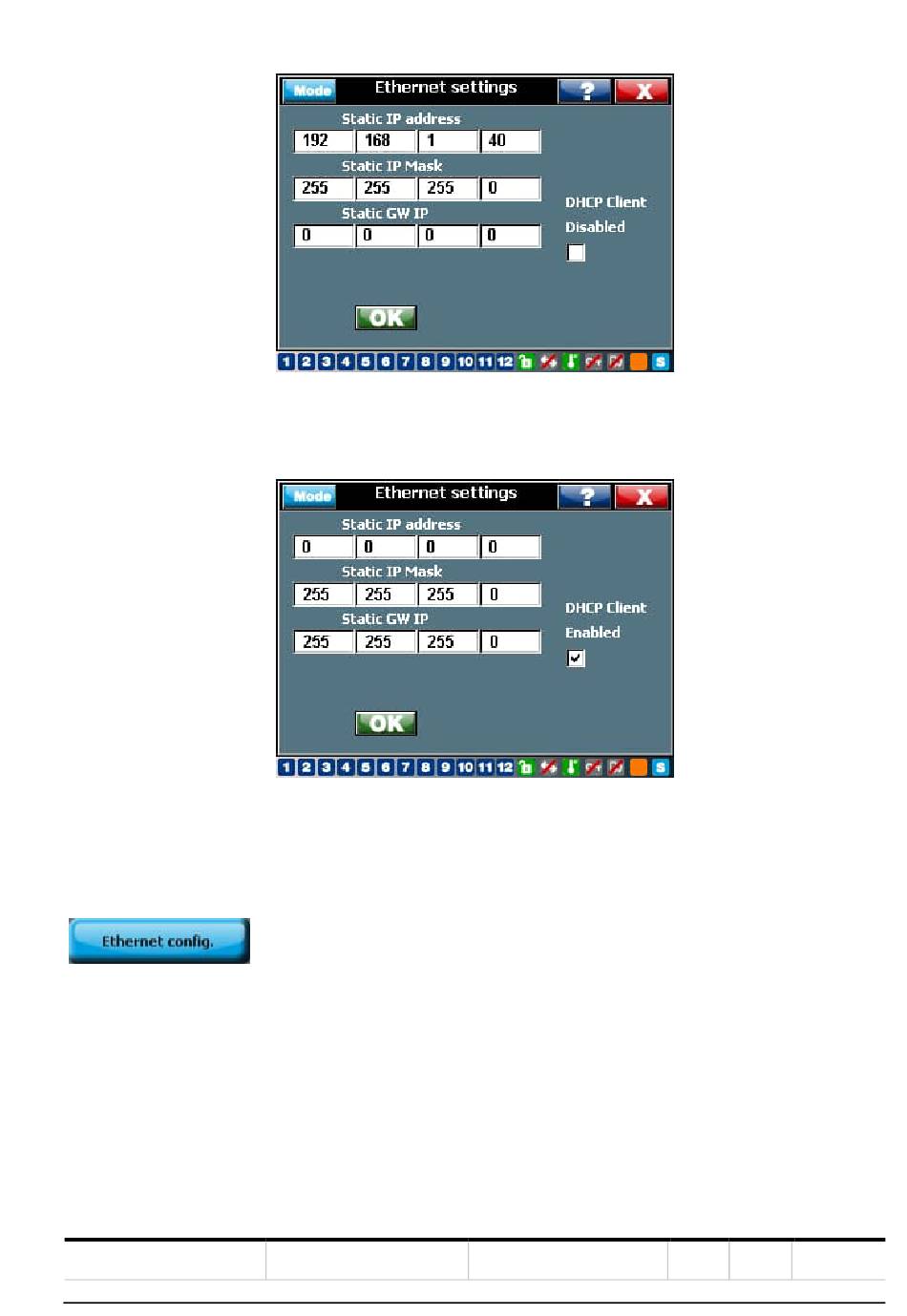

Example 2: The below screen shows the default settings to connect to an Ethernet network (note that the PC which is
also connected to the LAN has its own IP address given by the network with DHCP enabled)
Details about the communication settings can be found in the manual: 9AKK106713A9758_RVT communication
through Modbus, USB or TCPIP protocol.
Reboot the RVT to initialize it with these parameters.
4.5.2.

Ethernet configurations

This menu displays the actual RVT IP address, mask address and gateway IP address.
Depending on the DHCP status, the displayed data may be different.
The below screens give the result for the above Example 1 and 2:
Example 1: The below screen shows the actual IP address fixed with DHCP disabled.
STATUS
Approved
Figure 56 RVT TCP/IP protocol setting
SECURITY LEVEL
Public
PO WER FACTO R CON TR O LL ER RV T
DOCUMENT ID
9AKK107045A9645
REV. LANG. PAGE
D en 69/542
