Caution: An over-current protection is recommended in the PS1-PS2 connections: 6Arms fuses 10 X 38 gl
690V.
3. Easy start
3.1. What this chapter contains
This chapter describes briefly the quick start and automatic commissioning procedure for the controller.
3.2. Menu navigation
When the RVT is switched on power after the boot process (where the ABB logo is displayed) the start screen is the
first screen which will be displayed as shown in
In the center of the screen the four icons (Measurements, Settings, Bank monitoring and Communications) represent
the four root-level menu.
At the bottom of the screen, the status bar shows the active capacitor steps, RVT Lock status, warnings, the control
source of the RVT(by local touch screen or communications), switching on or off demand, operating mode: A (auto-
matic mode), M (manual mode) and S (setting mode). Detailed meaning of the status icons can be found in following
legends.
STATUS
Approved
Figure

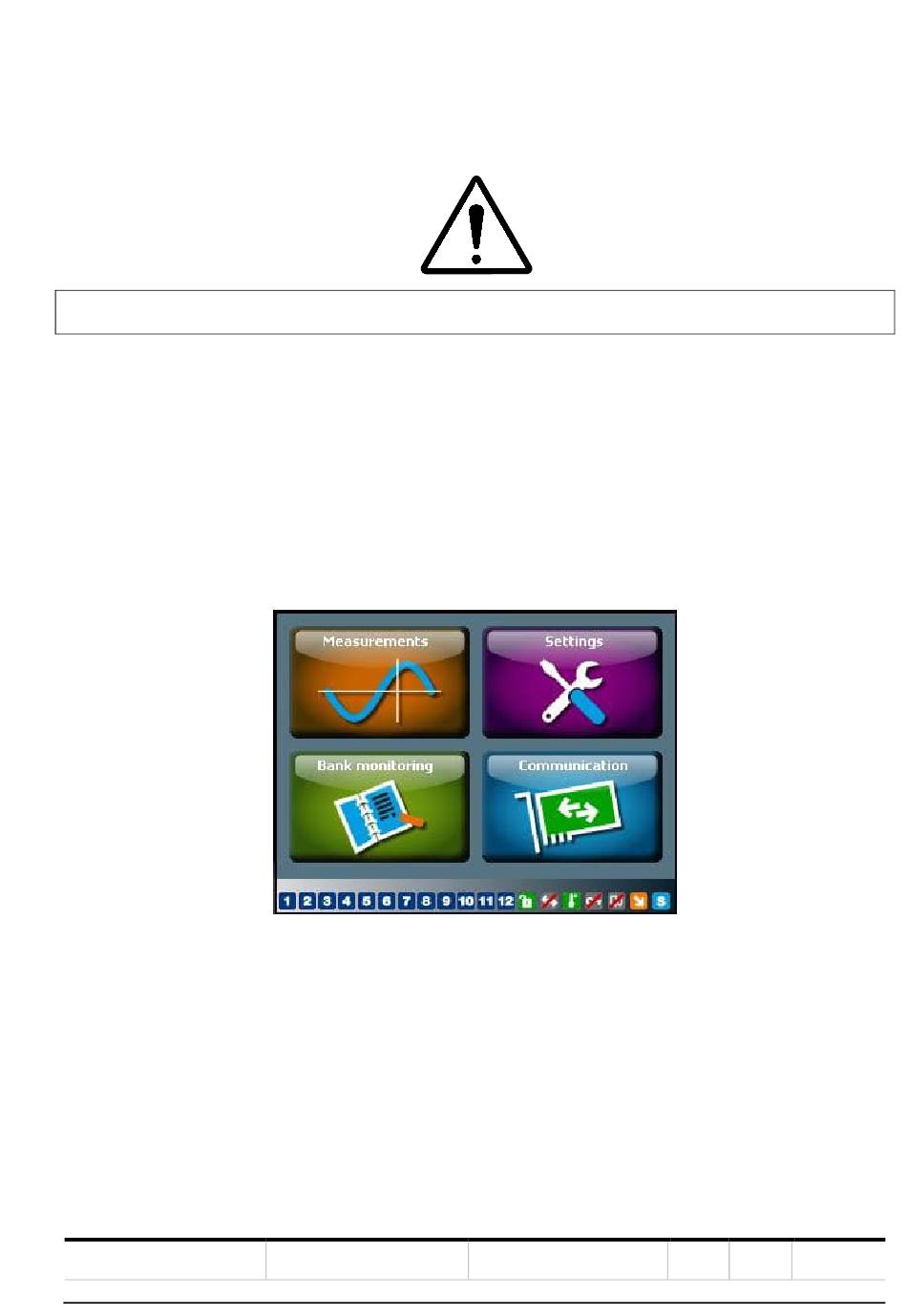

Figure 13: RVT start screen
