Step 4: Pull the Mounting Bracket backwards.
Step 5: Turn the Screw (e) into the Mounting Bracket and tighten until the RVT is secured in place.

2.3. Lead connections

Please follow instructions below to connect wires to the terminals on the rear side of the controller.
1. Push the lever of the connector backwards with a screwdriver.
2. Insert the wire (up to 2.5 mm2 /single core) in the corresponding connection hole while keeping the pressure
on the lever.
3. Release the screwdriver.
STATUS
Approved
(c)
Step 3
(d)
Step 5
Repeat steps 3 to 5 for
the bottom Mounting
Bracket.

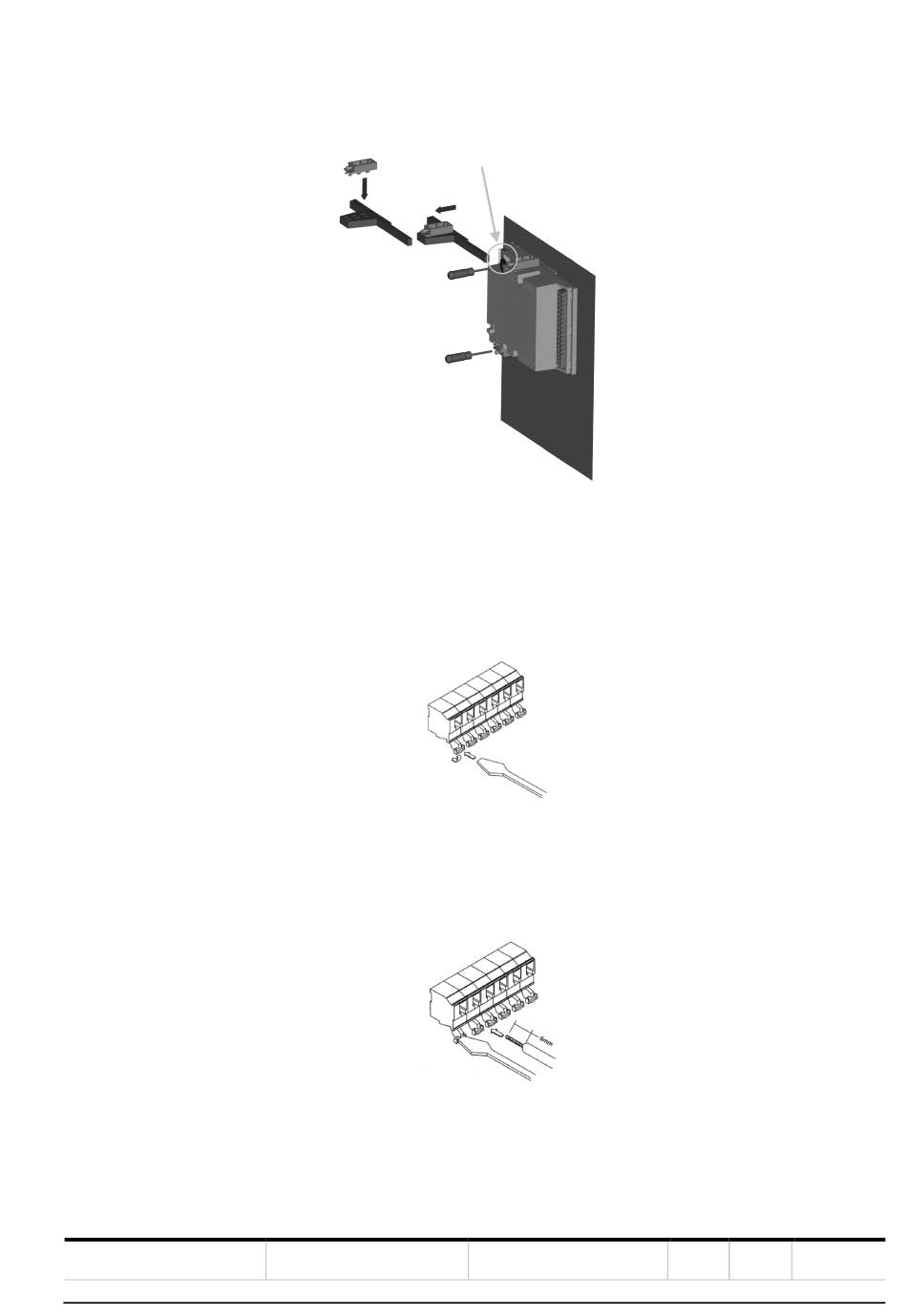

Figure 6: Mounting a RVT
Figure 7: Lead connection
Figure 8: Lead connection
