1.5. Colorful touch screen interface
A colorful QVGA 320 x 240 pixels touch screen helps the user to operate the controller more easily. All the menu navi-
gations, parameters settings are easy and intuitive thanks to the touch screen.
Detailed Menu navigation can be found in Paragraph
2. Installation
2.1. What this chapter contains
This chapter gives instructions to mount the controller on the panel and explains how to make the electrical connec-
tion to the controller. The wiring diagram is shown in section
2.2. Mounting
Please follow steps below to mount a RVT controller to a panel.
Step 1: Slide the RVT (a) perpendicularly to the Capacitor Bank Cubicle (b).
Step 2: Rotate the RVT to insert it into the Capacitor Bank Cubicle.
Note: cut out dimensions are 138x138 mm.
Step 3: Insert the Mounting Bracket (c) in the corresponding Fixation Holes (d) of the RVT.
STATUS
Approved

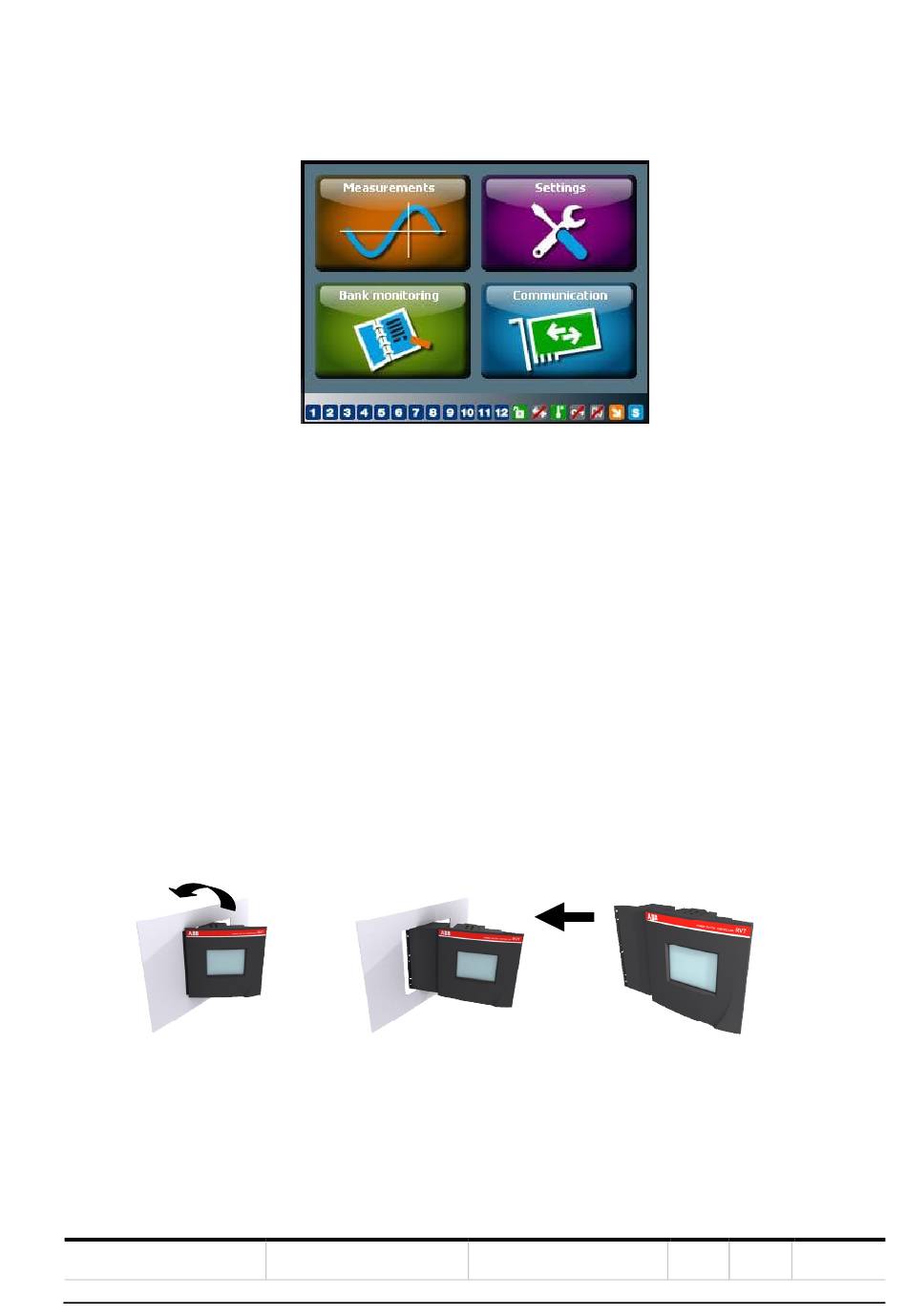

Figure 4: RVT start screen
3.2.
Step 2
(b)
Figure 5: Mounting a RVT
