Click on the check box to switch ON/OFF the corresponding relay
Before proceeding to the test functions, please make sure that:
– RVT is unlocked (description in paragraphs
– RVT is in SET mode (description in paragraph 3.2.2)
4.4.3.

Alarm logging

The alarm logging displays the last five alarm messages with a real time stamp.
STATUS
Approved

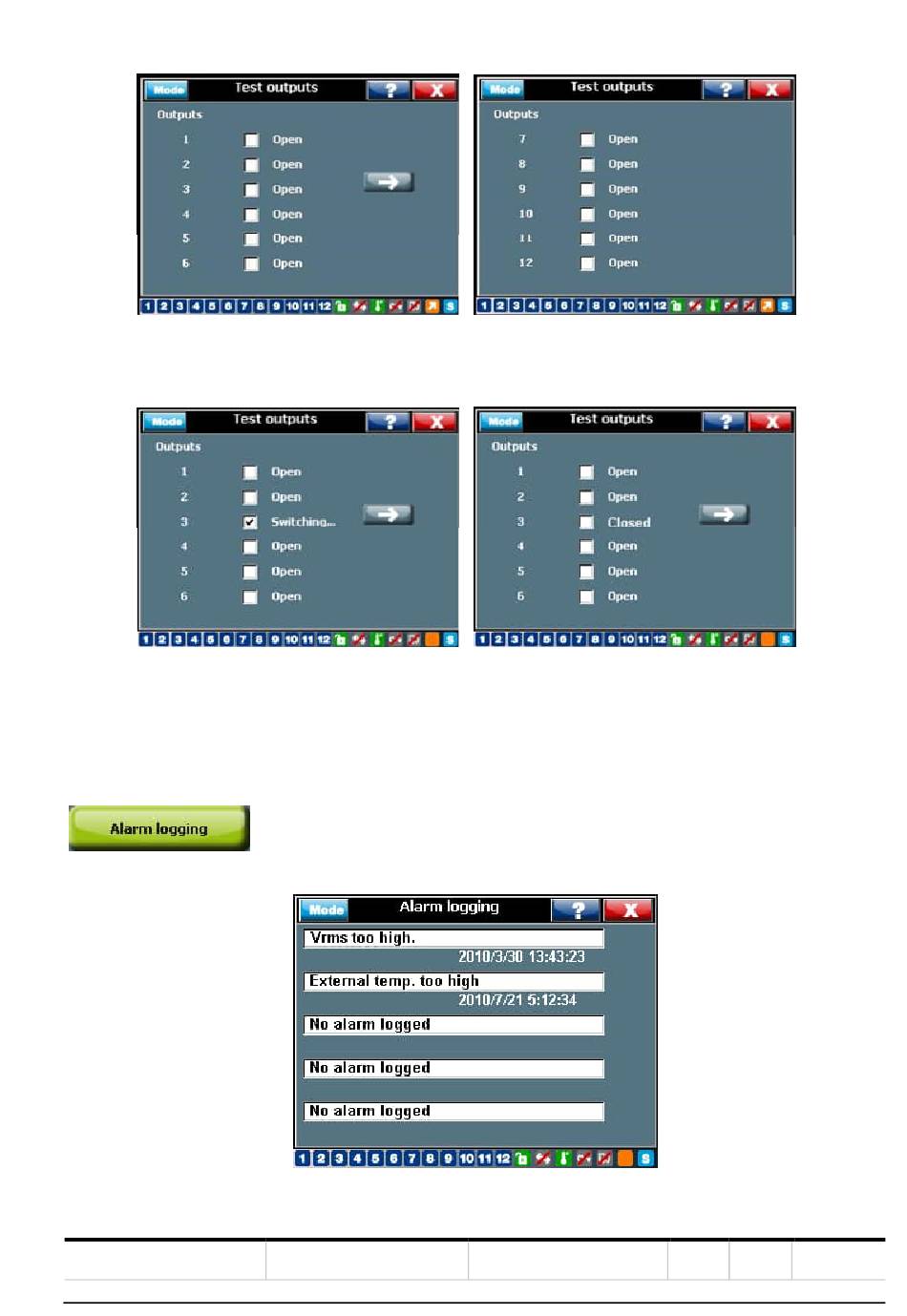

Figure 49 Bank monitoring test outputs
3.2.4 and 4.3.1.1)
Figure 50 Bank monitoring alarm logging
SECURITY LEVEL
Public
PO WER FACTO R CON TR O LL ER RV T
DOCUMENT ID
9AKK107045A9645
REV. LANG. PAGE
D en 62/542
